Brief Procedures (MSO70000/C Series, DSA/DPO70000B/C Series, and DPO7000 Series)
Verify All Ana
log Input
Channels
Equipment required Prerequisites
< 4 GHz models: On e precision 50 Ω coaxial cable (Item 4)
< 4 GHz models: One BNC to Minigrabber adapter (item 18)
≥ 4 GHz models:
One SMA cable (item 21)
≥ 4 GHz models: One adapter (item 19)
None
1. Initialize t he instrument: Push the front-panel Default Setup button.
2. Hook up the signal source: Connect the equipment as shown in the following
figure to th
e channel input you want to test (beginning with Ch 1).

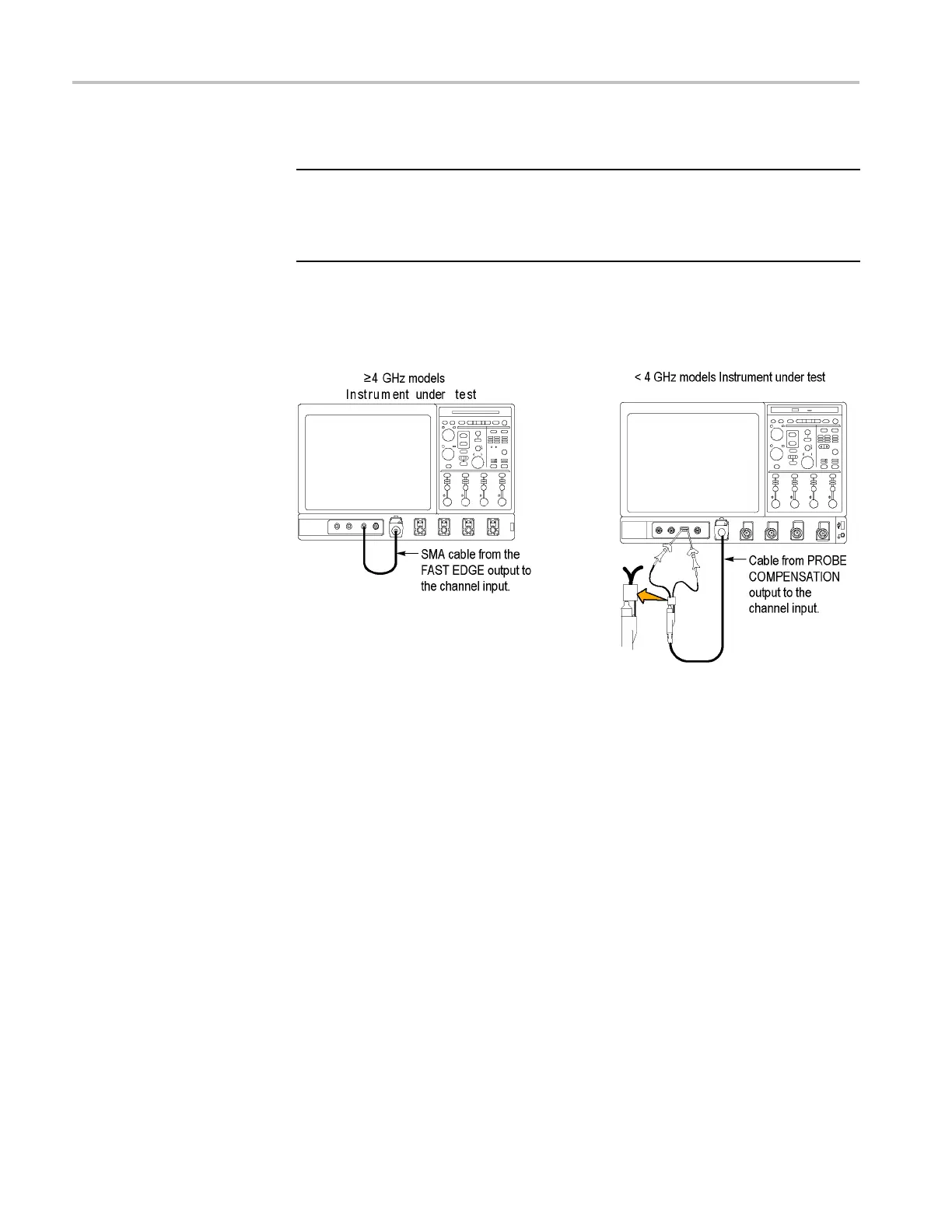

Figure 3-2: U niversal test hookup for functional tests - Ch 1 shown
3–6 MSO70000/C, DSA70000B/C, DPO7000B/C, DPO7000, MSO5000, DPO5000 Series
