c. Hook up the test
-signal source:
Connect the signal output of the generator to a power splitter. Connect
one output of t
he power splitter to Ch 1 as shown in the following
figure. Connect the other output of the power splitter to the Aux Input
as in the following figure.

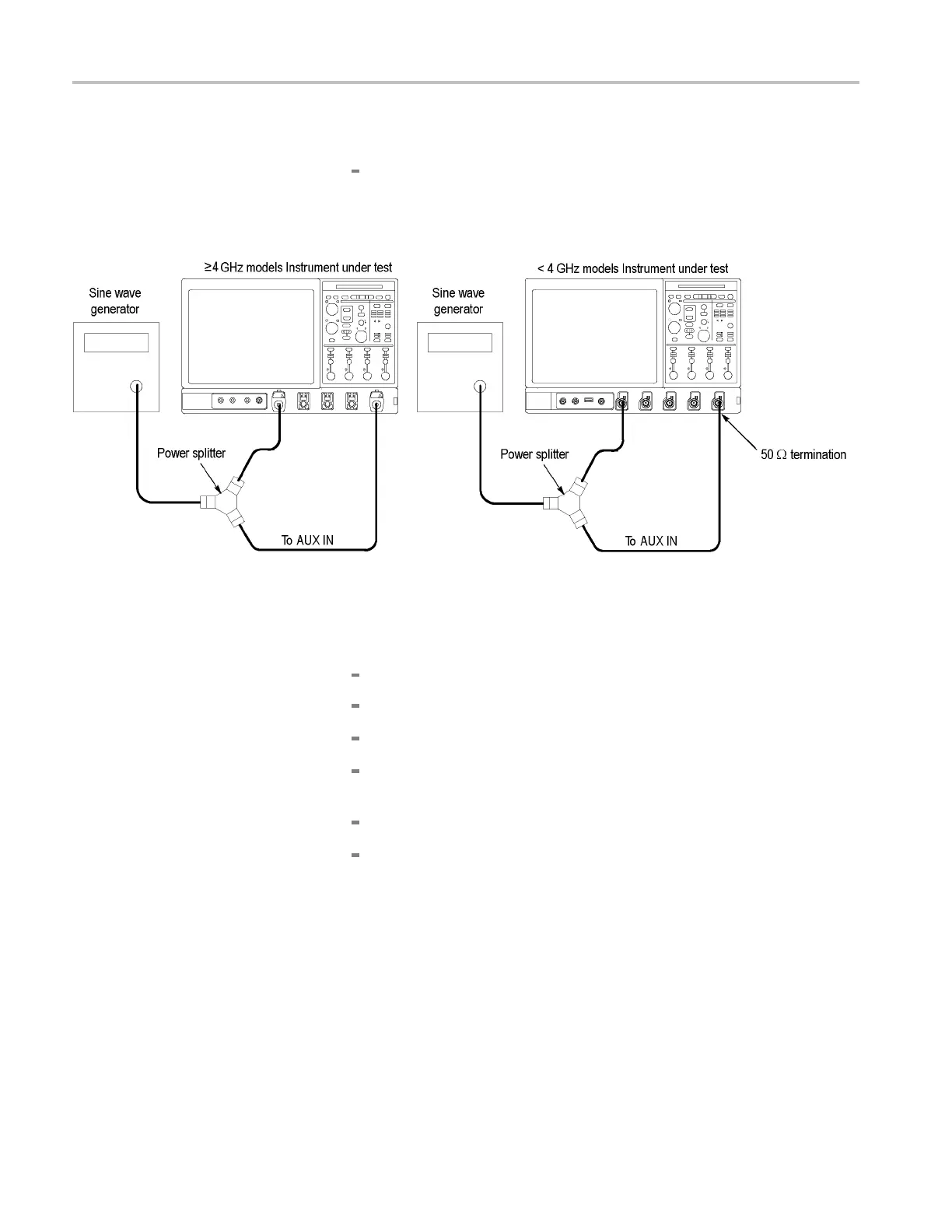

Figure 3-25: Initial test hookup
2. Confirm the trigger system is within sensitivity limits (50 MHz):
a. Displ
ay the test signal:
Set the generator frequen cy to 50 MHz.
From the button bar, touch Measure.
Touch Setup Ref Levs;thentouchtheMin-Max button.
Touch the Setup button and select the Ampl tab; then touch the
Amplitude button.
Touch the X (close) button.
Press Push-Set 50%.
