Bus setups Select the SPI bus bit order
Select the SPI bus bit order
NOTE. The SPI Bus Bit Order option is available only on instruments with option SR-EMBD.
From the Bus Setup window, select the Select tab and the SPI Serial bus type.
To use
Scroll through the Bus list and select the SPI bus to configure.

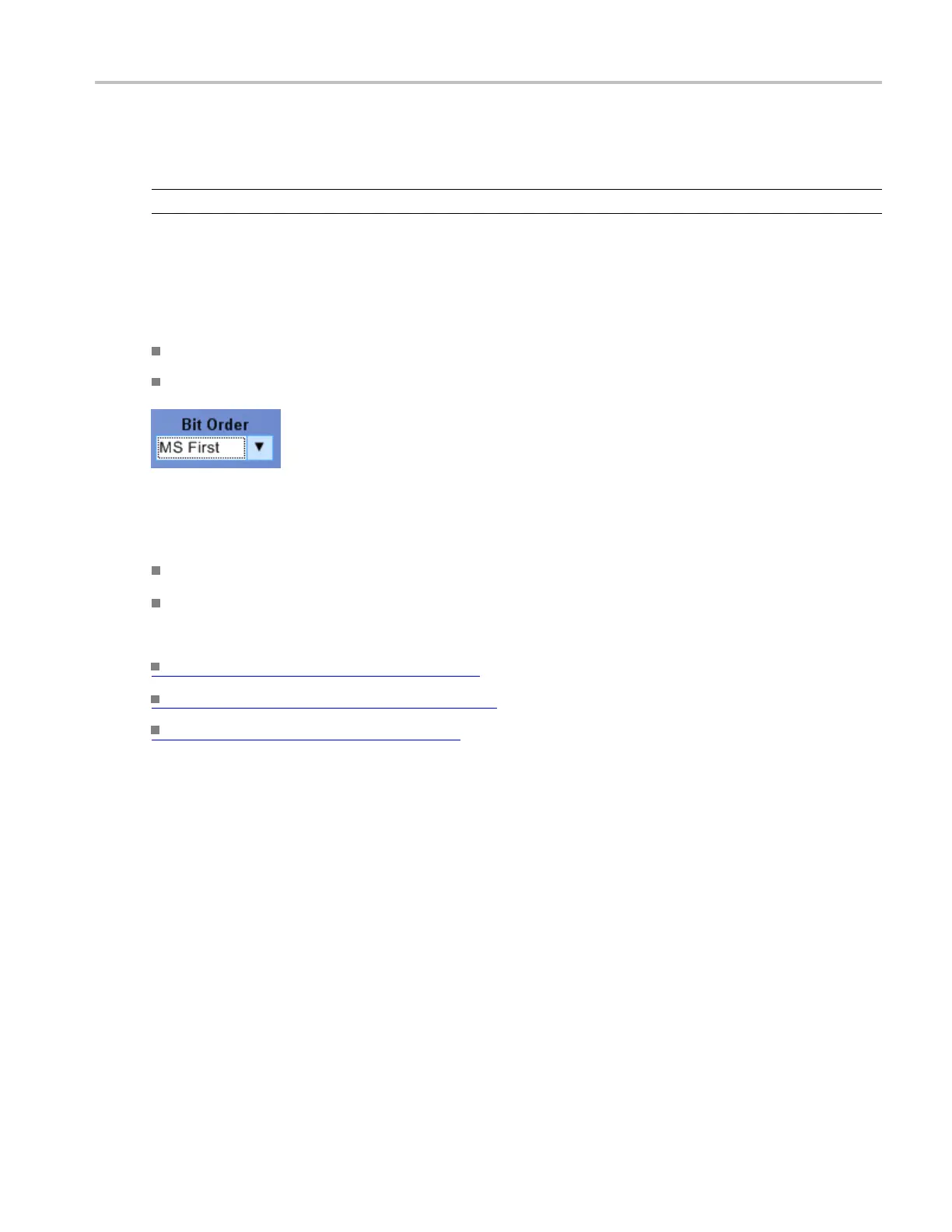

Click the Bit Order box and select the direction from the drop-down list: MS First or LS First.
Behavior
MS First causes the instrument to decode the data sequence from the MSB to the LSB.
LS Fir
st causes the instrument to decode the data sequence from the LSB to the MSB.
What do you want to do next?
Learn more about bus setups. (see page 95)
Learn about bus configuration. (see page 148)
Learn about digital setups. (see page 87)
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 139
