Tektronix MSO70000C/DX User Manual

Analyzing wavef
orms
Using m ask testing
Serial Communications Mask Testing (Option MTM or M TH) allows you to compare your signal to a predefined template
or mask. For the signal to pass the test, it must fall outside the segments defined by the mask. Generally, standards
committees such as ANSI define the m asks. To perform mask testing do the following:

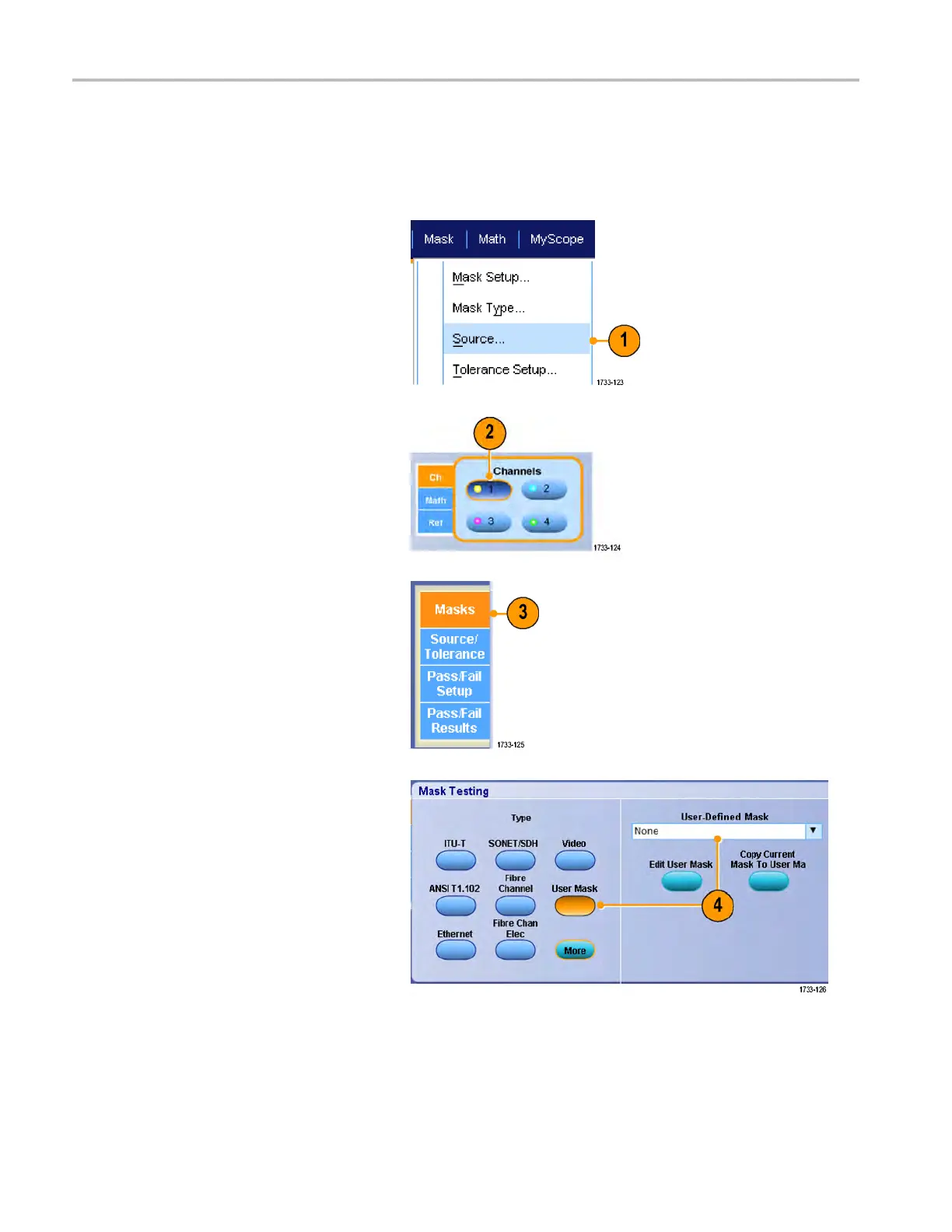

1. Select Mask > Source....
2. Select the
signal source.
3. Click the Masks tab.
4. Selec
t the Type and standard.
138 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO /DP O5000 Series U ser Manual

Tektronix MSO70000C/DX Specifications

General

Bandwidth	up to 33 GHz
Sample Rate	up to 100 GS/s
Input Coupling	AC, DC, GND
Input Impedance	50 Ω or 1 MΩ
Trigger Types/Modes	Edge, Pulse Width, Runt, Timeout
Vertical Resolution	8 bits
Interface	USB, LAN, GPIB, HDMI
Operating Temperature	0 °C to 50 °C
