Tektronix MSO70000C/DX

Acquisition
Setting up digital signal input
Use Digital setup menus to set up the digital channels to a cquire signals. Digital channels are available only on
MSO70000C/DX and MSO5000 Series instruments, DPO5000 Series instruments with option MSOE installed, and
DPO70000DX instruments w ith option MSOU installed.

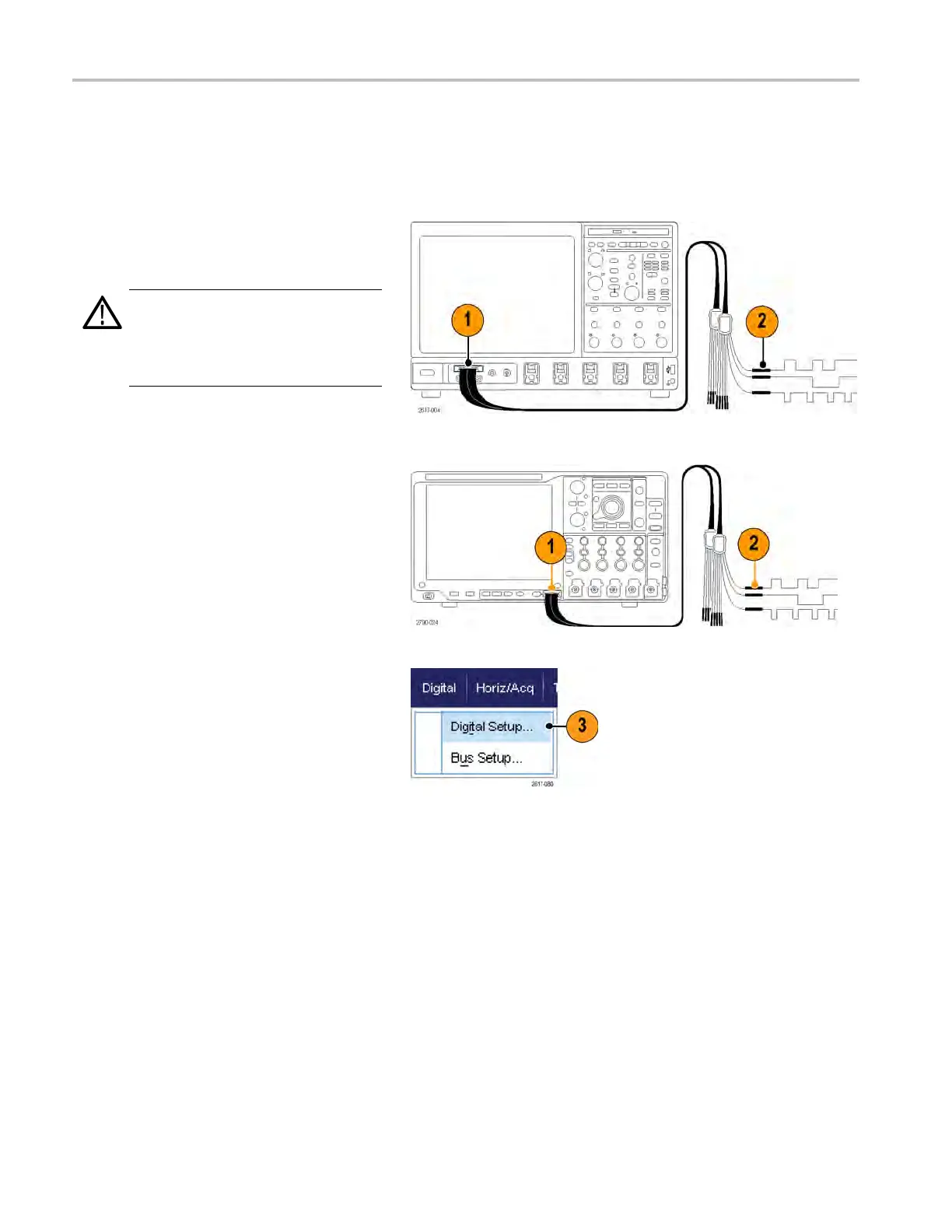

1. Connect the logic probe to the instrument.
2. Connect the probe to the input signal
sources.
CAUTION. To prevent damage to the
instrument always wear an antistatic wrist
strap when making connections to the
instrument and observe the maximum input
voltage ratings for input connectors.
MSO70000C
/DX and DPO70000DX Series
MSO5000 and DPO5000 Series
3. Set up digital channels and buses using
the Digital menus.
(See page 51, Setting up digital channels.)
and (See page 53, Setting up a bus.)
50 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO /DP O5000 Series U ser Manual
