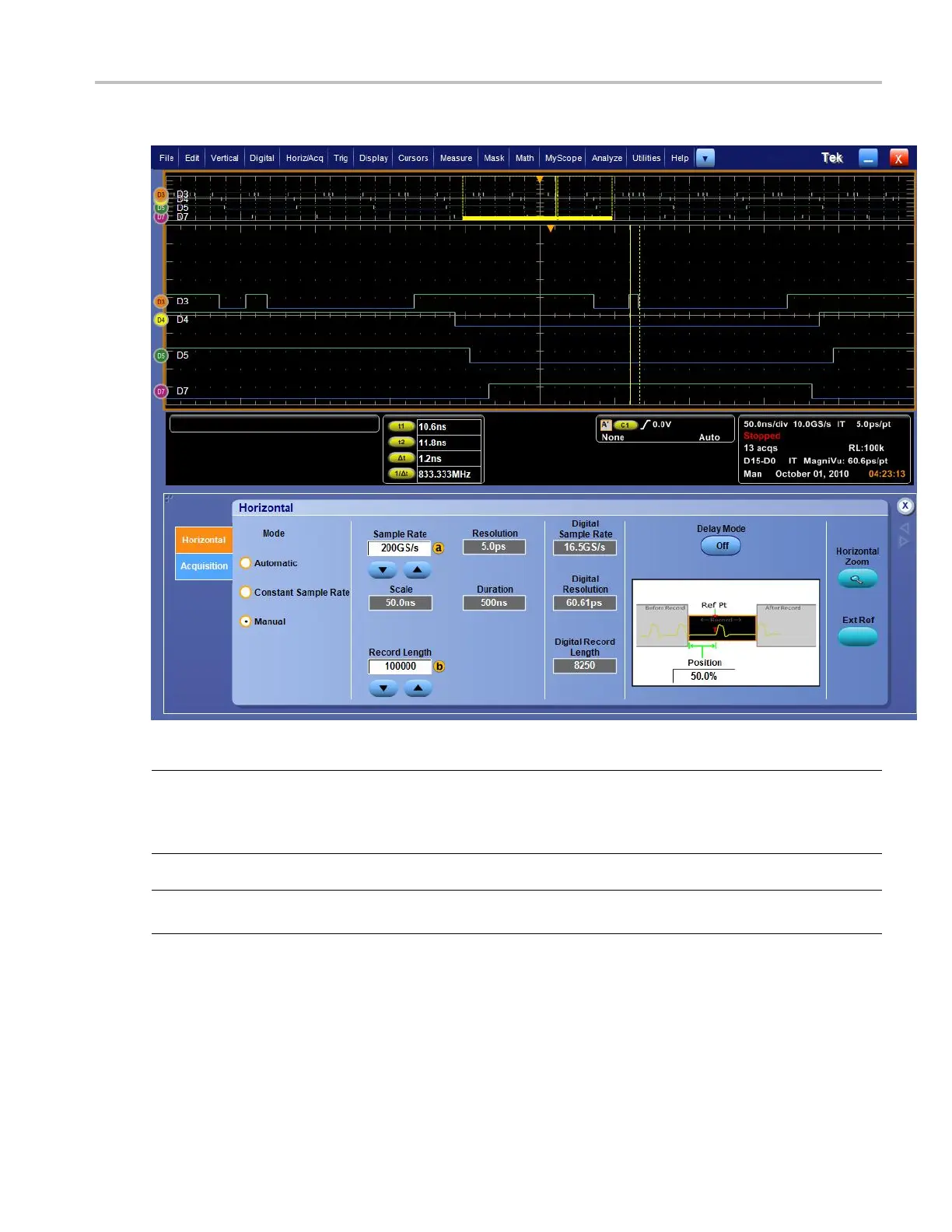

MagniVu setup Using MagniVu

With MagniVu option enabled (the Sample Rate and Resolution values set):

NOTE. The MagniVu record must always contain the trigger. If the trigger point is moved prior to the

display region using Horizontal Delay, then the MagniVu record will not be available. In most of these

cases, you can ﬁnd the digital record by looking for the digital signal in the upper o verview and panning

accordingly.

NOTE. You should turn on MagniVu when light gray shading is displayed to indicate the uncertainty of the

edge position. If the shading is not displayed, you do not need to use MagniVu.

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 161
