Controls and connectors Rear and side panel connectors

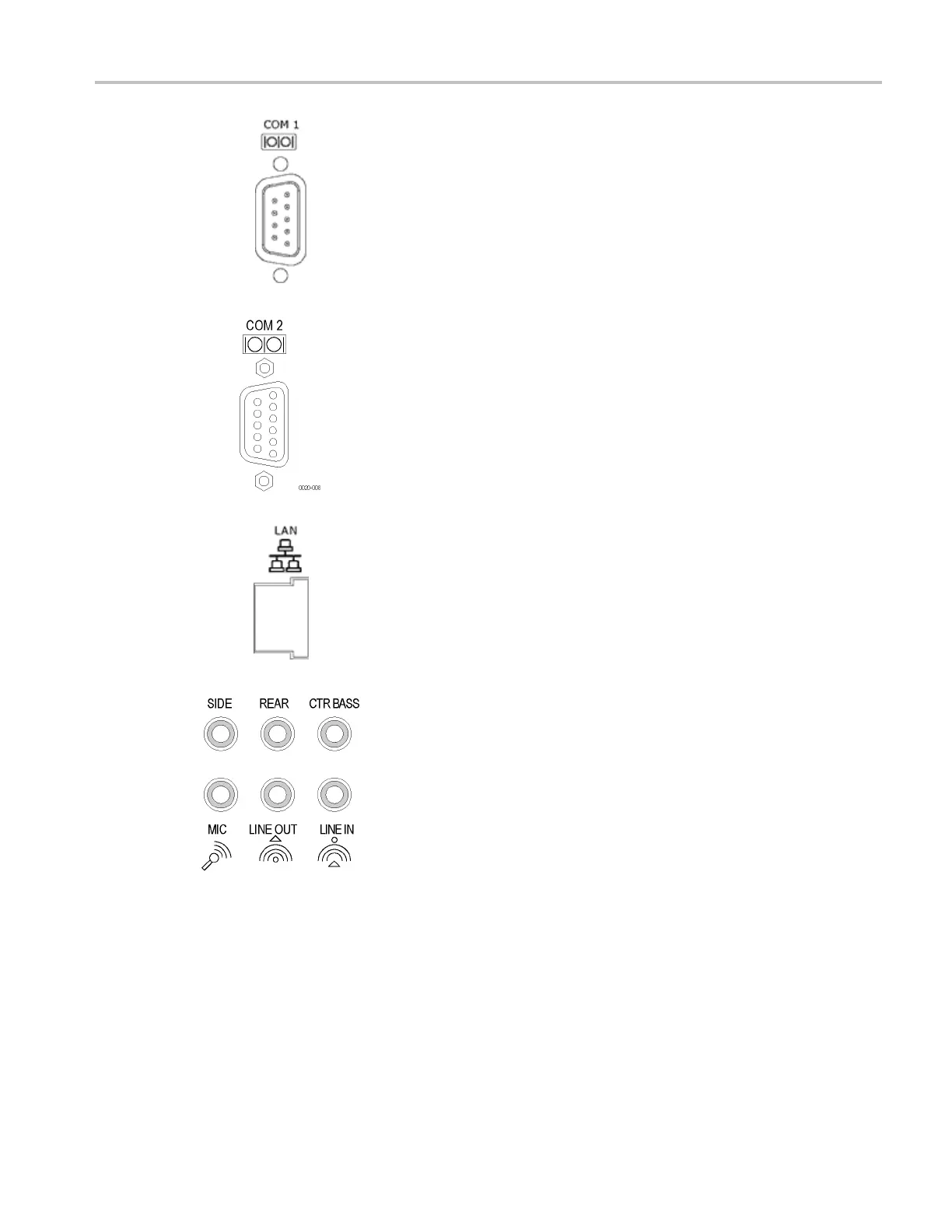

Use the COM 1 se

rial port to connect to other devices through the serial

port.

NOTE. The COM1 port is available on all instruments except

MSO/DPO5000 S

eries instruments.

Use the COM 2 serial port to connect to other devices through the serial

port.

NOTE. The COM2 port is available on all instruments except

MSO/DPO5000 Series instruments.

Use the RJ-45 connector to connect the instrument to a network.

Use the Audio ports for stereo microphone input and stereo line output.

For <

4 GHz instruments:

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 67
