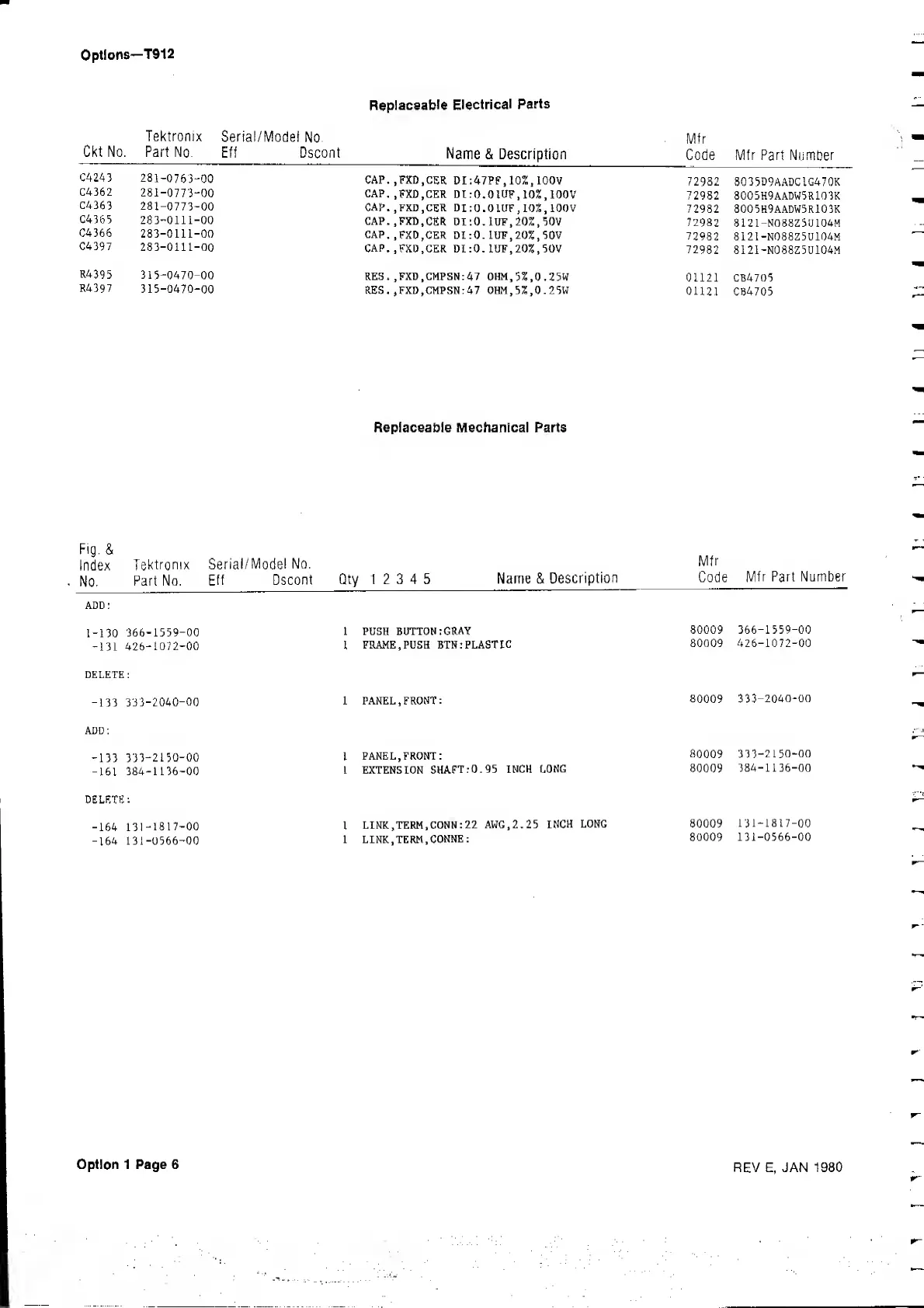

Tektronix T912 - Page 87

Options—
T912
Replaceable
Electrical
Parts
Tektronix
Serial/ Model
No.
Mtr
Ckt No. Part
No.
Eff Dscont
Name
& Description
Code
CA243 281-0763-00
CAP. ,FXD,CER
DI:47PF,10%,100V
72982
C4362
281-0773-00
CAP,
,FXD,CER
DI:O.OIUF,10^,100V
72982
C4363
231-0773-00
CAP. ,FXD,CER
DI:0.01UF,10X,100V
72982
C4365 283-0111-00
CAP.
,FXD,CER
DI:0.1UF,20%,50V
72982
C4366 283-0111-00
CAP.
.FXO.CER DI;0. lUF,2O%,50V
72982
C4397 283-0111-00
CAP,
,FXD,CER DI:0. 1UF,20%,50V
72982
R4395
315-0470-00
RES. ,FXD,CMPSN;47
OHM,5%,0.25W
01121
R4397
315-0470-00
RES. ,FXD,CMPSN:47 OHM,5%,0.25W
01121
Replaceable Mechanical Parts
Fig,
&
Index
Tektronix
Serial/Model
No.
No.
Part No.
Eff Dsconf
Qty 1 2 3 4 5
ADD:
Mfr
Name &
Description
Code
1-130
366-1559-00
1 PUSH
BUTTON:GRAY
80009
-131
426-1072-00 1
FRAME, PUSH
BTN:PLASTIC
80009
DELETE
:
-133
333-2040-00
1 PANEL, FRONT:
80009
ADD:
-133
333-2150-00
I
PANEL, FRONT:
80009
-161
384-1136-00
1 EXTENSION
SHAFT:0.95
INCH
LONG
80009
DELETE
:
-164
131-1817-00
1
LINK, TERM, CONN:22
AWG,2.25
INCH
LONG 80009
-164
131-0566-00
1 LINK, TERM.
CONNE:
80009
Mfr
Part Number
8035D9AADC1G470K
3005H9AADW5R103K
8005H9AADW5R103K
8121-N088Z5U104M
8121-N088Z5U104M
8121-N088Z5U104M
CB4705
CB4705
Mfr Part Number
366-1559-00
426-1072-00
333-2040-00
333-2150-00
384-1136-00
131-1817-00
131-0566-00
Option 1 Page 6
REV E, JAN 1980
