Push menu button Select menu option Select setting
Measure Source Channel under test
Measurements Peak-Peak

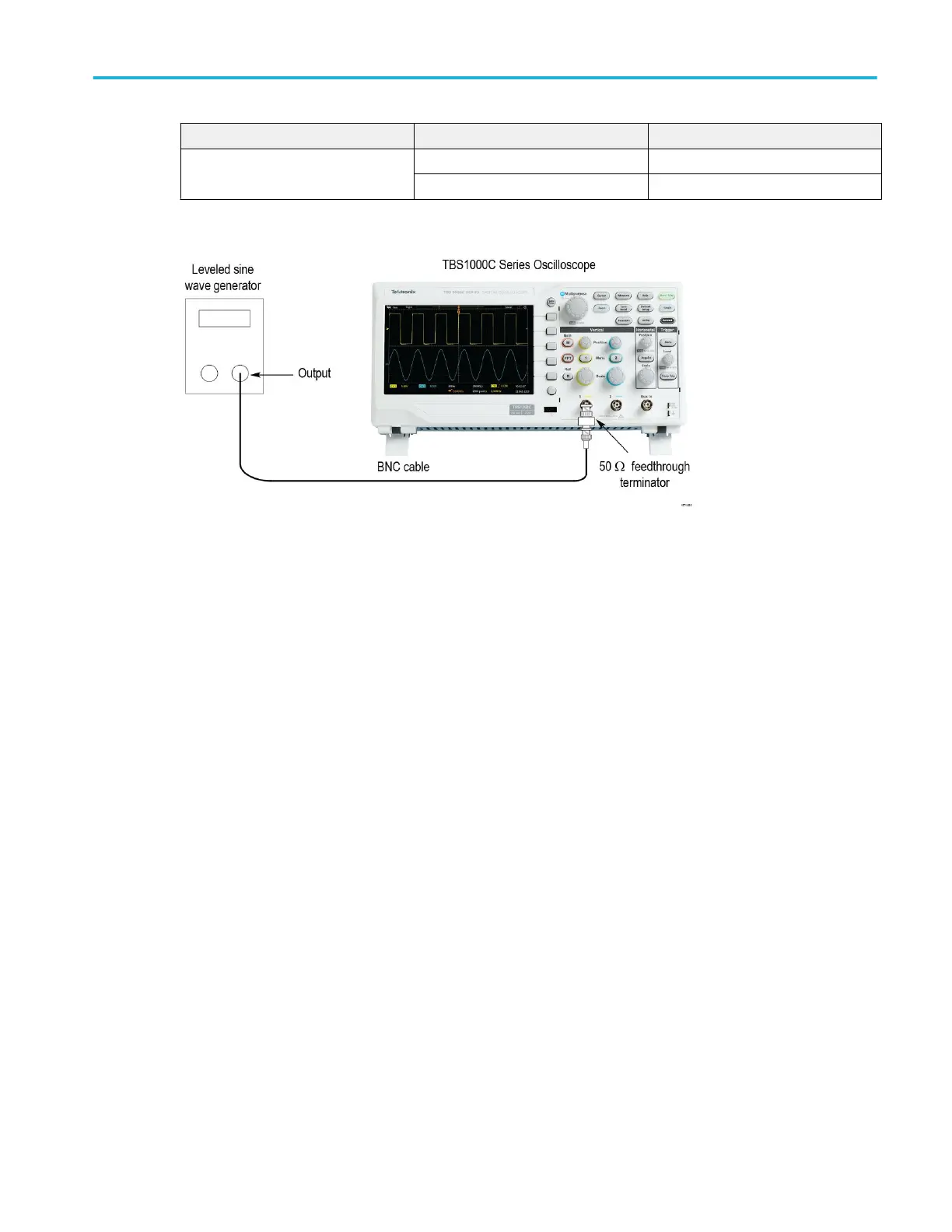

2. Connect the oscilloscope channel under test to the leveled sine wave generator as shown in the following figure:
3. Set the oscilloscope Vertical Scale (volts/division) to 500 mV/div.
4. Set the oscilloscope Horizontal Scale (seconds/division) to 10 μs/div.
5. Set the leveled sine wave generator frequency to 50 kHz.
6. Set the leveled sine wave generator output level so the peak-to-peak measurement is between 2.98 V and 3.02 V.
7. Set the leveled sine wave generator frequency to:
■
200 MHz if you are checking a TBS1202C
■
100 MHz if you are checking a TBS1102C
■
70 MHz if you are checking a TBS1072C
■
50 MHz if you are checking a TBS1052C
8. Set the oscilloscope Horizontal Scale (seconds/division) to 10 ns/div.
9. Check that the peak-to-peak measurement is ≥ 2.12 V.
10. Disconnect the test setup.
11. Repeat steps 1 through 10 for all input channels.
Check sample rate accuracy and delay time accuracy
This test checks the sample rate and delay time accuracy (time base).
1. Set up the oscilloscope using the following table:
Performance verification
TBS1000C Series Specification and Performance Verification 17
