Tektronix TBS1052C User Manual

Data verification
To verify data, set the spreadsheet to present a line graph of columns D, E, and F. Verify that no error values (the blue line in the
center) go above the yellow line (upper line), or below the purple line (lower line). For calculations involved in this example, refer
to the data in the previous table (see step 1).

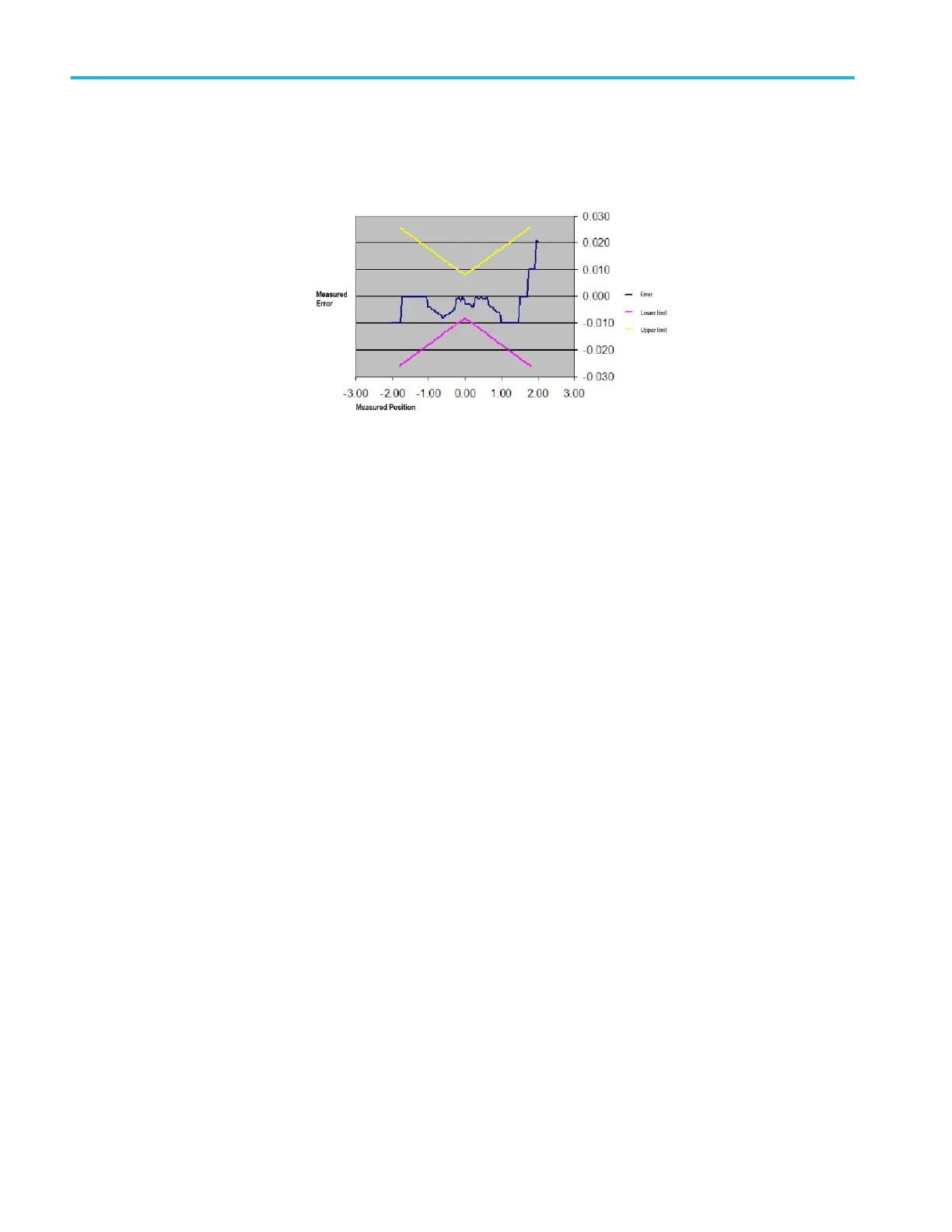

Figure 1: Example of a line graph for the Vertical Position Accuracy test
Performance verification
24 TBS1000C Series Specification and Performance Verification
