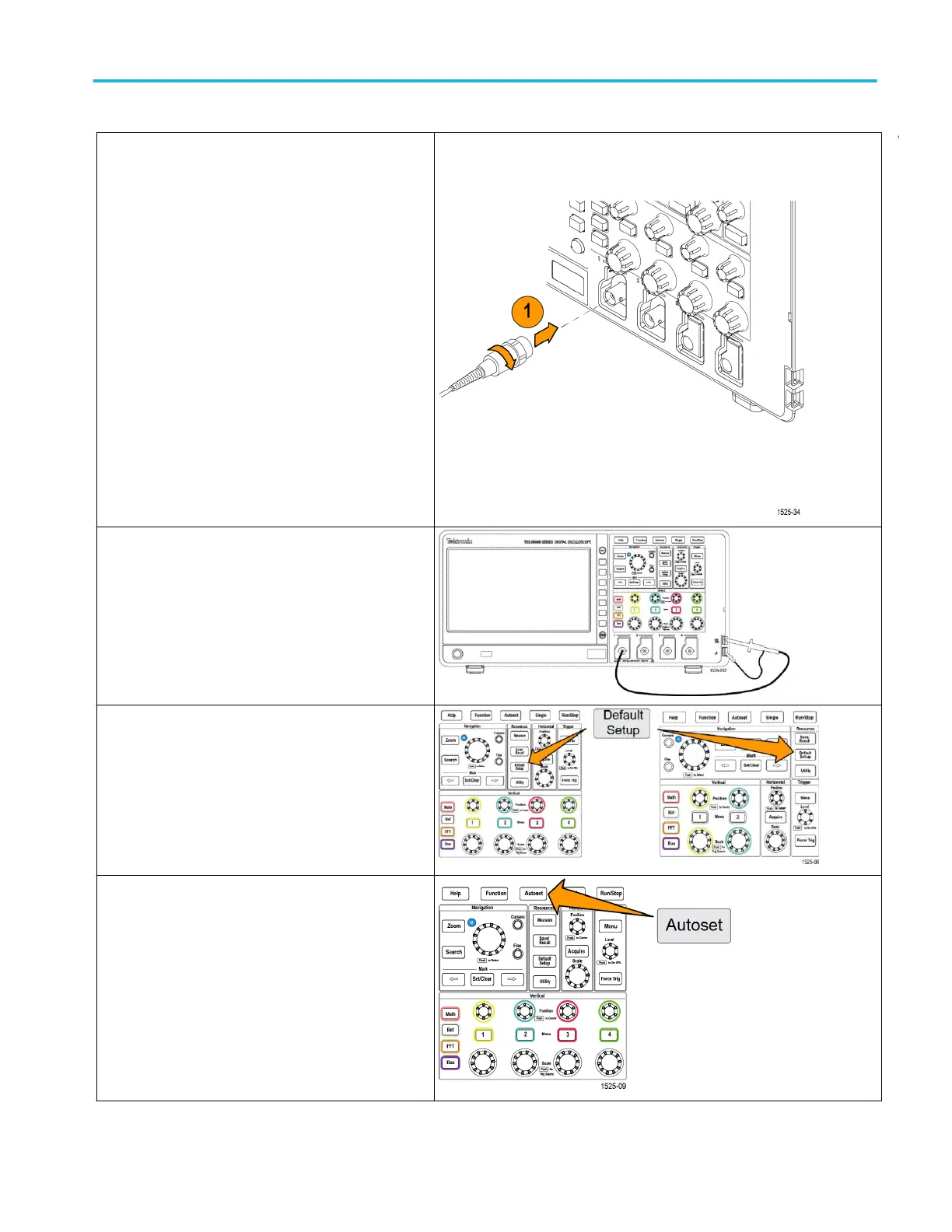

Connect a probe to channel 1.

Connect the probe tip and ground lead to the PROBE

COMP connectors on the oscilloscope front panel. The

probe tip connects to the 5 V connector, and the ground

clip connects to the ground connector.

Push Default Setup. Default Setup returns the

oscilloscope settings to factory default values. See The

default oscilloscope settings Default Setup on page 194.

Push Autoset.

Getting acquainted with the oscilloscope

TBS2000B Series Oscilloscopes User Manual 25
