Inverting the input signal
Use this procedure to invert (flip vertically) the signal. A typical reason to invert
a signal is to use the inverted signal to create a math waveform.

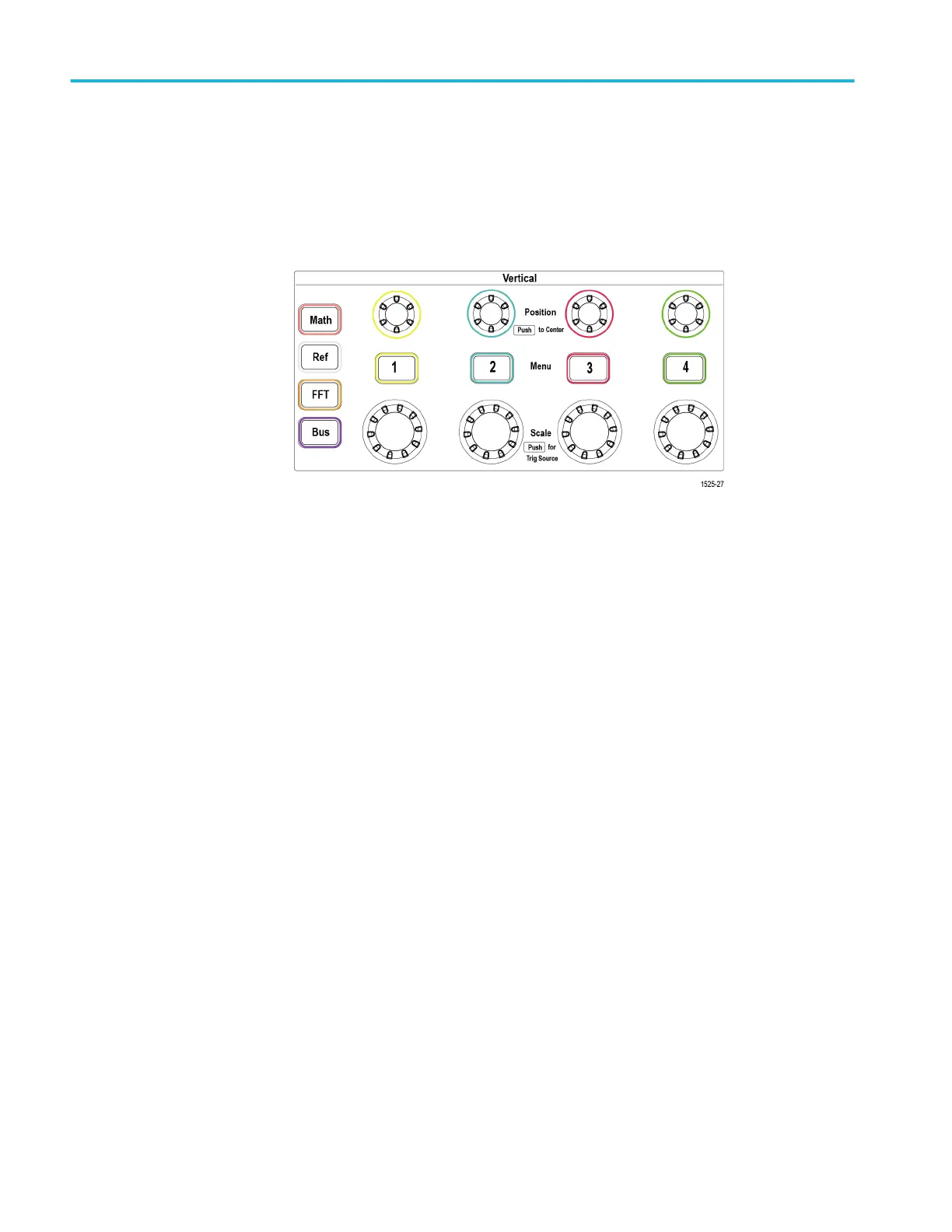

1. Push the Vertical Menu button for the channel input that you want to set.
2. Push the Invert side-menu button to toggle between Off for normal operation
and On to invert the polarity of the signal in the preamplifier.
