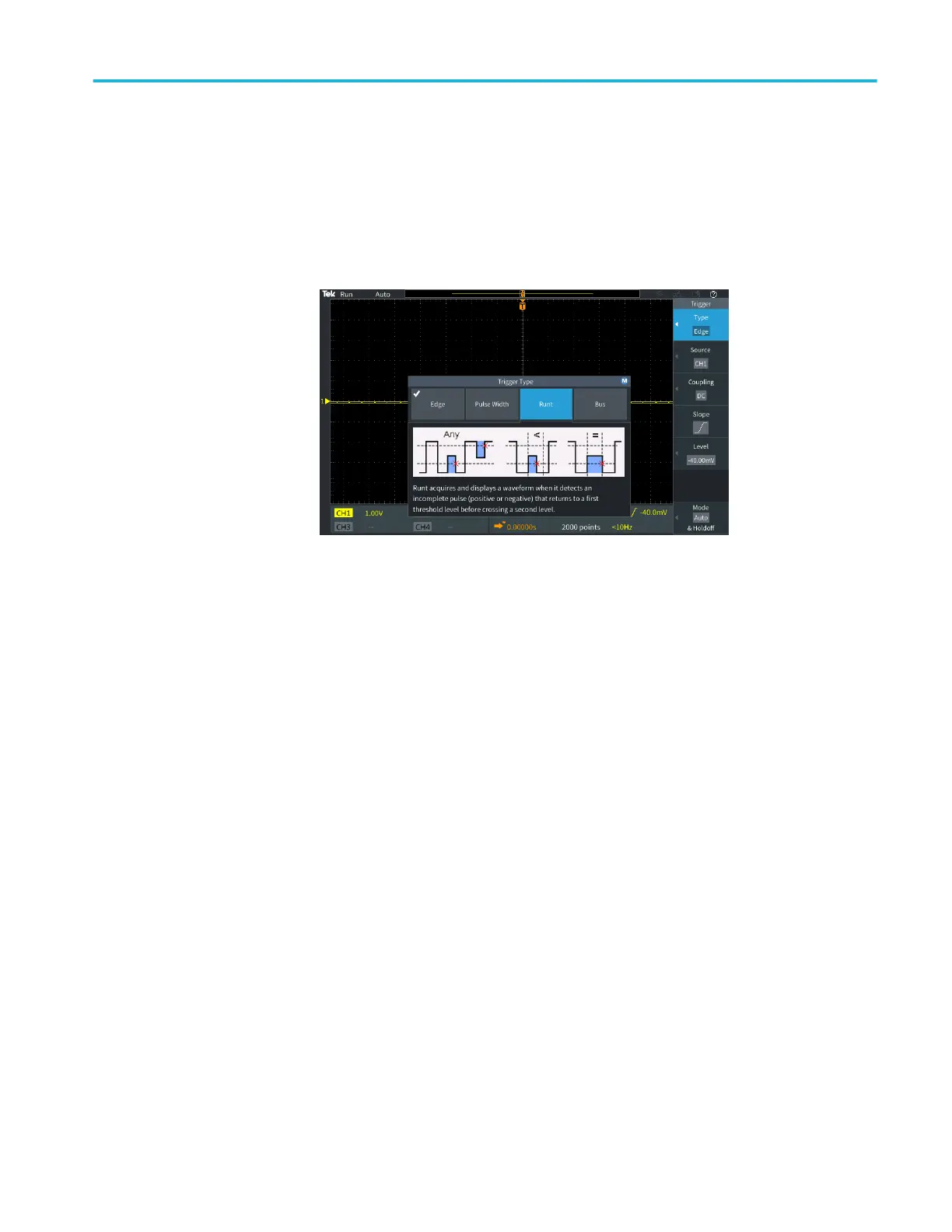

Getting on-screen help for settings - Help Everywhere

Help Everywhere is a mode that displays graphics and short text descriptions

when you access the menus for most oscilloscope settings. This is very useful for

when you are first learning the functions of oscilloscope controls.
