Installing new firmware on the oscilloscope
Tektronix releases new oscilloscope firmware to improve existing functions or
add new functions. Complete the following steps to install new firmware in the
oscilloscope.
1. Go to http://tek.com.
2. Click Downloads. In the Downloads menu, select DOWNLOAD TYPE as
Software and enter TBS2000B in the MODEL OR KEYBOARD field ad
click SEARCH.
3. Select the latest version of the software and follow the instructions to
download. Download the latest firmware for your oscilloscope on your PC.
4. Unzip the files and copy the TBS2000B.TEK file into the root folder of a
USB flash drive.
5. Power on the oscilloscope.
6. Insert the USB flash drive into the front-panel USB port on your
oscilloscope.

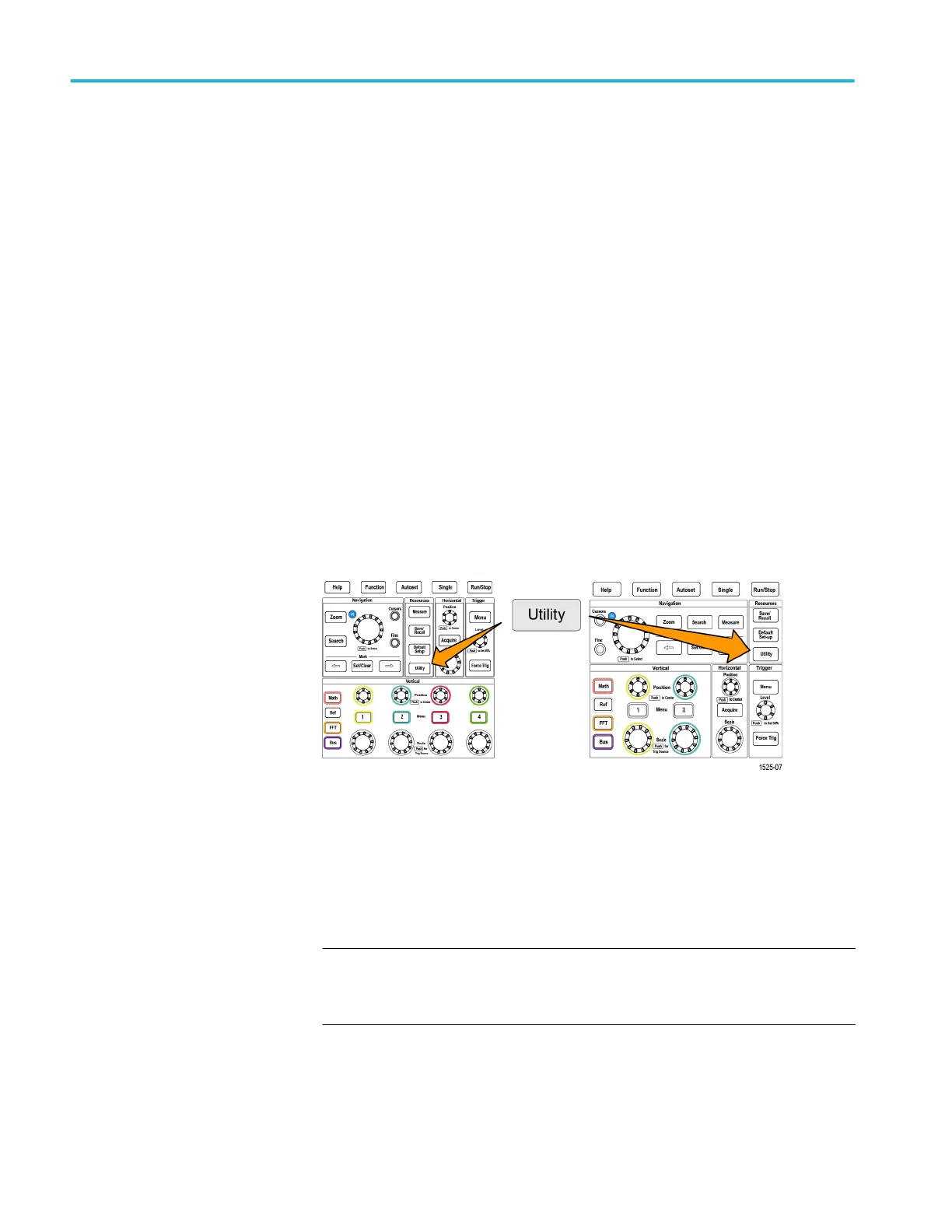

7. Push the Utility button.
8. Push the Update Firmware side-menu button. Screen shows Update
Firmware message.
9. Turn the Multipurpose knob to select Yes, then click the Multipurpose
knob to install the firmware.
10. Follow the on-screen instructions.
NOTE. Do not power off the oscilloscope or remove the USB flash drive until
the oscilloscope finishes installing the firmware. It displays a message saying
it is OK to turn off the oscilloscope.
11. When the firmware install is finished, power off the oscilloscope, remove the
USB drive, and power on the oscilloscope. Let the oscilloscope power-up to
the oscilloscope screen.
Appendices
166 TBS2000B Series Oscilloscopes User Manual
