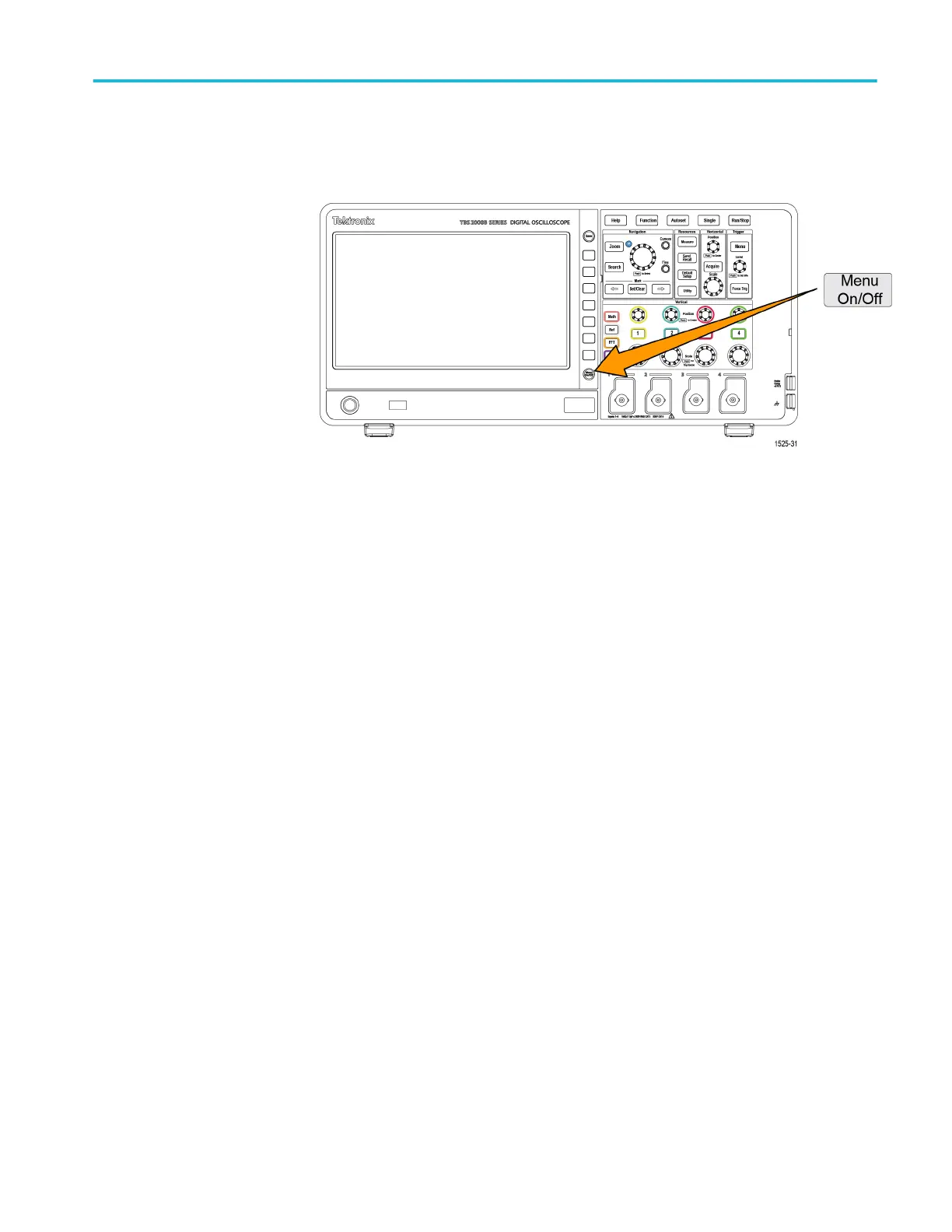

9. Push the Menu On/Off button to close the Utility side menu.

The new date and time are shown in the lower-right corner of the screen.

Getting acquainted with the oscilloscope

TBS2000B Series Oscilloscopes User Manual 21
