Setting the backlight intensity
Use this procedure to change the overall screen lighting level. Higher settings are
better for brightly lighted areas, and lower values are better for dimly lit areas.

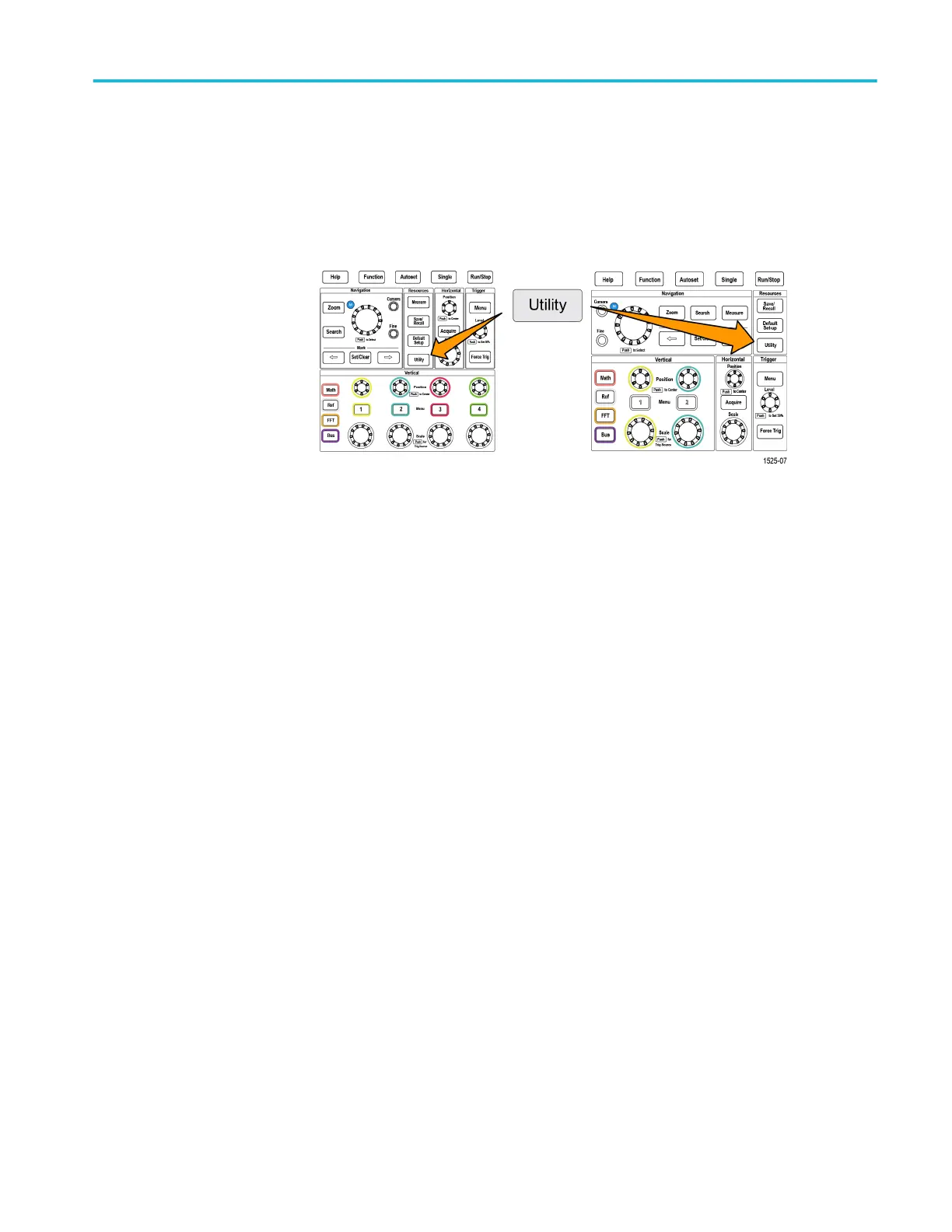

1. Push Utility.
2. Push the Display side-menu button.
3. Use the Multipurpose knob to select and click Backlight Intensity.
4. Use the Multipurpose knob to change and set the backlight value.
Waveform display settings
TBS2000B Series Oscilloscopes User Manual 87
