Starting and stopping an acquisition
After you have defined the acquisition and trigger parameters, start acquiring and
displaying a waveform with the Run/Stop or Single controls.
■

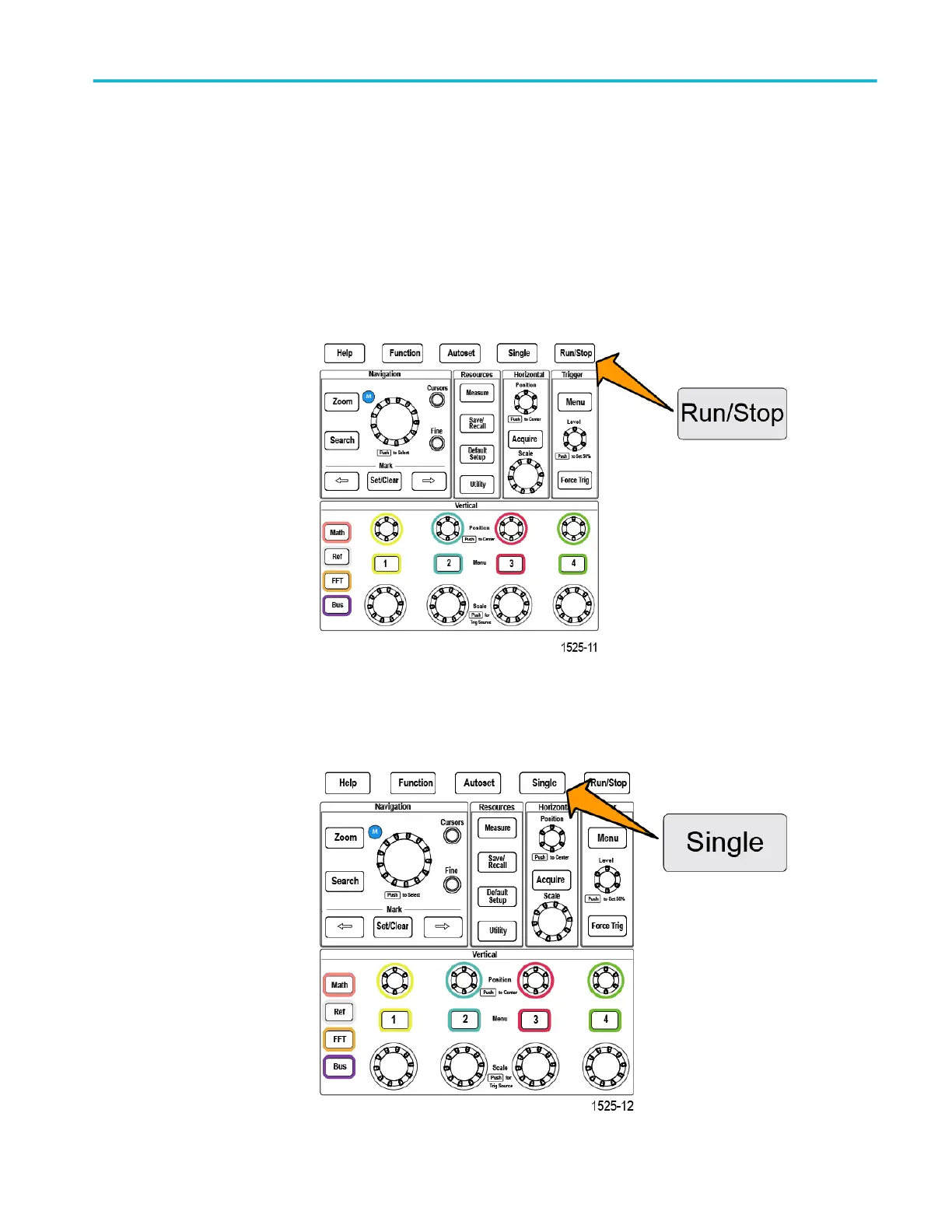

Push Run/Stop to start acquisitions (button turns green). The oscilloscope
acquires repeatedly until you push the button again to stop the acquisition, or
push the Single button.
■
Push Single to take a single acquisition.
Single sets the trigger mode to Normal for the single acquisition.
Acquisition setup
TBS2000B Series Oscilloscopes User Manual 73
