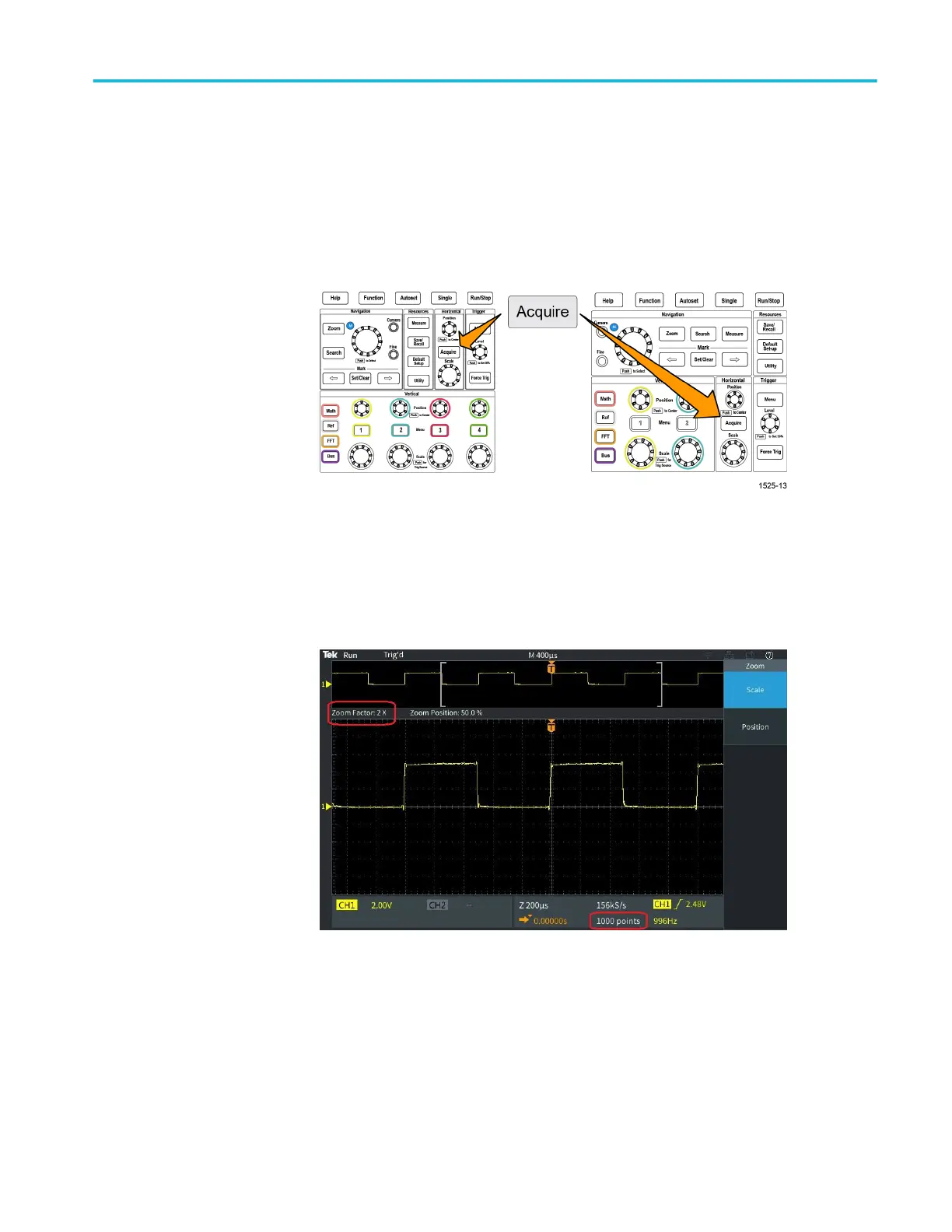

Setting the record length
Use this procedure to set the record length. The record length sets how many
samples (data points) are added to a waveform record. Available record lengths
are 1000; 2000; 20,000; 200,000, 2 million (2M), and 5 million (5M) points.
1. Push Acquire.
2. Push the Record Length side-menu button.
3. Use the Multipurpose knob to select and set the record length.
Use longer record lengths to either capture more samples for a waveform record,
or capture more cycles of a waveform, then use the Zoom controls to investigate
the waveform in more detail.
Acquisition setup
TBS2000B Series Oscilloscopes User Manual 77
