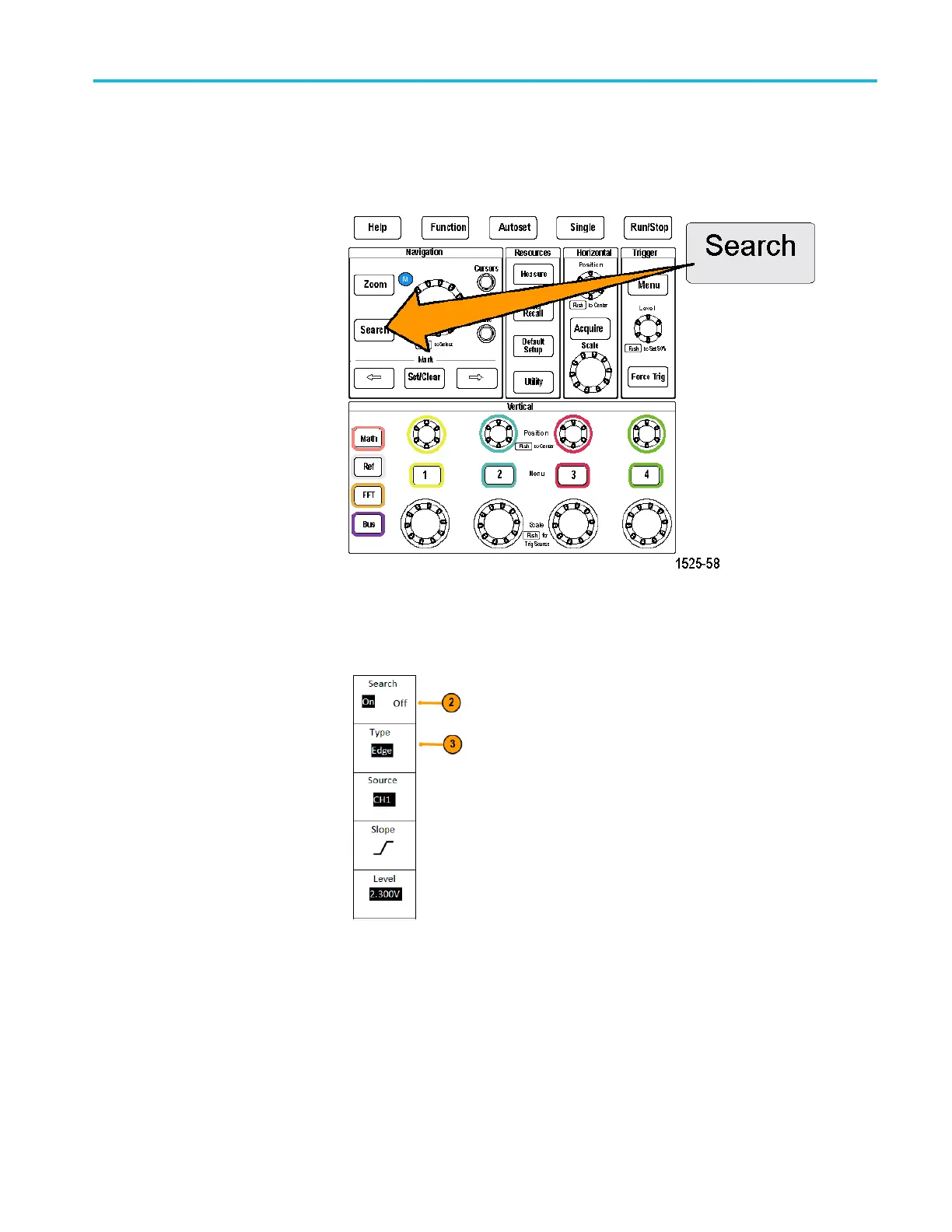

To automatically set and clear (delete) search marks:

1. Push Search.

2. Push the Search lower side-menu button and select On.

The search menu is similar to the trigger menu.

3. Push Search Type.

Analyzing a waveform

TBS2000B Series Oscilloscopes User Manual 123
