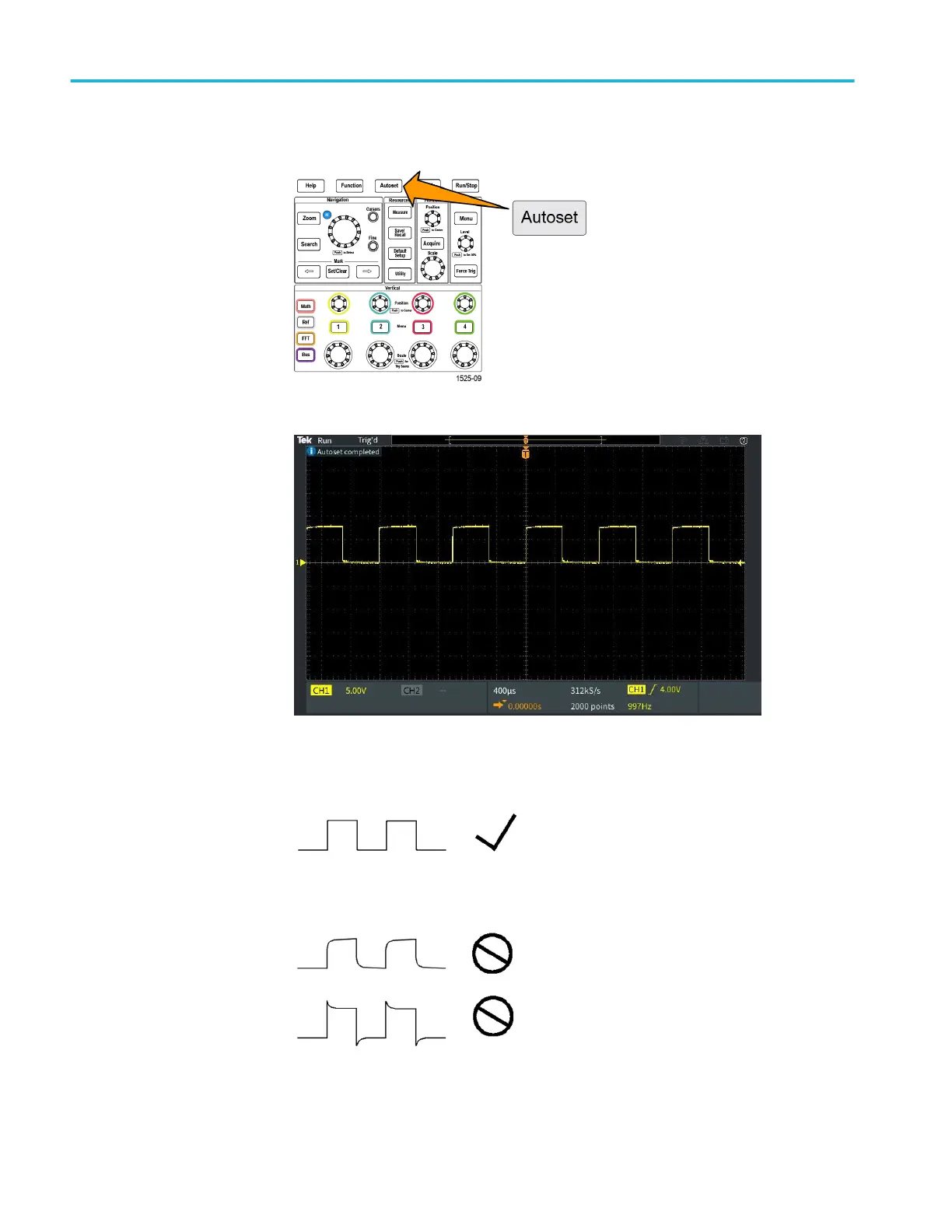

6. Push Autoset.

The screen displays a square wave.

7. Check the shape of the displayed waveform to determine if the probe needs

adjusted. If the waveform has a square leading edge and a flat top and

bottom, the probe does not need adjusted.

If the waveform leading edge is rounded or has a spike, you need to adjust the

probe compensation.

Getting acquainted with the oscilloscope

30 TBS2000B Series Oscilloscopes User Manual
