Tektronix TDS 200-Series Instructions

TDS2CM Communications Module
24
TDS 200-Series Extension Module Instructions
TDS 200 Series Digitizing oscilloscope

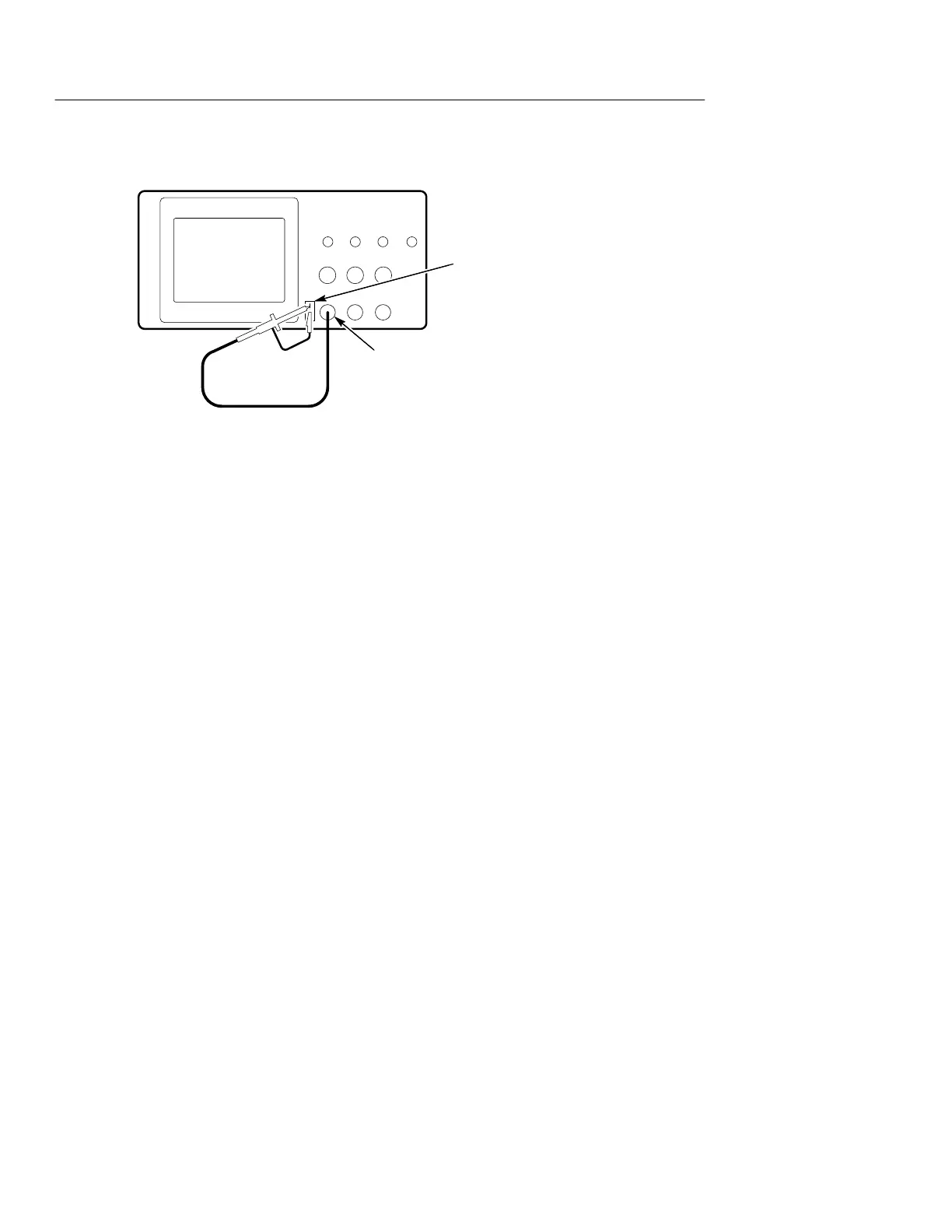

PROBE COMP
CH 1 connector
3. Send the command FACtory to reset the oscilloscope to factory
settings.
4. Send the command AUTOSet EXECute to have the oscilloscope
automatically acquire the input signal.
5. Send the command MEASUrement:IMMed:SOURCE CH1 to
select measurements on channel 1.
6. Send the command MEASUrement:IMMed:TYPe PK2 to set up
the voltage measurement.
7. Send the query MEASUrement:IMMed:VALue? to request the
measurement result. The oscilloscope will respond with a result
similar to , which is the voltage measurement of the
PROBE COMP signal using the standard 10x probe.
This completes the GPIB interface test.
