Tektronix TDS 200-Series - Operating Basics

TDS2CM Communications Module
TDS 200-Series Extension Module Instructions
25
GPIB Network Conventions
Follow these guidelines when you assemble your GPIB network:

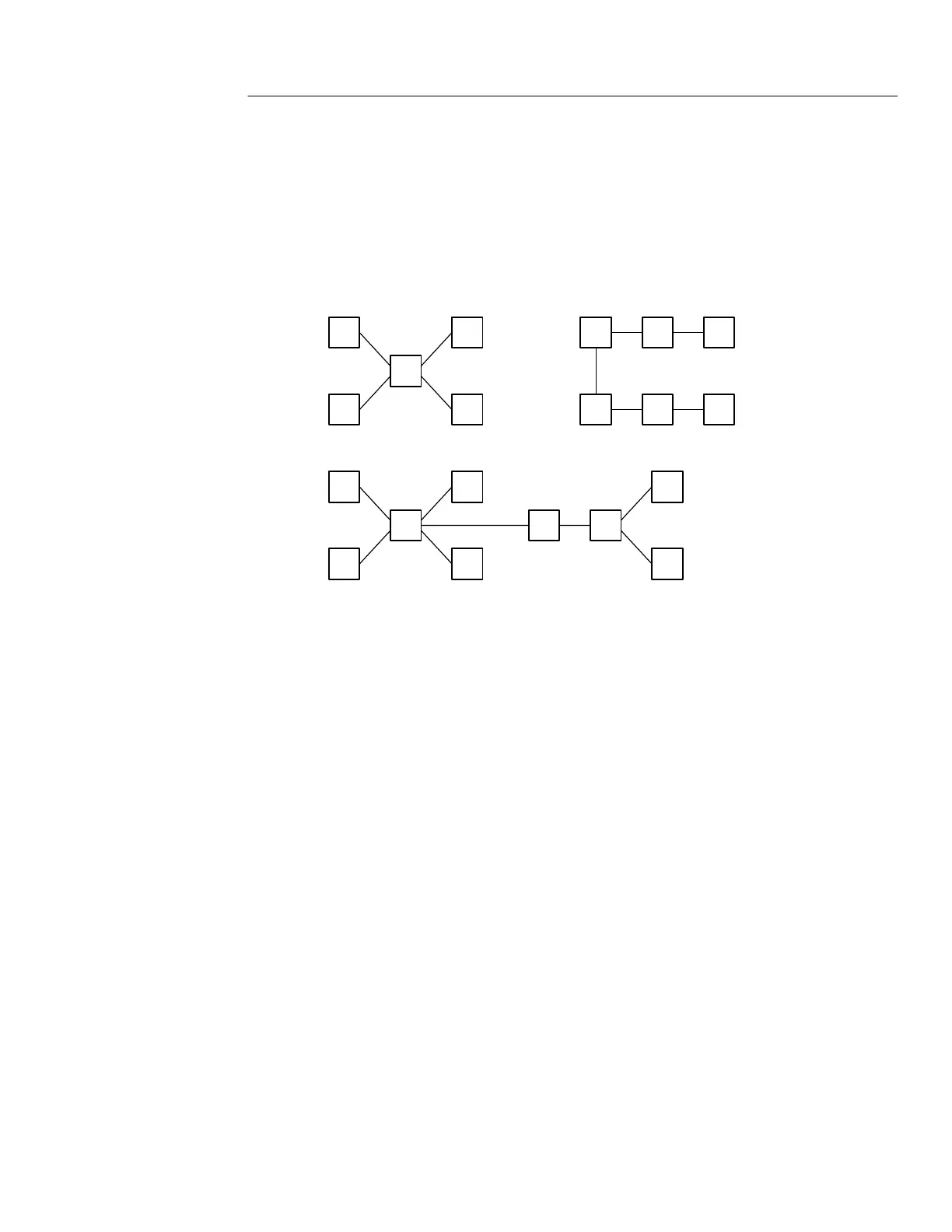

 Connect the GPIB devices in a star, linear, or combination
star/linear network, as shown in the following figure.
