TDS2CM Communications Module
26
TDS 200-Series Extension Module Instructions

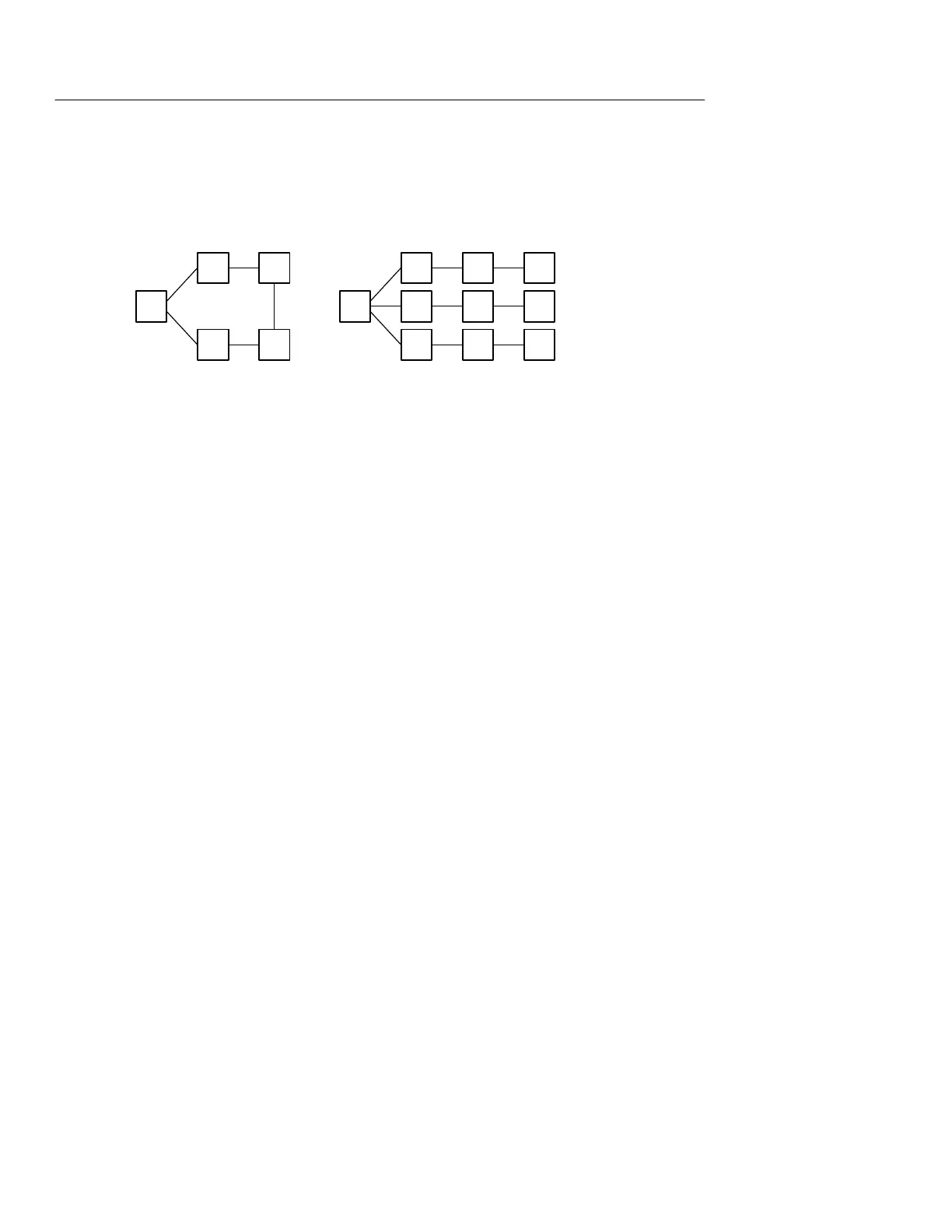

 Do not use loop or parallel configurations (shown in the
following figure).
 The maximum number of devices in a network is 15.
 The maximum cable length between any two devices is 6.6 feet
(2 meters).
 The maximum cable length in the entire network is 65 feet
(20 meters).
 Assign a unique device address to each device on the network.
No two devices can share the same device address.
