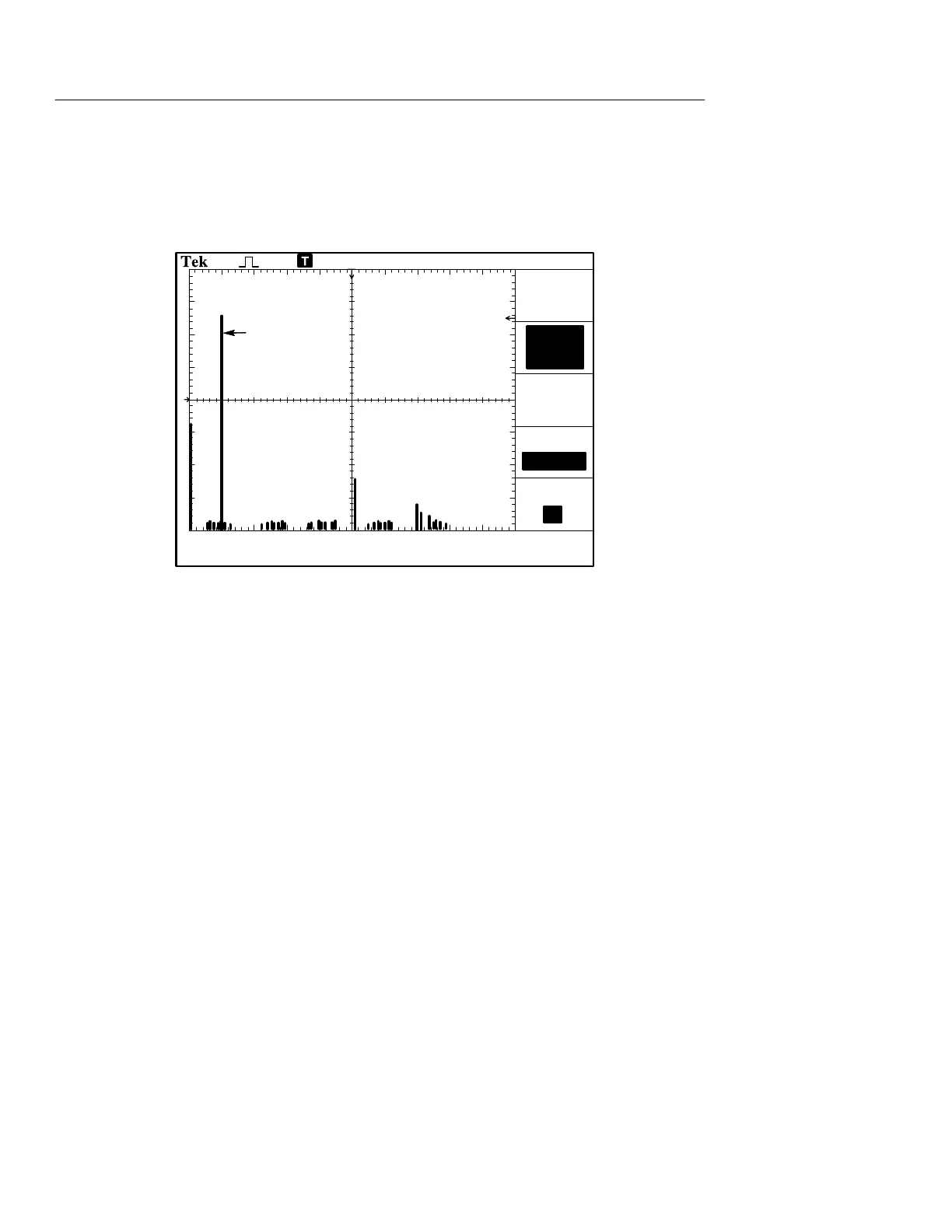

The FFT Display
Pos:250.0 kHZ
CH1 10dB
Trig'd
Hanning50.0 kHz (1.00 MS/s)
MATH
CH1+CH2
FFT
CH2
Window
FFT Zoom
X1
M
Hanning
FFT
CH1
1
234 5
Frequency
component
1. Frequency at the center graticule line
2. Vertical scale in dB per division (0 dB = 1 V
RMS
)
3. Horizontal scale in frequency per division
4. Sample rate in number of samples per second
5. FFT window type
