Command Descriptions
2–224
TDS Family Oscilloscope Programmer Manual
MEASUrement:MEAS<x>:SOURCE[1]
Sets or queries the source for all single channel measurements and specifies the
source to measure “from” when taking a delay measurement or phase measure-
ment.
Measurement

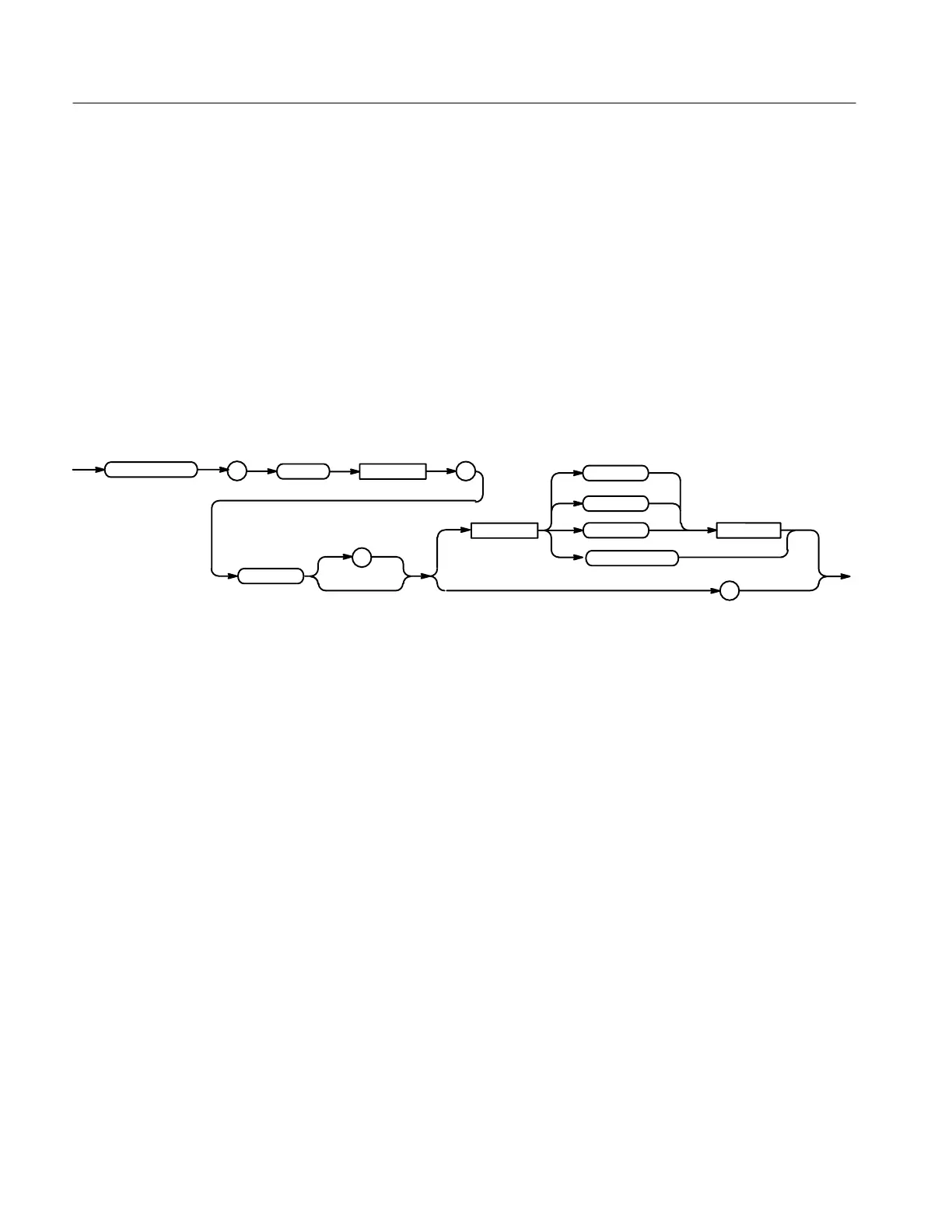

MEASUrement:MEAS<x>:SOURCE[1] { CH<x> | MATH<x> | REF<x> |
HIStogram (TDS 500C and 700C) }
MEASUrement:MEAS<x>:SOURCE[1]?
REF
<Space>
?
MATH
<x>
MEASUrement
SOURCE
1
CH
HIStogram
:
:
MEAS
<x>
CH<x> is an input channel.
MATH<x> is a math waveform.
REF<x> is a reference waveform.
HIStogram is a histogram (TDS 500C and 700C only).
MEASUREMENT:MEAS2:SOURCE1 MATH1
specifies MATH1 as the measurement 2 source.
MEASUrement:MEAS<x>:SOURCE2
Sets or queries the source to measure “to” when taking a delay measurement or
phase measurement. This is equivalent to setting the source in the Delay from
Selected Wfm side menu or the Phase from Selected Wfm side menu.
Measurement
MEASUrement:MEAS<x>:SOURCE2 { CH<x> | MATH<x> | REF<x> | HIStoĆ
gram (TDS 500C and 700C) }
Group
Syntax
Arguments
Examples
Group
Syntax
