Tektronix TDS1002 User Manual

Application Examples
TDS1000/2000-Series Digital Oscilloscope User Manual
57
Optimizing the Acquisition
The initial acquisition shows the relay contact beginning to open at
the trigger point. This is followed by a large spike that indicates
contact bounce and inductance in the circuit. The inductance can
cause contact arcing and premature relay failure.
You can use the vertical, horizontal, and trigger controls to optimize
the settings before the next single-shot event is captured.

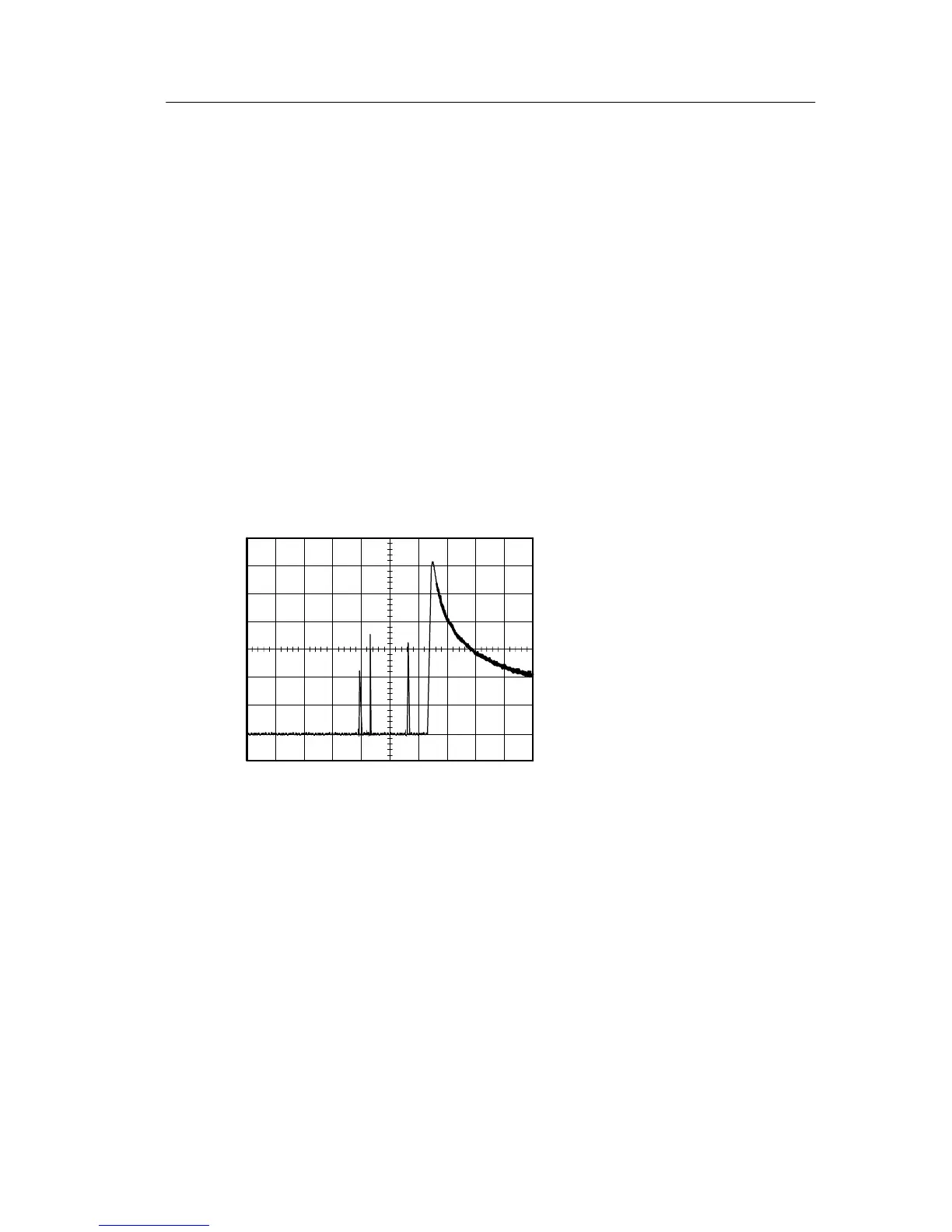

When the next acquisition is captured with the new settings (when
you push the SINGLE SEQ button again), you can see more detail
about the relay contact opening. You ca n now see that the contact
bounces several times as it opens.

Tektronix TDS1002 Specifications

General

Bandwidth	60 MHz
Channels	2
Sample Rate	1 GS/s
Record Length	2.5k points
Vertical Sensitivity	2 mV/div to 5 V/div
Vertical Resolution	8 bits
Display Resolution	320 x 240 pixels
Display	5.7 inch monochrome LCD
Trigger Modes	Video, Edge
Connectivity	USB 2.0
Weight	2.0 kg
Input Impedance	1 MΩ
Power Supply	100 to 240 VAC, 45 to 440 Hz
