TDS1000 and TDS2000 Series Digital Storage Oscilloscopes Service Manual
Installation
Use only power cords designed for your oscilloscope. Use a power source that
delivers 90 to 264 VAC
RMS
, 45 to 66 Hz. If you have a 400 Hz power source, it
must deliver 90 to 132 VAC
RMS
, 360 to 440 Hz.
Refertopage8--8intheReplaceable Parts chapter for a list of power cords
available from Tektronix. All power cords must be rated for > 3 Amps, 3 wire,
and have an 18 AWG (1.0 mm) Safety Ground lead, or larger.
Securing cable
Power cable

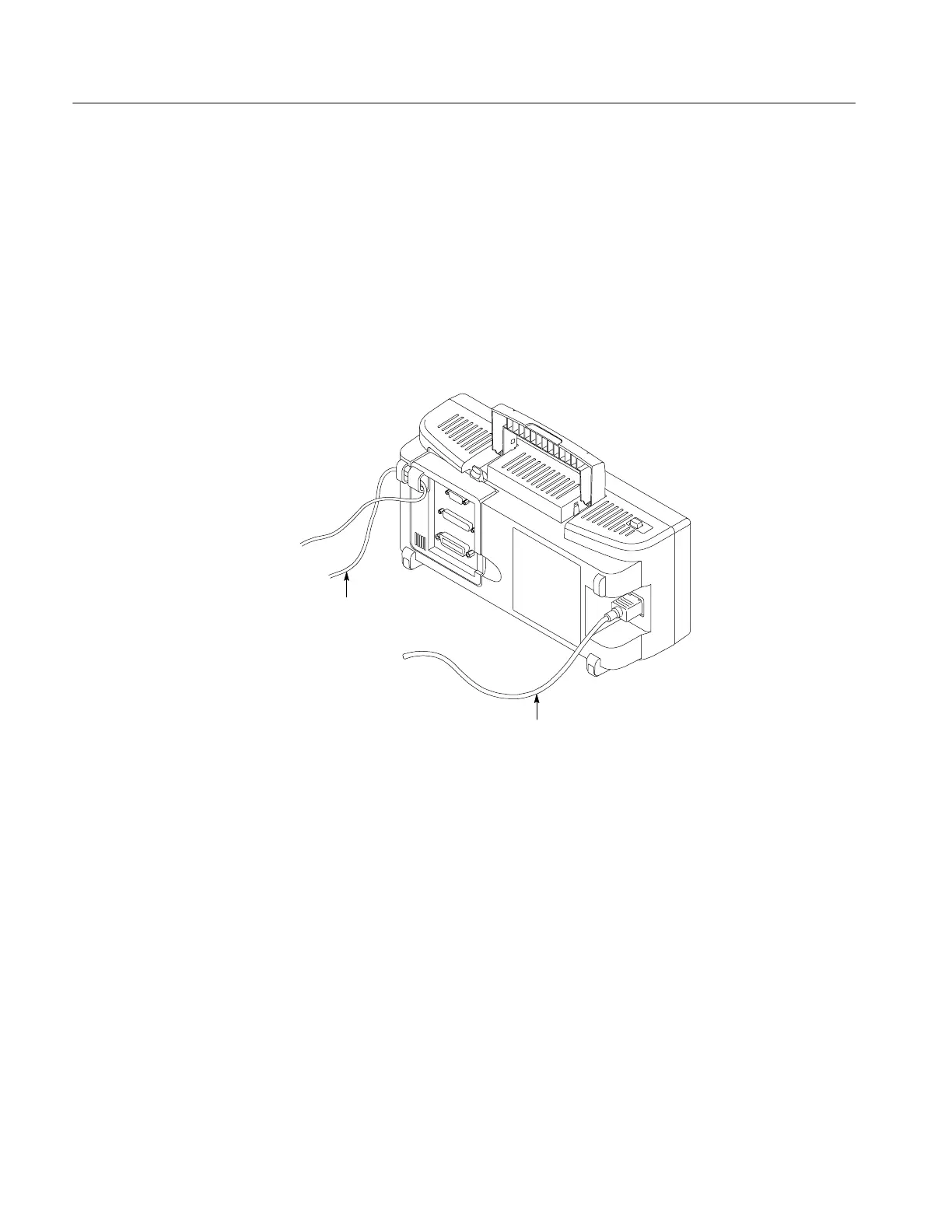

Figure 2--1: Routing the power cord and security cable
Use the built-in cable channels to secure both your oscilloscope and extension
module to your location.
Power Cord
Security Loop

Tektronix TDS2014 Specifications

General

Channels	4
Bandwidth	100 MHz
Sample Rate	1 GS/s
Record Length	2.5k points
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div to 5 V/div
Timebase Range	5 ns/div to 50 s/div
Display Resolution	320 x 240 pixels
Display	5.7 inch color LCD
Trigger Types	Edge, Video
Interface	USB
Input Impedance	1 MΩ
Power Requirements	100 to 240 V
