Tektronix TDS2014 Manual

Adjustment Procedures
5-- 4
TDS1000 and TDS2000 Series Digital Storage Oscilloscopes Service Manual
10-inch
BNC cable
10-inch
BNC cables
10-inch
BNC cables
10-inch
BNC cables
Four Channel
Digitizing oscilloscope
Two Channel
Digitizing oscilloscope
BNC ‘T’ connector
DC voltage setup 1
+--
DC voltage source
Dual banana to
BNC adapter
BNC cable
DC voltage setup 2
+--
DC voltage source
Dual banana to
BNC adapter
BNC cable
Sinewave generator setup
Leveled sine
wave generator
Output
50 Ω feedthrough terminator
(Table 5--2 and 5 --3 list
proper channel)
BNC cable
BNC ‘T’
connectors
BNC cable
10-inch BNC cable
BNC ‘T’
connector
Square wave
generator
Output
50 Ω feedthrough terminator
(Table 5--2 and 5 --3 list
proper channel)
BNC cable
Edge setup
Two Channel
Digitizing oscilloscope
Four Channel
Digitizing oscilloscope
Two Channel
Digitizing oscilloscope

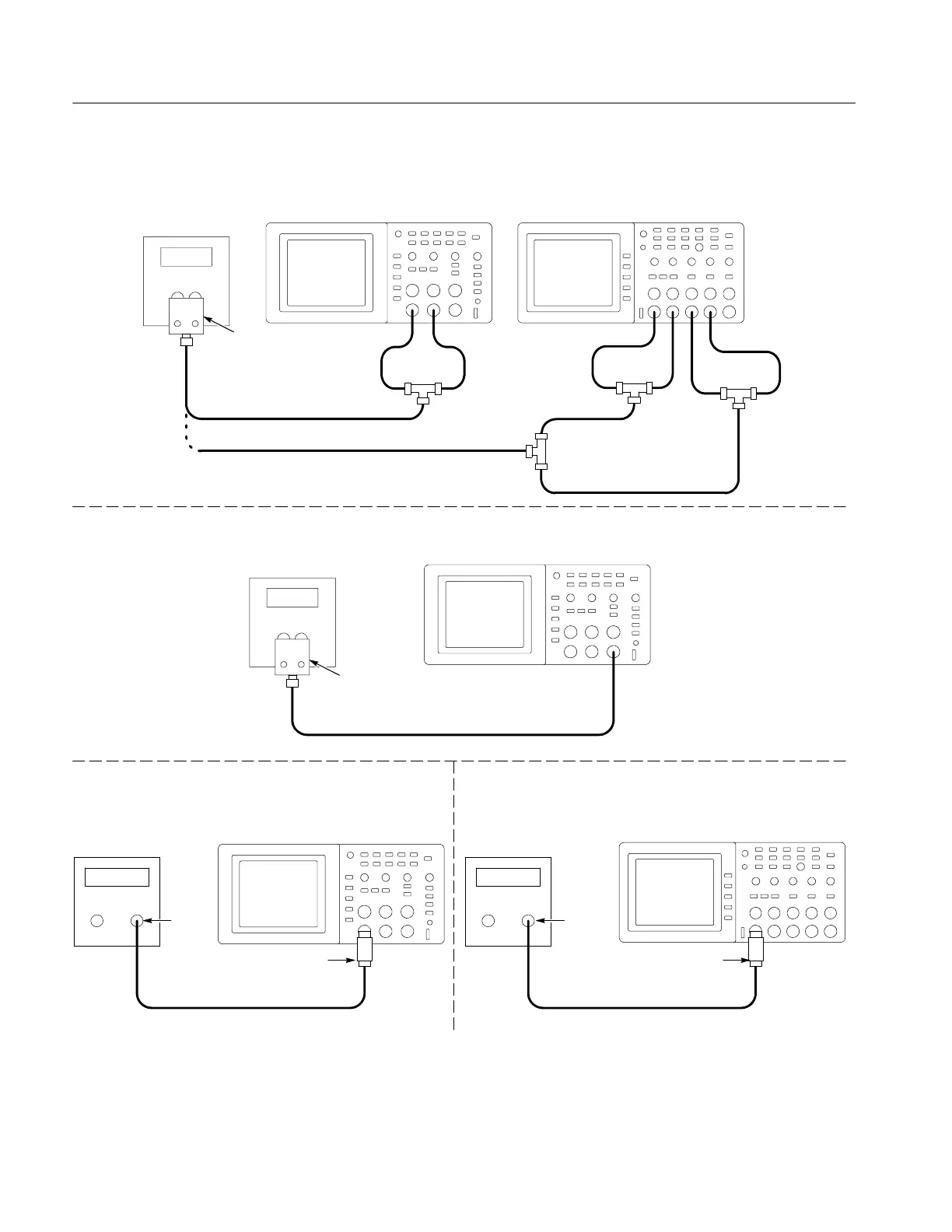

Figure 5--1: Adjustment setups

Tektronix TDS2014 Specifications

General

Channels	4
Bandwidth	100 MHz
Sample Rate	1 GS/s
Record Length	2.5k points
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div to 5 V/div
Timebase Range	5 ns/div to 50 s/div
Display Resolution	320 x 240 pixels
Display	5.7 inch color LCD
Trigger Types	Edge, Video
Interface	USB
Input Impedance	1 MΩ
Power Requirements	100 to 240 V
