Operating Information
TDS1000 and TDS2000 Series Digital Storage Oscilloscopes Service Manual
2-- 5
Extension Modules
You can increase the feature set of your oscilloscope by inserting an extension
module. Refer to page 8--8 for more information. Figure 2--2 shows the proper
way to install and remove a module without bending the connecting pins.
For more information on extension modules, see your oscilloscope user manual.
CAUTION. Electrostatic discharge (ESD) can damage components in the
extension module and the oscilloscope. Do not operate your instrument with the
extension module connector exposed.
Module release tab
Install
extension
module
Remove
extension
module

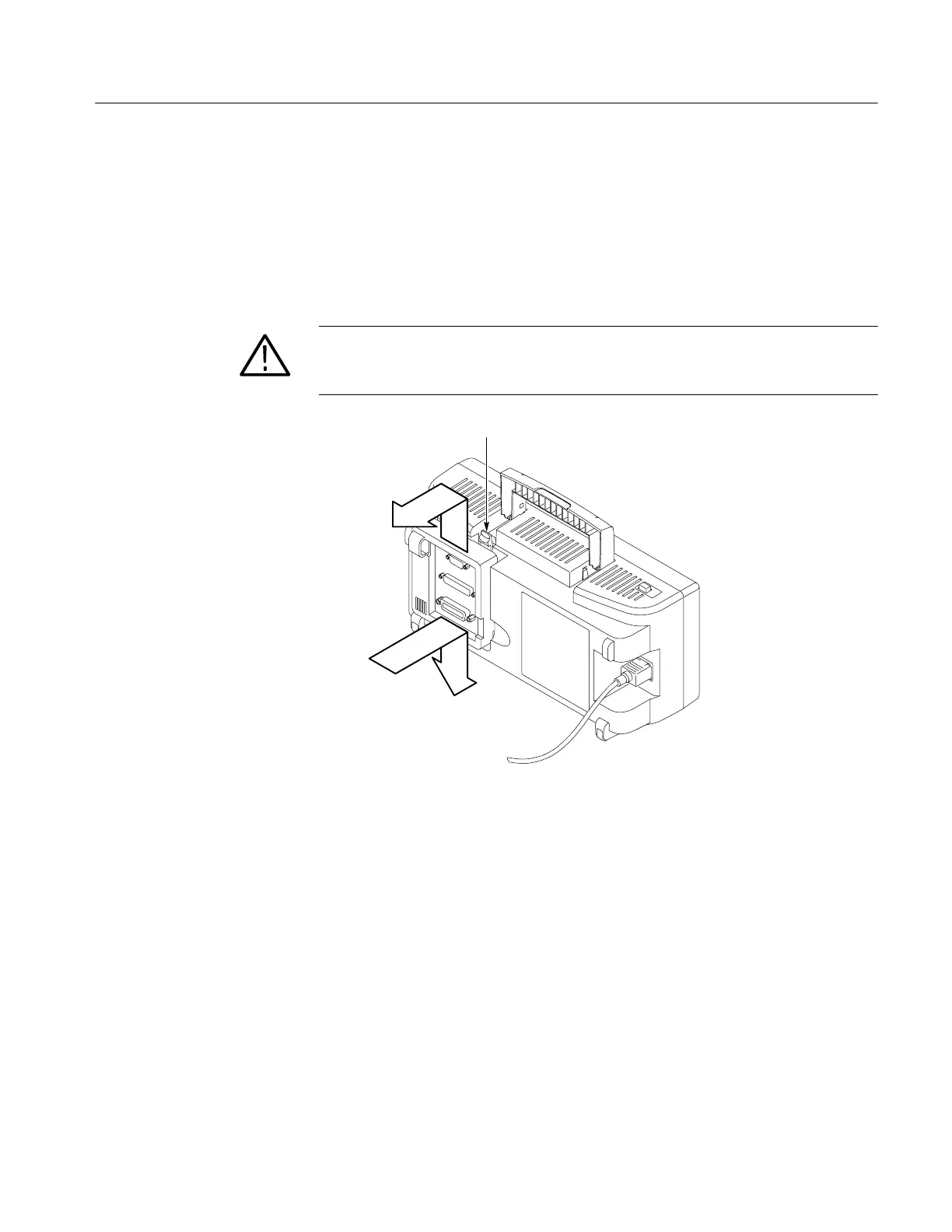

Figure 2--2: Installing and removing an extension module

Tektronix TDS2014 Specifications

General

Channels	4
Bandwidth	100 MHz
Sample Rate	1 GS/s
Record Length	2.5k points
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div to 5 V/div
Timebase Range	5 ns/div to 50 s/div
Display Resolution	320 x 240 pixels
Display	5.7 inch color LCD
Trigger Types	Edge, Video
Interface	USB
Input Impedance	1 MΩ
Power Requirements	100 to 240 V
