Tektronix TDS2024 Manual

Maintenance
6-- 28
TDS1000 and TDS2000 Series Digital Storage Oscilloscopes Service Manual
You will need a torque-limiting Torx T-15 screwdriver for this procedure.

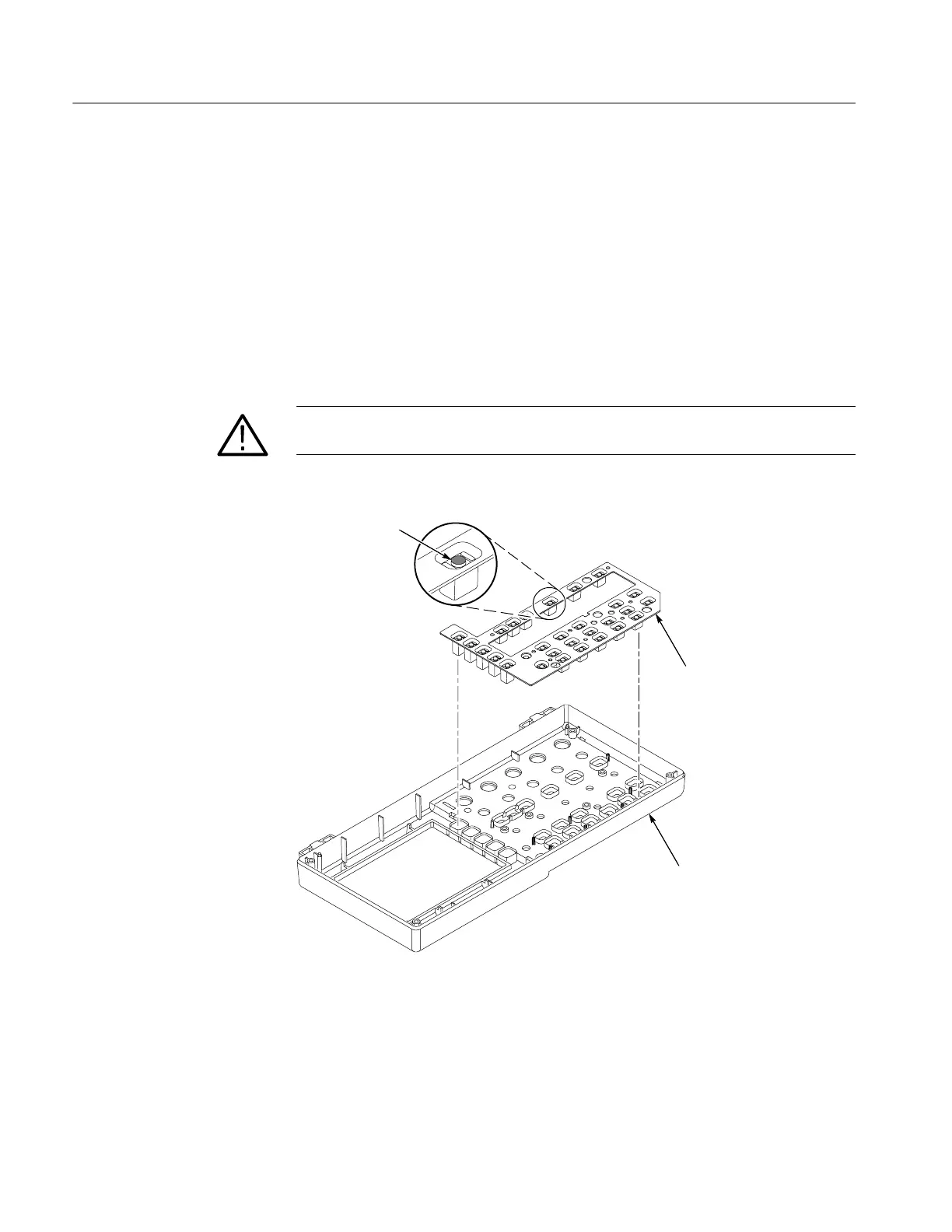

Removal. To remove the switch keypad, refer to Figure 6--18 and follow these
steps:
1. Remove the power button and rear case using the procedures on page 6--10.
2. Remove the entire internal assembly from the front case using the procedure
on page 6--17.
3. Lift the keypad out of the front case.
CAUTION. Keep the electrical contacts on the back of the keypad clean. Skin oils
and dust will inhibit good electrical contact.
Use care to avoid touching
the electrical contacts
Keypad
Front case
Figure 6--18: Removing and installing the keypad
Keypad

Tektronix TDS2024 Specifications

General

Channels	4
Bandwidth	200 MHz
Sample Rate	2 GS/s
Record Length	2.5k points
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div to 5 V/div
Timebase Range	5 ns/div to 50 s/div
Display Resolution	320 x 240 pixels
Math Functions	Add, Subtract, Multiply, Divide, FFT
Input Coupling	AC, DC, GND
Trigger Modes	Auto, Normal, Single
Trigger Types	Edge, Video, Pulse
Connectivity	USB
Input Impedance	1 MΩ
Maximum Input Voltage	300 V
Interface	USB
Power Supply	100 to 240 V
Dimensions	326 mm x 158 mm x 124 mm
