Tektronix TDS2024 Manual

Performance Verification
TDS1000 and TDS2000 S eries Digital Storage Oscilloscopes Service Manual
4-9

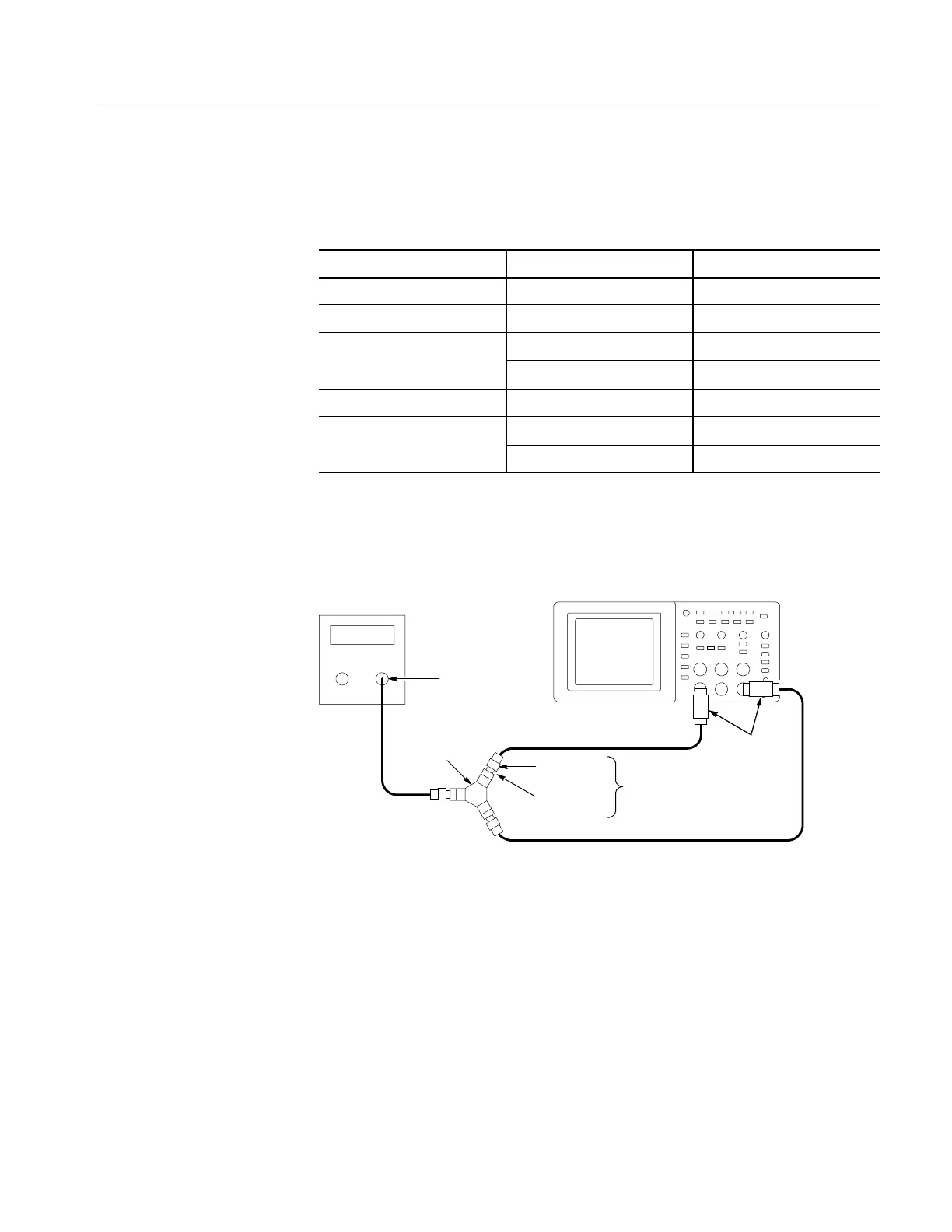

This test checks the edge trigger sensitivity for the external trigger.
1. Set up the oscilloscope using the following steps:
Press menu button Select menu option Select setting
DEFAULT SETUP — —
CH 1 Probe 1X
TRIGGER
Source Ext
Mode Normal
ACQUIRE Sample —
MEASURE
Source CH1
Type Pk-Pk
2. Connect the oscilloscope to the leveled sine wave generator as shown below.
Digitizing oscilloscope
Leveled
sine wave
generator
Output
50 Ω
feedthrough
terminator
Male SMA to
female BNC
SMA female--
to--female
Power divider
3Pieces
3. Set the leveled sine wave generator frequency to
H 40 MHz if you are checking a TDS1001
H 60 MHz if you are checking a TDS1002/2002/TDS2004
H 100 MHz if you are checking a TDS1012/2012/2014
H 200 MHz if you are checking TDS2022/2024.
4. Set the oscilloscope VOLTS/DIV to 100 mV/div.
5. Set the oscilloscope SEC/DIV to 10 ns/div.
Check External Edge
Trigger Sensitivity

Tektronix TDS2024 Specifications

General

Channels	4
Bandwidth	200 MHz
Sample Rate	2 GS/s
Record Length	2.5k points
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div to 5 V/div
Timebase Range	5 ns/div to 50 s/div
Display Resolution	320 x 240 pixels
Math Functions	Add, Subtract, Multiply, Divide, FFT
Input Coupling	AC, DC, GND
Trigger Modes	Auto, Normal, Single
Trigger Types	Edge, Video, Pulse
Connectivity	USB
Input Impedance	1 MΩ
Maximum Input Voltage	300 V
Interface	USB
Power Supply	100 to 240 V
Dimensions	326 mm x 158 mm x 124 mm
