Appendix G: Ethernet Set up

TDS3000B Serie s User Manual

G-11

The Add P rinter Screen

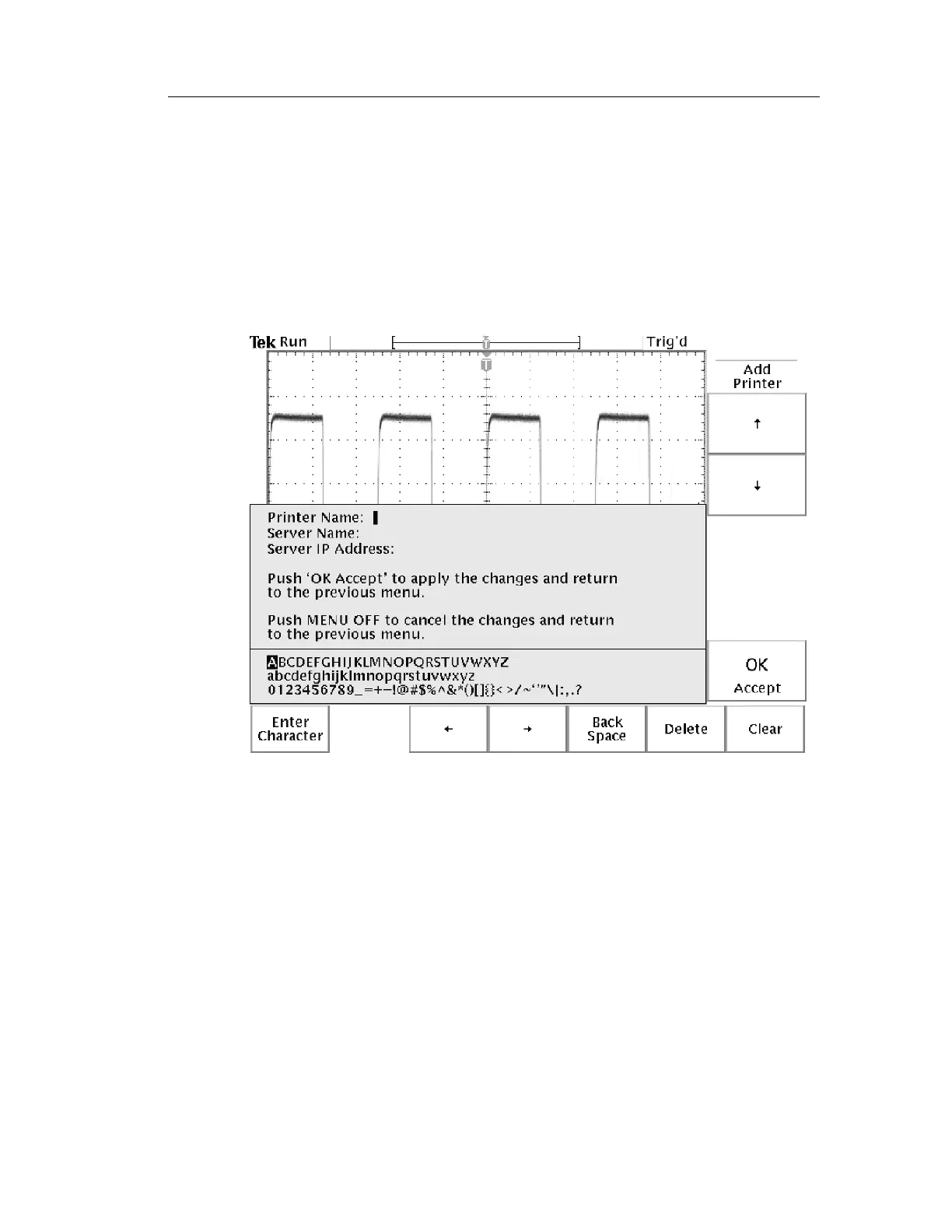

The following figure shows the Add Printer screen. The text that

follows describes the screen menu items and controls for entering

printer configuration settings.
