Application Examples

2-14

TDS3000B Serie s User Manual

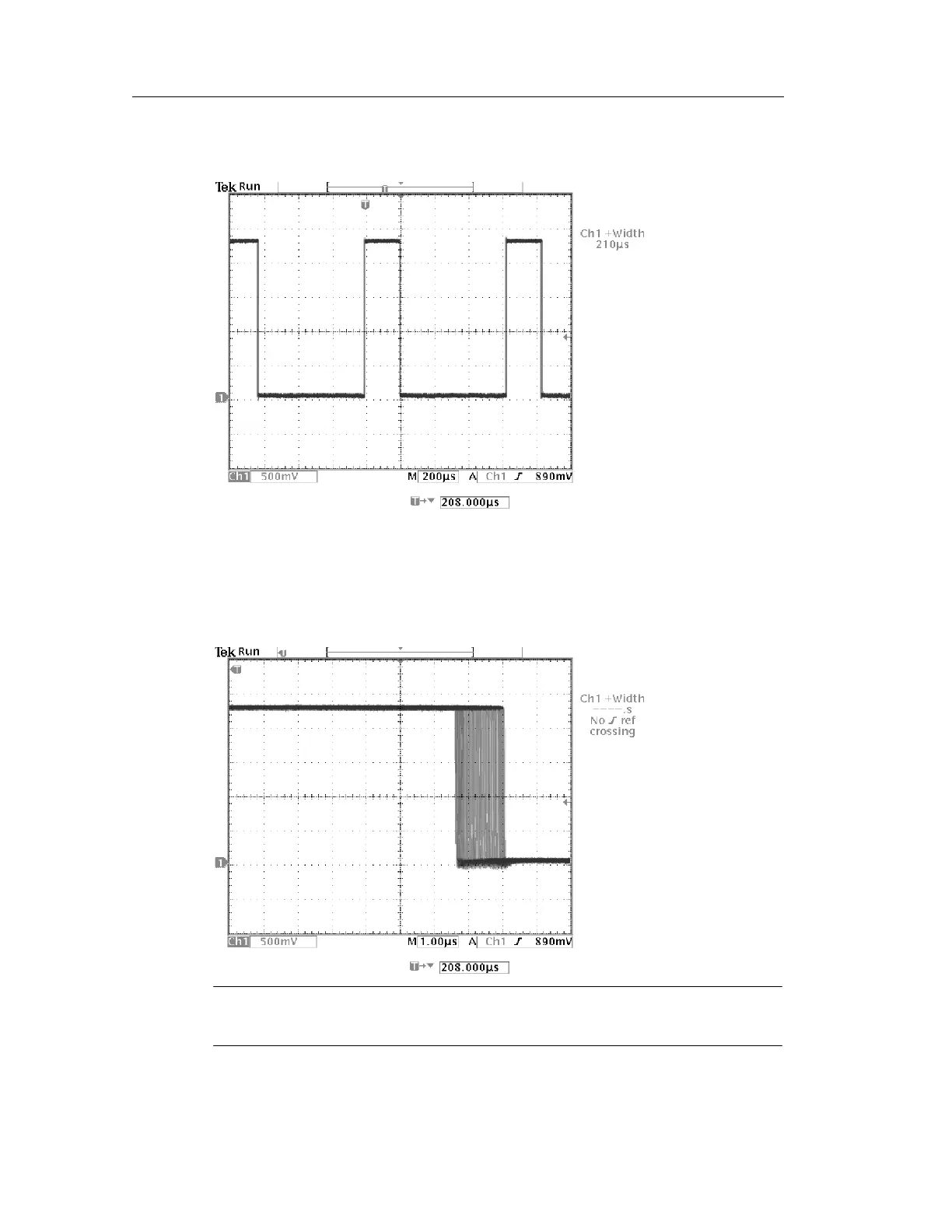

3. Adjust the horizontal SCALE to a faster time base setting and

increase the WAVEFORM INTENSITY to see the jitter in the

pulse width.

NOTE. You can toggle the delay function on and off to vi ew signal

details at two different areas of interest.

Table of Contents5
General Safety Summary10
Preface14
Contacting Tektronix14
- Probe Compensation 117
- Signal Path Compensation (SPC) 117
- Functional Check18
- Probe Compensation19
- Adjusting the Oscilloscope Time and Date20
- Signal Path Compensation (SPC)20
Initial Setup17
Product and Feature Description21
- Acquisition Features21
- Signal Processing Features22
- Display Features23
- Measurement Features23
- Trigger Features24
- Convenience Features24
- Optional Features25
Transporting the Oscilloscope26
Operating Positions27
Connecting Power27
- Using Battery Power28
- Operating Safely with Battery Power29
- Installing the Battery30
- Maximizing Operating Time31
- Charging the Battery32
Installing an Application Module33
Installing a Communication Module34
Front-Panel Menus and Controls35
- Using the Menu System35
- Using the Menu Buttons38
- Using the Dedicated Controls40
- Identifying Items in the Display43
- Using Quickmenus45
Front-Panel Connectors47
Rear-Panel Connectors48
Communication Module Connectors50
Taking Simple Measurements54
- Using Autoset54
- Selecting Automatic Measurements55
- Measuring Two Signals56
- Customizing Your Measurements58
Analyzing Signal Detail61
- Looking at a Noisy Signal62
- Separating the Signal from Noise63
- Taking Cursor Measurements64
- Using Delay65
- Measuring Jitter67
Triggering on a Video Signal68
Capturing a Single-Shot Signal72
- Optimizing the Acquisition73
- Using the Horizontal Zoom Function74
Saving Data to the Floppy Disk Drive75
- Saving Screen Images76
- Saving Waveform Data79
Acquisition Controls84
Cursor 384
Cursor98
- YT Cursor Menu98
- XY Cursor Menu103
- Display 3103
Display105
Hard Copy109
Horizontal Controls113
Measure121
Quickmenu129
Save/Recall130
Trigger Controls140
Utility152
Vertical Controls162
E*Scopee Web-Based Remote Control170
Appendix A: Specifications179
Appendix B: Factory Setup193
Appendix C: Accessories197
Appendix D: Probe Basics203
Probe Descriptions203
Probe Compensation204
Tekprobe Interface204
Probe Guard205
Ground Leads205
P3010 High-Frequency Compensation206
P3010 Replaceable Parts and Accessories208
P6139A Replaceable Parts and Accessories210
Using Other Probes212
Supported Active Probes and Adapters213
Unsupported Probes214
Appendix E: Performance Verification215
Performance Verification Procedures215
Appendix F: General Care and Cleaning217
General Care217
Cleaning217
Appendix G: Ethernet Setup219
Your Ethernet Network Information219
Entering the Ethernet Network Settings220
- Networks that Support DHCP and BOOTP220
- Networks that Do Not Support DHCP and BOOTP221
Entering the Network Printer Settings222
Testing Your Ethernet Connection223
- Testing the Oscilloscope Connection223
- Testing Network Printing223
- Testing E*Scope224
Troubleshooting Your Ethernet Connection225
The Instrument Setup Screen226
The Printer Configuration Screen228
The Add Printer Screen229
- Other Network Printer Settings231
- Testing Network Printers231
Ethernet Error Messages232
Ethernet Settings Form233
