Application Examples
TDS3000B Serie s User Manual
2-17
4. Push the Tri gger On screen button.
5. Select Odd.

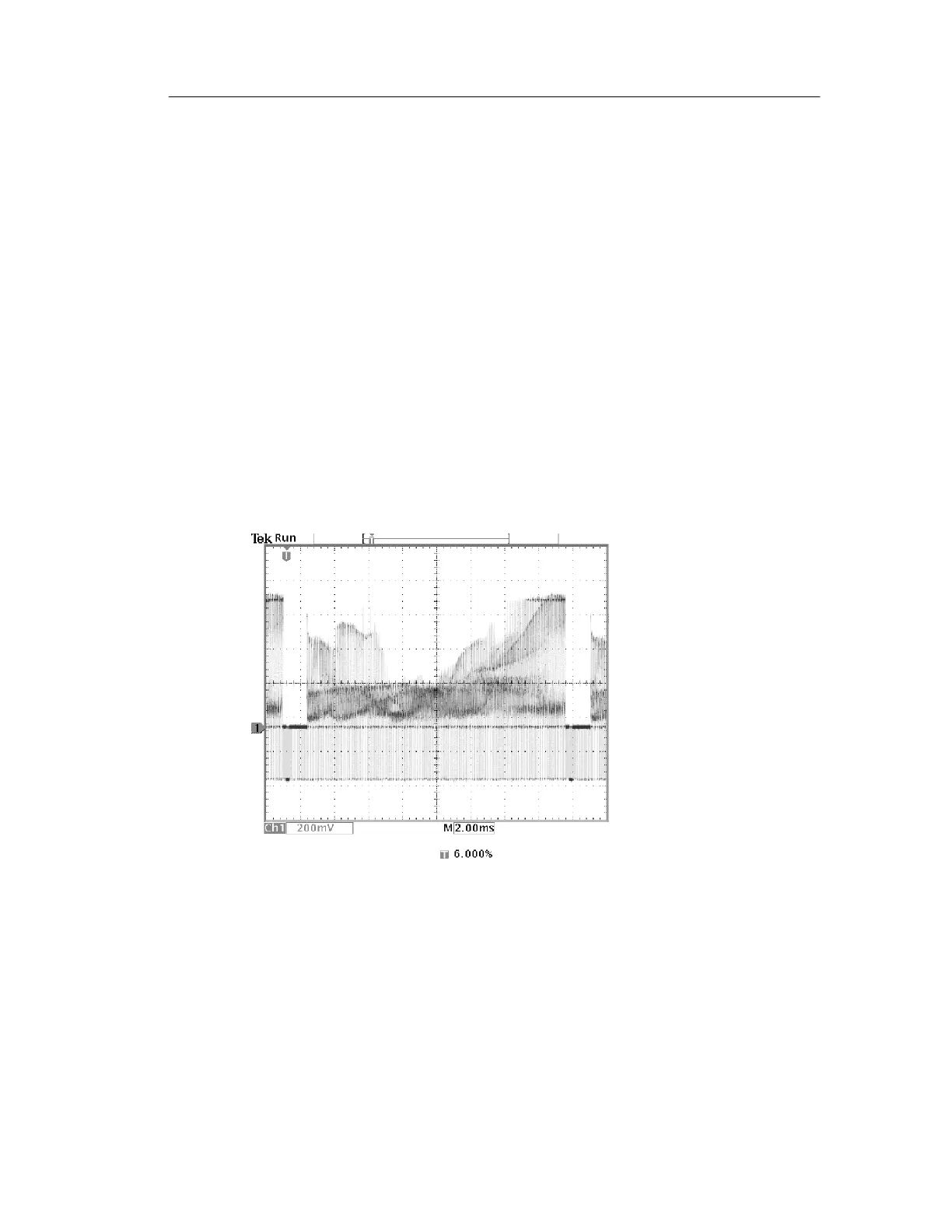

6. Adjust the horizontal SCALE to see a comple te fie ld across the
screen.
7. Push the acquire MENU button.
8. Push the Resolution screen button.
9. Select Normal acquisition resolution.
Normal acquisition resolution is the best choice to acquire a video
field signal because the signal contains a great am ount of horizontal
detail.
If the signal had bee n nonint erl aced, you could choose t o trigger on
All Fields.
To Next Page
