Tektronix TDS3054B

Maintenance
6-16
TDS3000B Series Service Manual
Display backlight
power cable
Line trigger
connector
J980
AC line filter
shield screw
DC power
connector J900
Parallel port ribbon
connector J810
Ethernet
connector J950

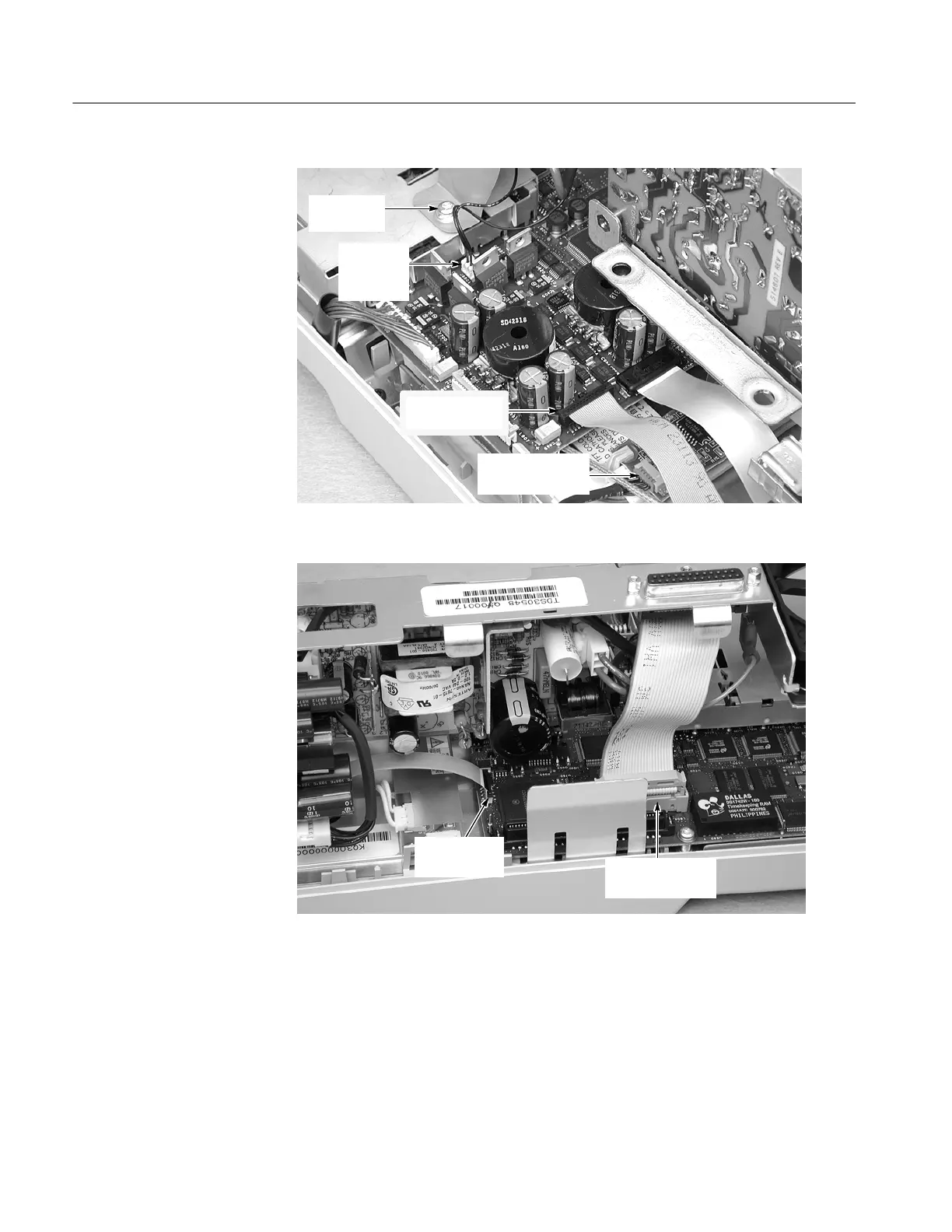

Figure 6- 7: Rear chassis cables to t he main board
