Maintenance
6-22
TDS3000B Series Service Manual
You will need a
1
@
8
inch flat-bladed screwdriver and a Torx® T-15 screwdriver to
remove the main board.
Removal. Use this procedure to remove the disk drive cable and main board.
1. Place the oscilloscope assembly face down on a soft surface (such as an
anti-static mat), with the bottom facing you.
2. If present, remove the clip from t he J500 connector. See Figure 6 --11.
Clip sitting over
the connector

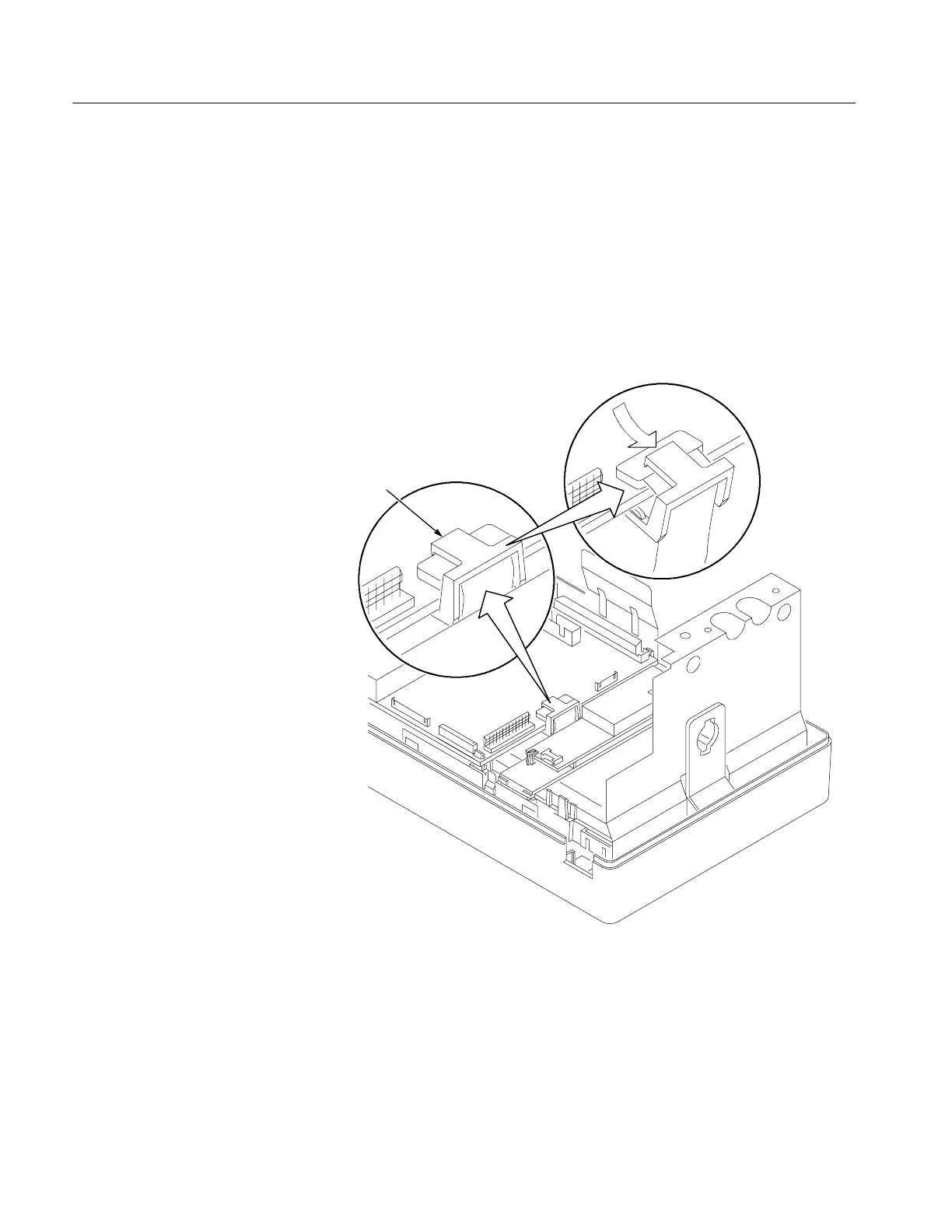

Figure 6- 11: Removing the J500 connector clip
Main Board
To Next Page
