Installation Instructions
14
TDS5000B Series (Option 1R) Rackmount Kit

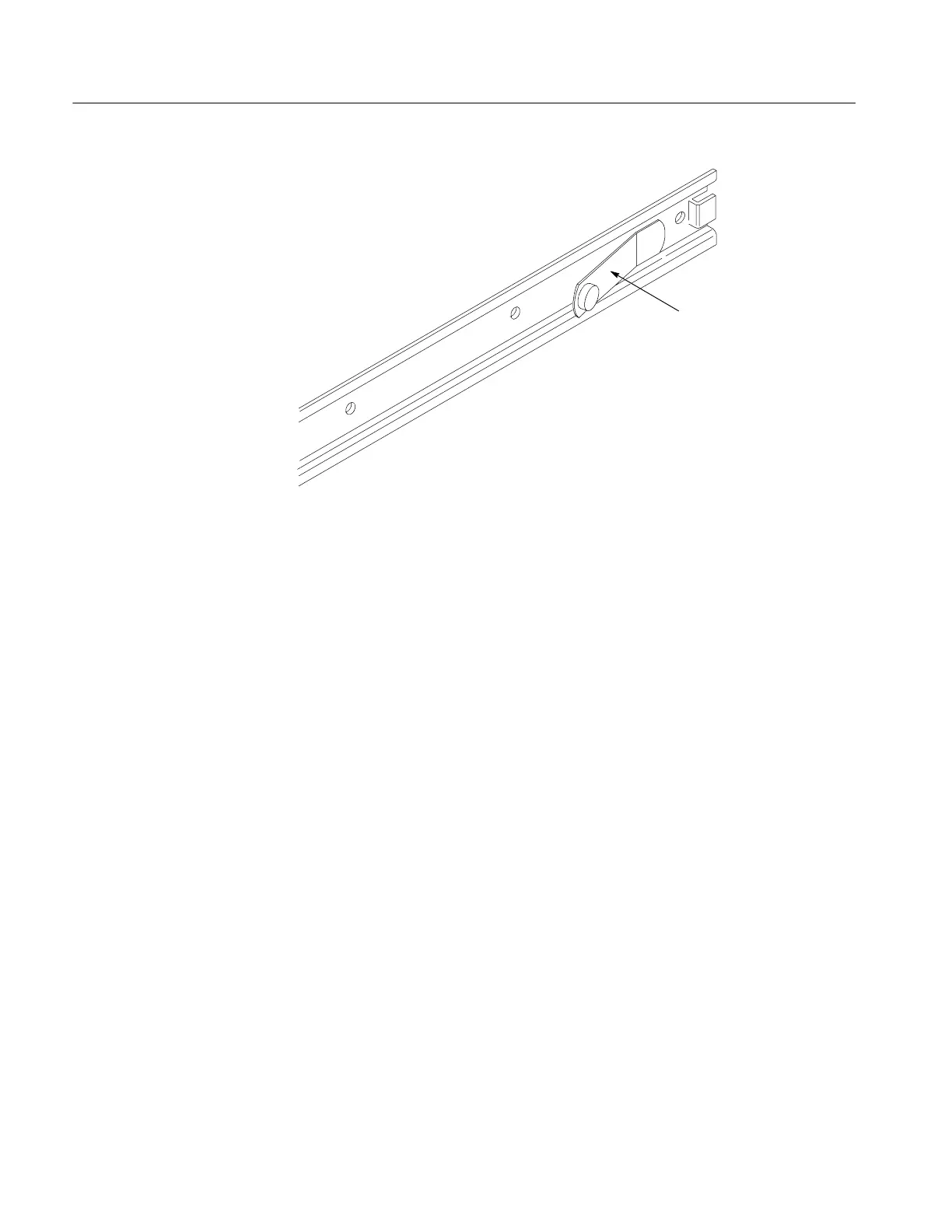

Note: Button latch is
located near the bottom
edge of right-side track,
top edge for left-side track.
Mount the tracks on the
sides of the instrument.
Figure 7: Track orientation
4. Install the right-side rackmount panel assembly to the right side of the
instrument. Secure it by using the four 10-32 Truss-head Phillips screws,
applying 28 inch-lbs of torque. Refer to Figure 8 on page 15.
5. Repeat steps 2 through 4 to install the left-side rackmount panel assembly,
using the remaining left-side components.
6. Use a T-15 Torx screw to fill the screw hole under the plastic VGA panel.
7. If desired, install the cosmetic top cover using three Torx screws from the
instrument. See Figure 8 on page 15.
8. Reinstall the two top feet/line cord holders.
