Tektronix TDS5000B Series

Installation Instructions
18
TDS5000B Series (Option 1R) Rackmount Kit
Outer track
Inner track
Rear bracket
Bar nut
Right slide-out track assembly
Front flange (mounts to
front rail of rack)
Rear flange (mounts to
rear rail of rack)
Round cut out
Left slide-out track assembly
Flange-to-Flange: 514.4 mm (20.25 in) minimum
to 673.1 mm (26.50 in) maximum

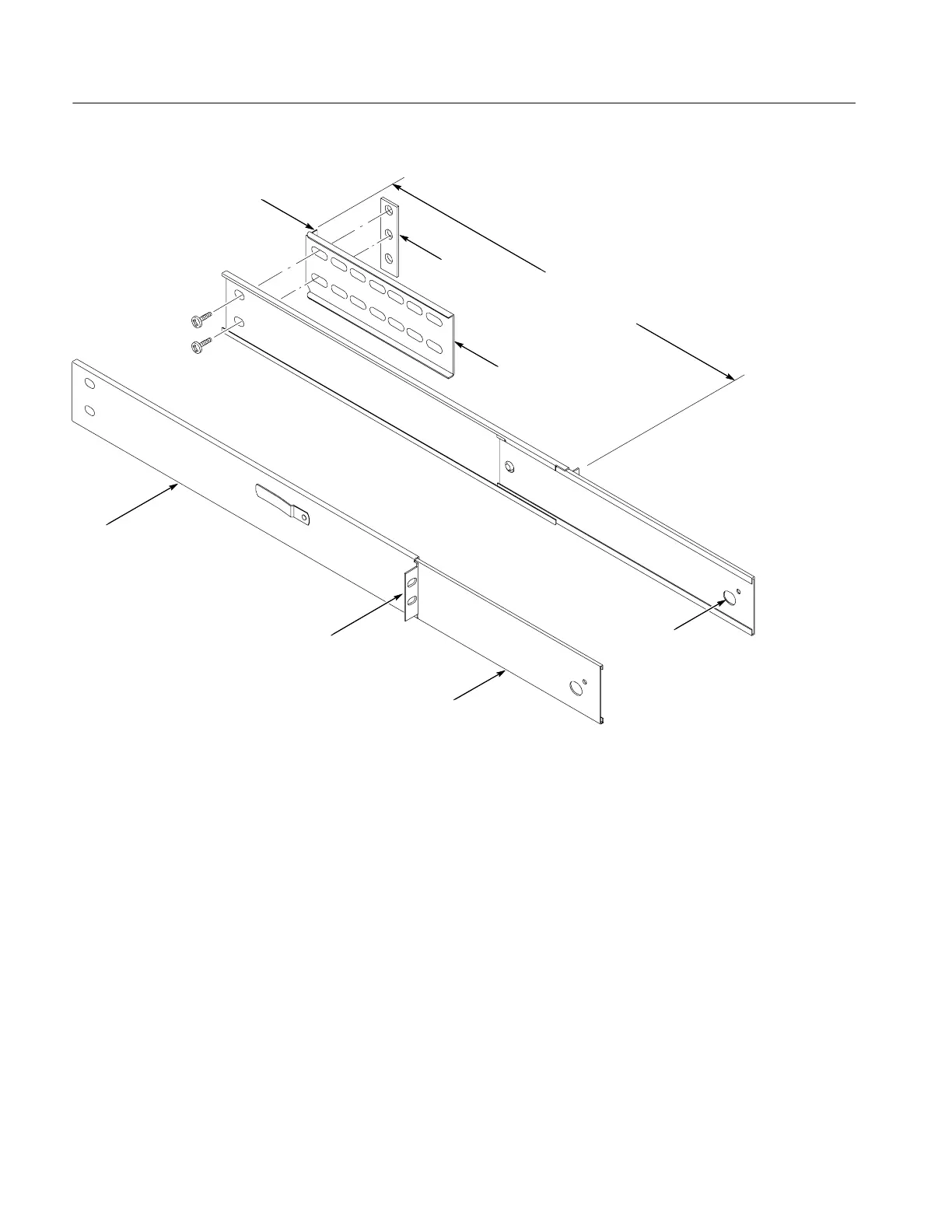

Figure 9: Assembly of slide-out track assemblies
