Tektronix TDS5000B Series

Installation Instructions
TDS5000B Series (Option 1R) Rackmount Kit
19
12.7 mm (0.50 in)(for
correct position of
securing holes)
Securing holes
(tapped for
10-32 screws)
162 mm
(6.375 in)
29.8 mm
(1.14 in)
266.700 mm
(10.500 in)
21.081 mm
(.830 in)

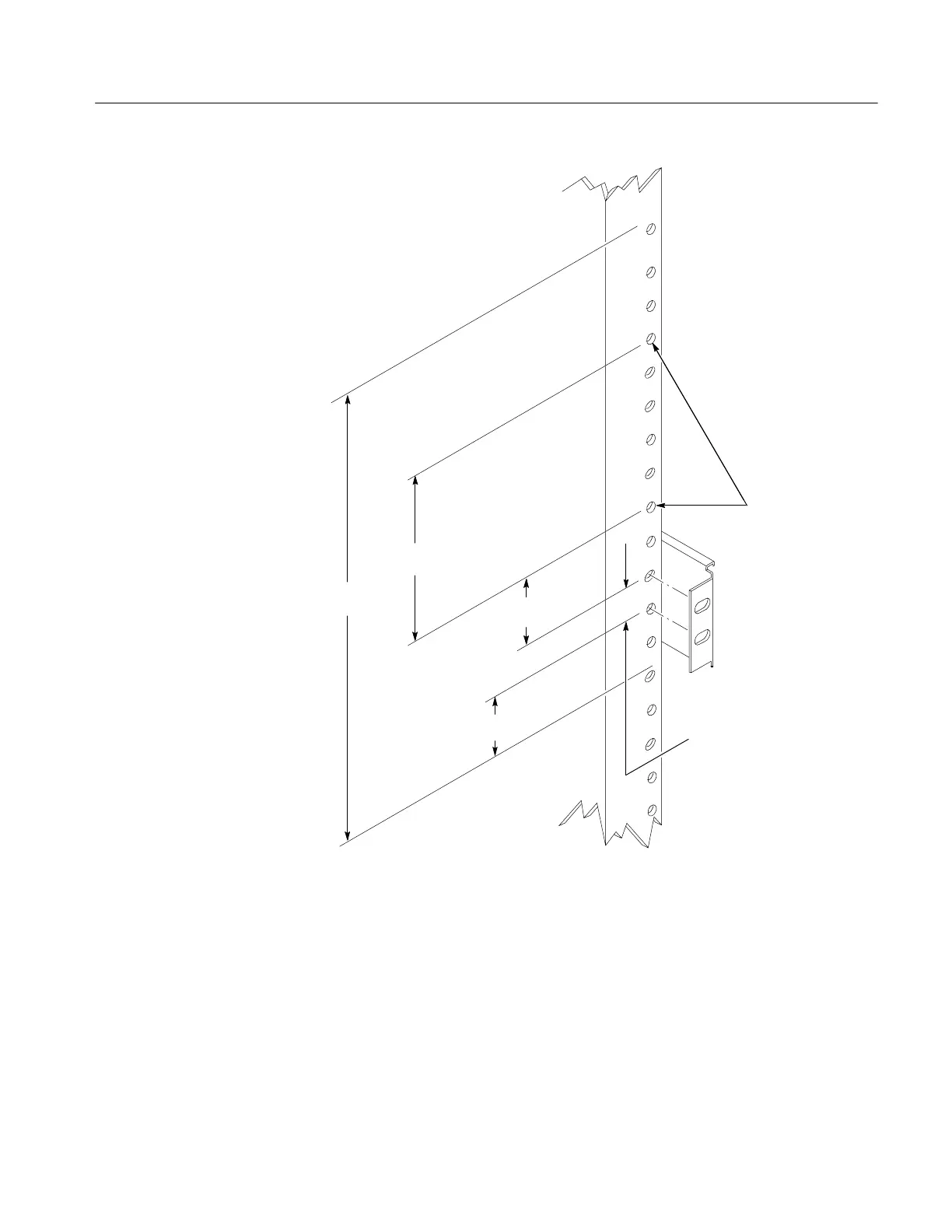

Figure 10: Vertical clearances for rack installation (left-front rail shown)
