Benchtop Mainframe Removal and Installation Procedures

TLA7000 Series Mainframe Technical Reference Manual

NOTE. When reconnecting the blower cables to the chassis, verify that you

connect the b lower cable to J8, 1/BLOWER.

8-32 Captive

screw/fan housing

8-32 Captive

screw/Enhance monitor

8-32 Captive

screw/cable cover

8-32 Captive

screw/fan housing

8-32 Captive

screw/fan housing

8-32 Captive

screw/fan housing

8-32 Captive

screw/Enhance monitor

8-32 Captive

screw/fan housing

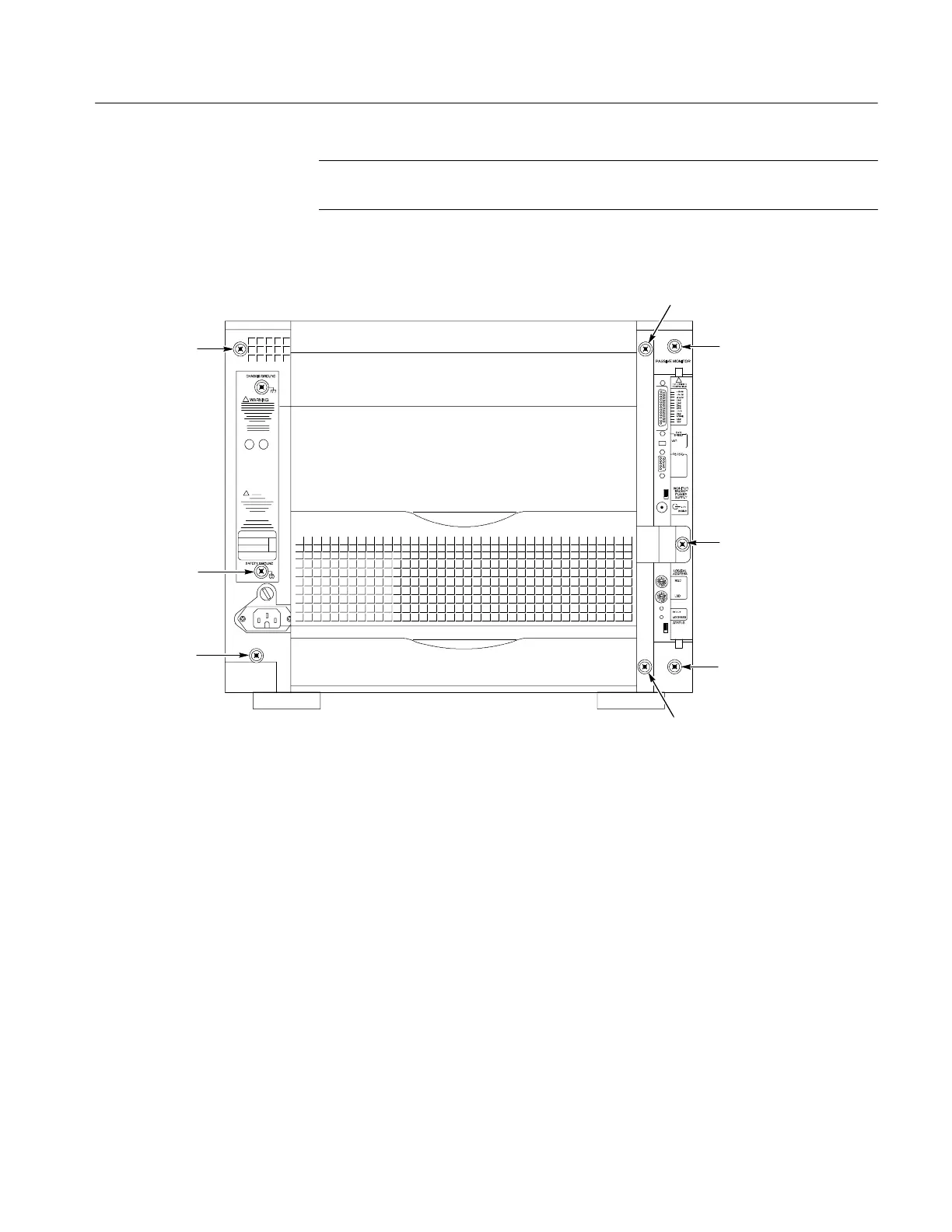

Figure 9: Location of blower assembly screws
