Getting Acquain
ted with Your Instrument

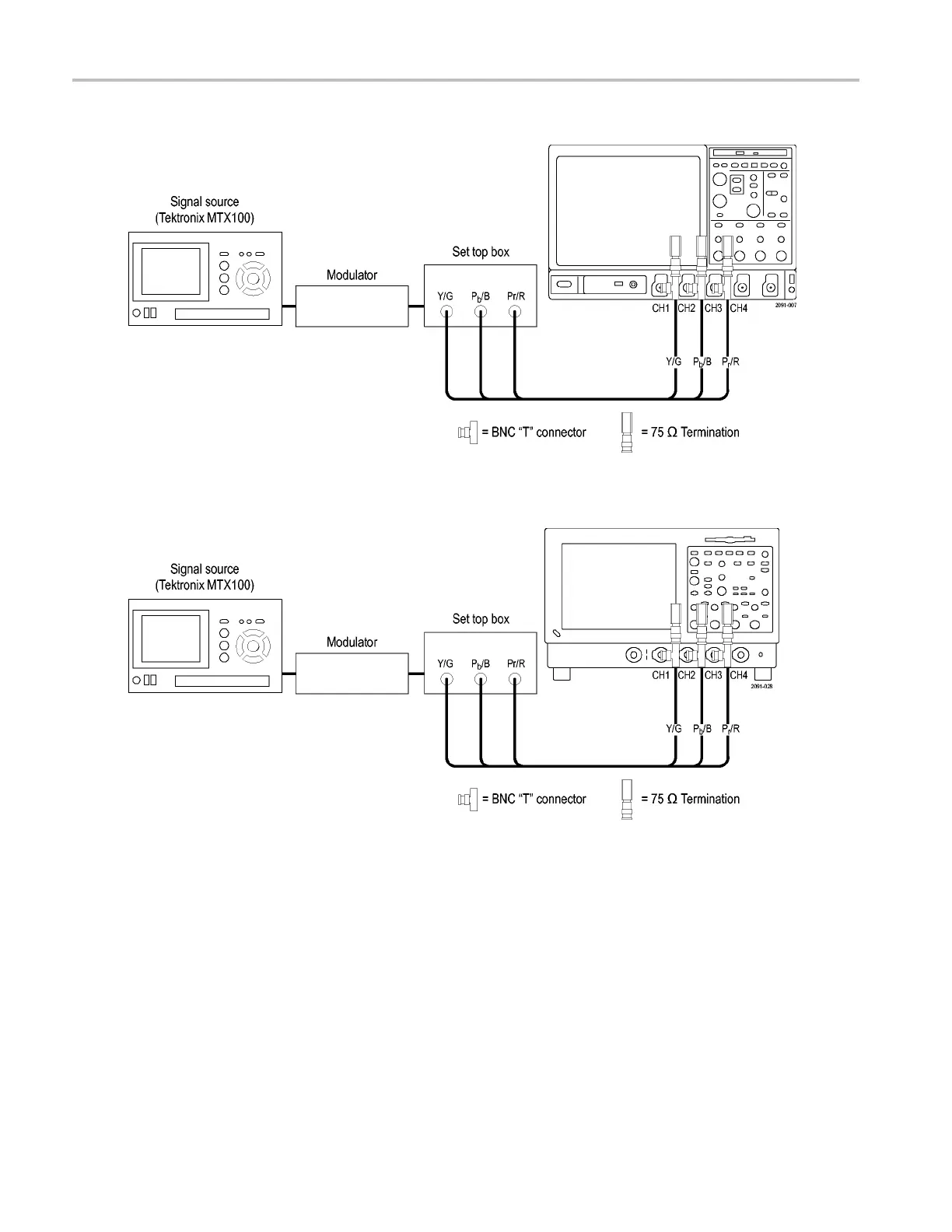

Connecting to a VM6000 / DPO7000 Series Instrument.
Connectin
g to a VM5000 / TDS5000 Series Instrument.
Optio
n SD/HD Setup 3 - Four-Wire Analog Video with Separate Composite S ync
Use this s etup for testing 4-wire component analog video signals (Y/G, Pb/B, Pr/R) with the composite sync signal on a
separate o utput line. For CH4 only, you can connect the signal without using a termination or you can use a 75 Ω termination
of lower accuracy than the 75 Ω terminations that are provided with the instrument.
12 VM Series Video Measurement System Quick Start User Manual
