Monitor Dolby-B
ased Surround Sound

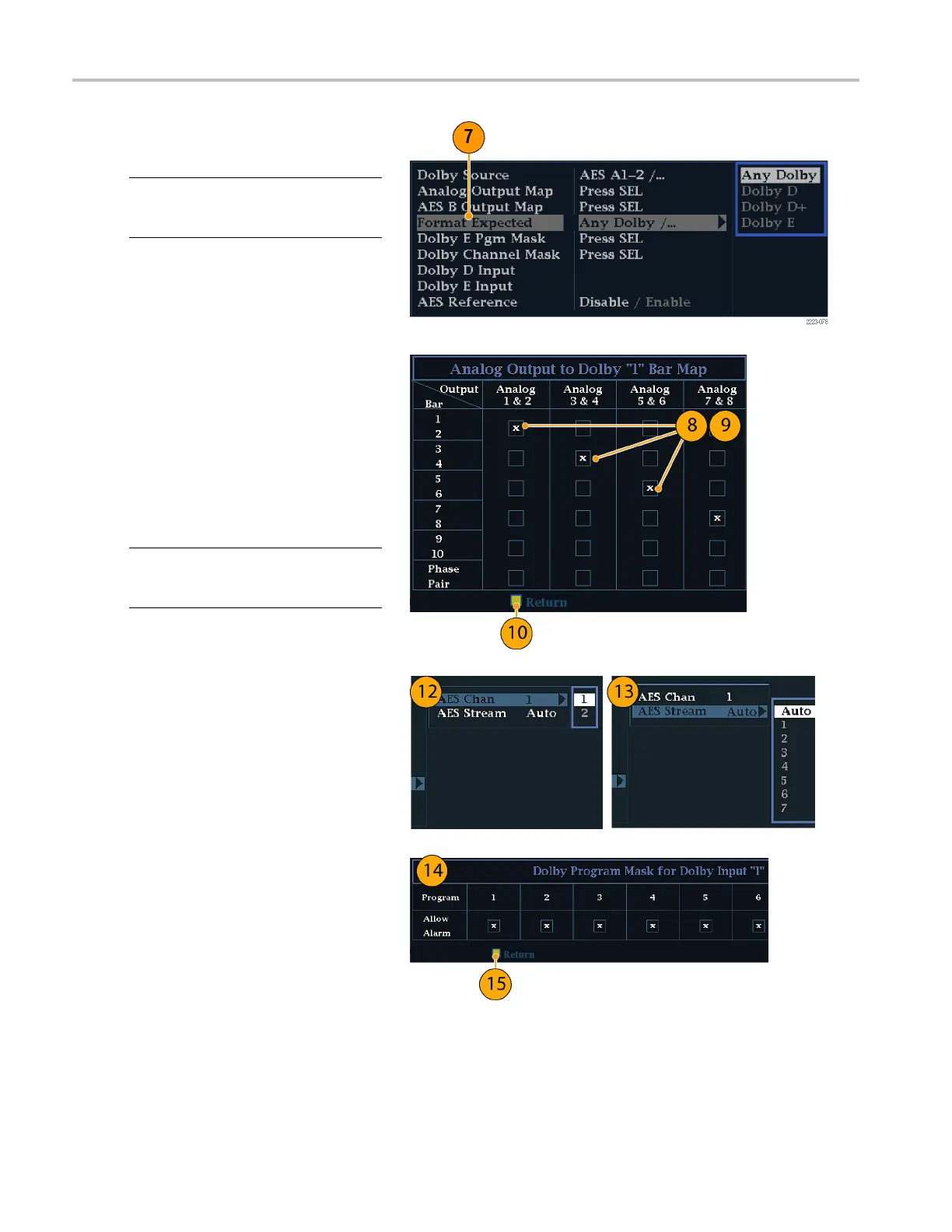

7. Select Format Expected and choose
the format condition that, when missing,
triggers the D
olby Format Alarm.
NOTE. The instrument auto-selects and
decodes the Dolby Format, depending on
the Dolby opt
ion installed.
8. Select Analog Output Map and specify
which inputs (if any) are routed to the
analog outputs in the map that appears.
(Map shown right.)
9. Select the AES B Output Map and
assign specific bar pairs to the AES B
outputs in the map that appears. (The
AES B bank must be configured as
outputs.) (Map similar to that shown
right.)
NOTE. When a Dolby input is active,
channel labels (L, R, Ls, and so on) appear
in addition to the channel numbers.
10. S e lect box to close maps.
11. Select Dolby D Input and select the
AES cha
nnel for Dolby content in which
the subframes carry two Dolby streams
(in Dolby Professional 16-bit mode).
12. Select Dolby D Input and select the
strea
m for Dolby Content in which there
can be multiple Dolby Digital streams
embedded.
13. Select Dolby E Pgm Mask (Dolby E
Program Mask), and navigate to each
box for each program. Press the SEL
key to toggle to Allow Alarm (X) or not
(blank).
14. S elect this box to close the map.
104 Waveform Monitors Quick Start User Manual
