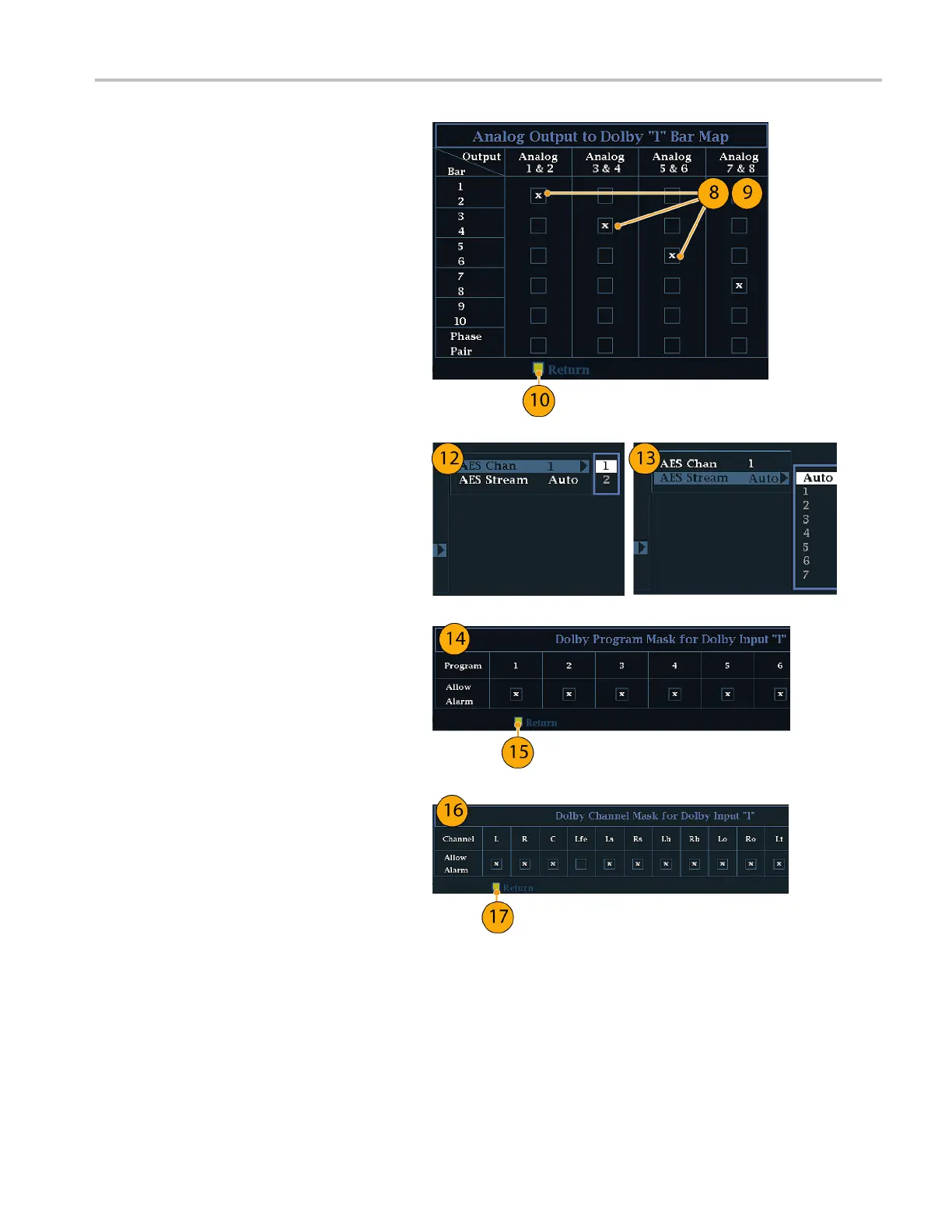

8. Select Analog Output Map and specify
which inputs (if any) are routed to the
analog output
s in the map that appears.
(Map shown right.)
9. Select the AES B Output Map and
assign specific bar pairs to the AES B
outputs in the
map that appears. (The
AES B bank must be configured as
outputs.) (Map similar to that shown
right.)
NOTE. When a Dolby input is active,
channel labels (L, R, Ls, and so on) appear
in addition t
o the channel numbers.
10. Select box to close maps.
11. Select Dolby D Input and select the
AES channel for Dolby content in which
the subframes carry two D olby streams
(in Dolby Professional 16-bit mode).
12. Select Dolby D Input and select the
stream for Dolby Content in which there
can be multiple Dolby Digital streams
embedded.
13. Select Dolby E Pgm Mask (Dolby E
Program
Mask), and navigate to each
box for each program. Press the SEL
key to toggle to Allow Alarm (X) or not
(blank)
.
14. Select t
his box to close the map.
15. Select Dolby C han Mask, and choose
which Dolby channels (L, R, C, Lfe, and
so on) can trigger alarms based on the
decoded content.
16. Select the box to close the map.
Waveform Rasterizers Quick Start User Manual 95
