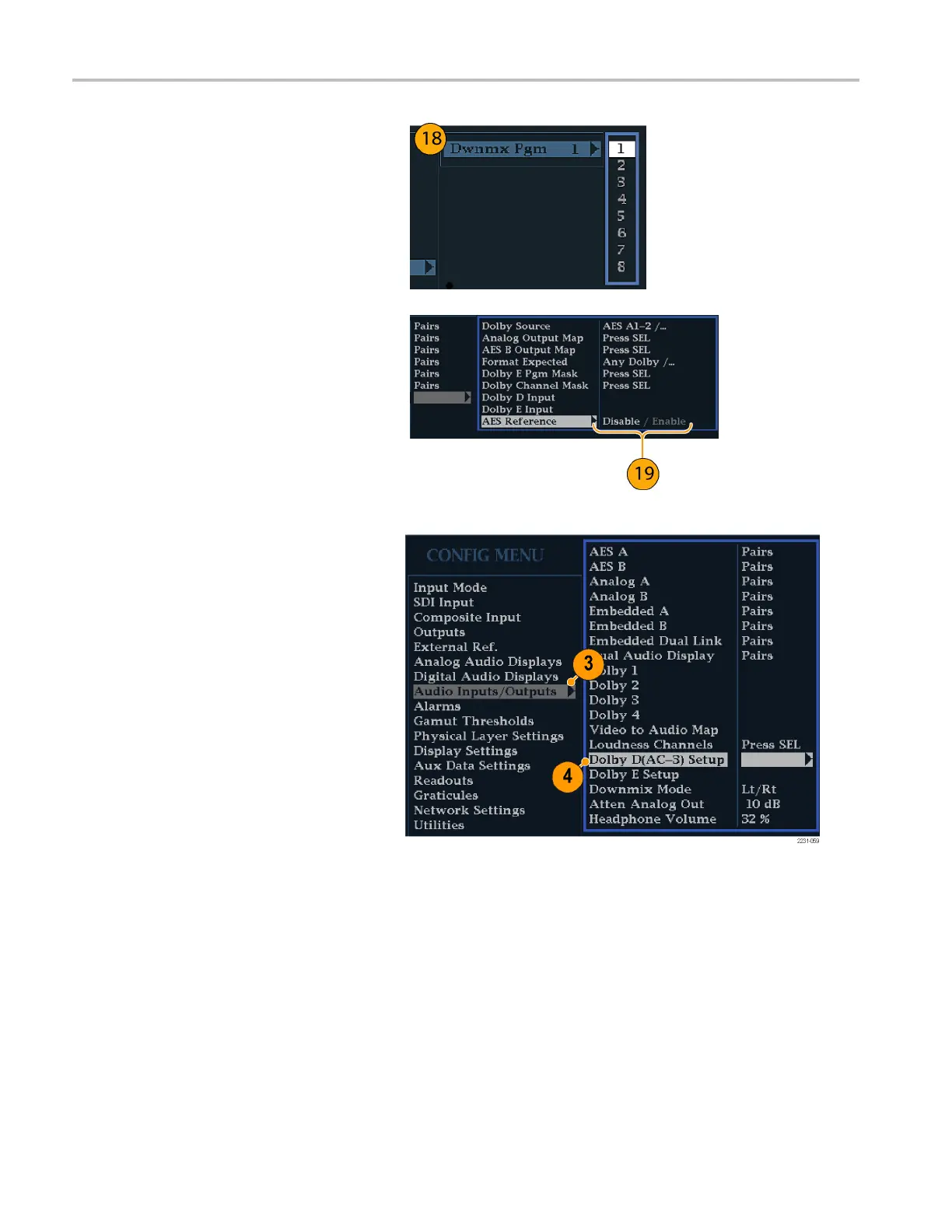

17. Select Dolby E Input, and select the
program from which the downmix is
derived.
NOTE. Although 8 programs are listed,
the number active depends on the Dolby
E Program Confi
guration detected in the
metadata of the Dolby input. (See page 105,
Audio Bar Mapping vs. Dolby E Metadata
Program Confi
guration.)
18. Set AES Ref Enable to Disable or
Enable. If enabled, and the D olby
Source is se
t to an AES input, the
instrument triggers the AES Frame Sync
Alarm if the AES input is not locked to
the AES refe
rence.
19. Repeat step
s 4 through 18 for other
Dolby inputs as needed.
To Set Up D
olby Global Parameters
Do the following steps to set parameters
that apply to all four Dolby inputs:
1. Press the CONFIG button to display the
Configuration menu.
2. Use the arrow keys and SEL button to
set the menu in the steps that follow.
3. Select Audio Inputs/Outputs.
4. Select Dolby D (AC - 3) Setu p and make
the following settings. The settings
will apply to the input when Dolby D is
detected for Dolby inputs.
96 Waveform Rasterizers Quick Start User Manual
