Monitoring Clos
ed Captioning (CC), Teletext, and Safe Area Compliance
To Display Clos
ed Captioning

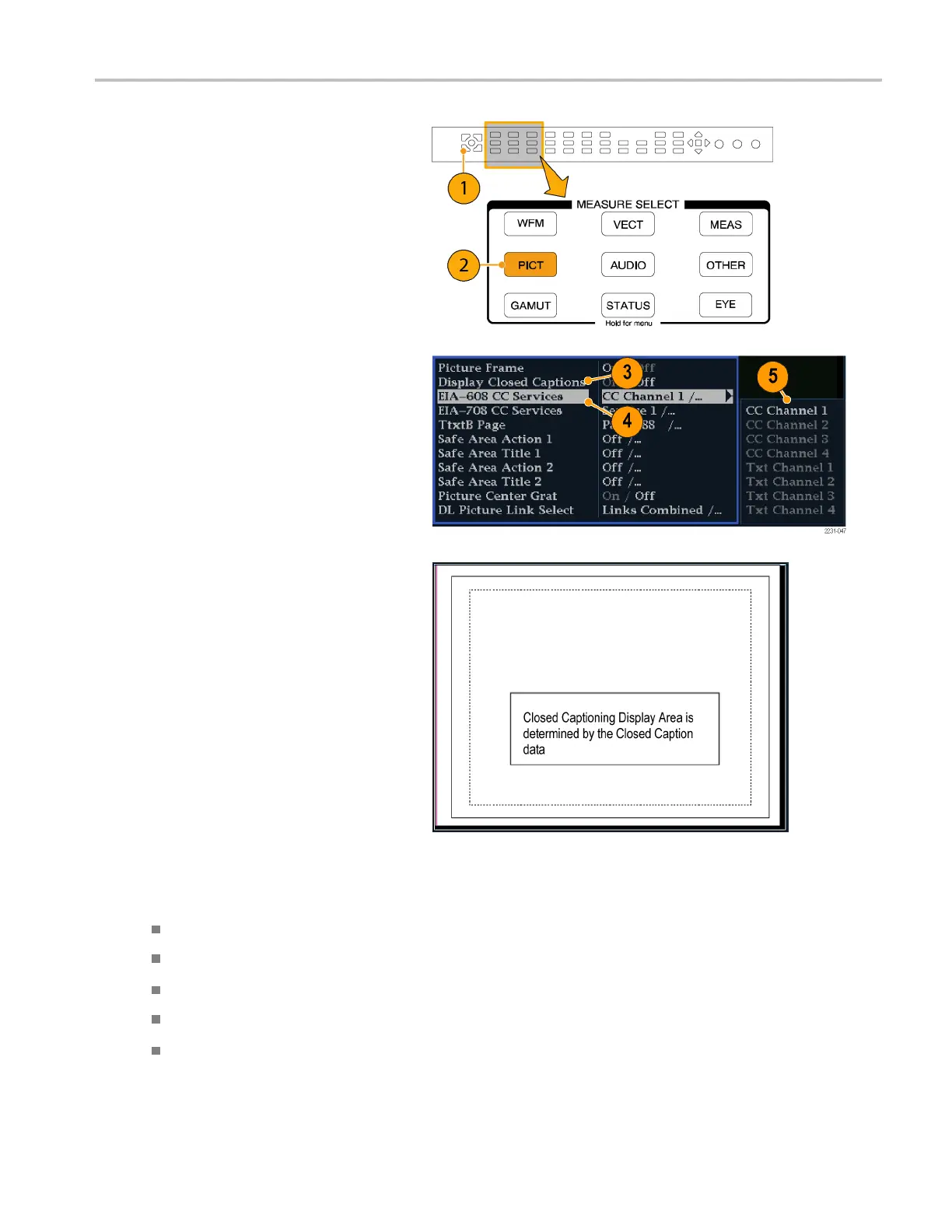

1. Select a tile.
2. Press and hold the PICT button to
display the Picture pop-up menu.
3. Select Display Closed C aption s and
toggle it to
On.
4. Select a clo
sed caption service.
5. Select the c
losed caption transport.
EIA-608 shown selected.
The Picture display includes Closed
Captioning in the area designated by the
Closed Caption data.
6. Press the PICT button again to dismiss
the Picture menu.
Usage Notes
PICT displays in individual tiles allow their Services and Pages to be selected independently.
CC text is not captured with the Picture image when using Freeze.
CC/Teletext setups are also stored w hen saved w ith Presets and restored on power up.
The C C alarms are available from the Configuration m enu in the Alarms submenu under Closed Captions/Metadata.
Teletext can be viewed as c aptions or as a w hole page.
Waveform Rasterizers Quick Start User Manual 109
