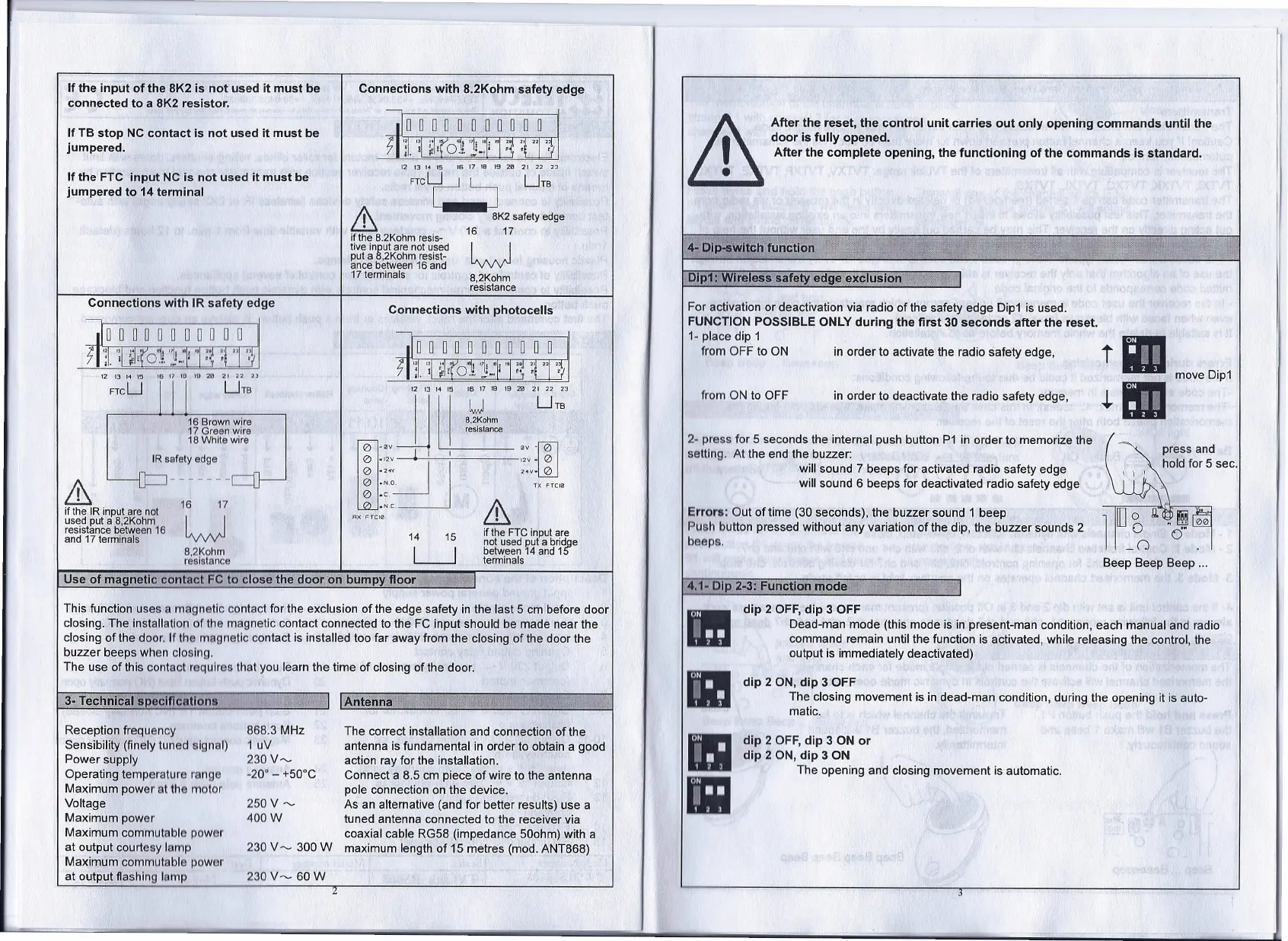

If the input of the 8K2 is not used it must be
connected to a 8K2 resistor.
If TB stop NC contact is not used it must be
jumpered.
If the FTC input NC is not used it must be
jumpered to 14 terminal
Connections with 8.2Kohm safety edge
~
Connections with IR safety edge
7
16 Brown wire
17 Green wire
18 White wire
IR safety edge
6
if the IR input are not
used put a 8,2Kohm
resistance between 16
and 17 terminals
16 17
w
8,2Kohm
reslstanee
US~~Îf"ä'gnetic contact FC to close
thecloQI-'on'bd
16 17 18 19 20 21 22 23
12
F~C'~ ~
~K2 safety edge
17
UTS
6
if the 8.2Kohm resis-
tive input are not used
pul a 8,2Kohm resist-
anee between 16 and
17 terminals
16
w
8,2Kohm
resistance
Connections with photocells
~
16 17 18 19 2B 2\ 22 23
12 IJ
1<4
15
JJ
W
UTB
8,2Kohm
reelstance
OO
'OV
.r
o ..
12'.'
1
1 12V"
0
~::~dJ
2<V;x
~mo
o
s
c.
.N.C.
6
if the FTC input are
not used put a bridge
between 14 and 10
terminals
RX FTCUil
14 15
L.J
~
Reception frequency
Sensibility (finely tuned slgnal)
Power supply
Operating temperature range
Maximum power at the motor
Voltage
Maximum power
Maximum commutable power
at output courtesy lamp
Maximum commutable powor
at output flashing lamp
868.3 MHz
1 uV
230 V .
_20· - +50·C
250 V .
400W
230 V 300 W
230 V 60 W
The correct installation and connection ofthe
antenna is fundamental in order to obtain a good
action ray for the installation.
Conneet a 8.5 cm piece of wire to the antenna
pole connection on the device.
As an alternative (and for better results) use a
tuned antenna connected to the receiver via
coaxial cable RG58 (impedance 50ohm) with a
maximum length of 15 metres (mod. ANT868)
&
After the reset, the control unit carries out only opening commands until the
'
door is fully opened.
After the complete opening, the functioning of the commands is standard.
•
•
For activation or deactivation via radio of the safety edge Dip1 is used.
FUNCTION POSSIBLE ONLY during the first 30 seconds after the reset.
1- place dip 1
from OFF to ON in order to activate the radio safety edge,
from ON to OFF
in order to deactivate the radio safety edge,
2- press tor 5 seconds the internal push button P1 in order to memorize the
setting. At the end the buzzer:
will sound 7 beeps for activated radio safety edge
will sound 6 beeps for deactivated radio safety edge
Errors: Out of time (30 seconds), the buzzer sound 1 beep
Push button pressed without any variation ofthe dip, the buzzer sounds 2
beeps.
îlll
.~.
move Dip1
Beep Beep Beep ...
4.1:bfp24~;Fpi1(;tion
1!!,f!••
I,:,;(H\t%'~f,I&.'1
dip 2 OFF, dip 3 OFF
Dead-man mode (this mode is in present-man condition, each manual and radio
command remain until the function is activated, while releasing the control, the
output is immediately deactivated)
dip 2 ON, dip 3 OFF
The dosing movement is in dead-man condition, during the opening it is auto-
matic.
dip 2 OFF, dip 3 ON or
dip 2 ON, dip 3 ON
The opening and dosing movement is automatic.
This function uses a magnetlc contact for the exclusion of the edge safety in the last 5 cm befare door
dosing. The instalIation of the magnetic contact connected to the Fe input should be made near the
dosing of the door. If the magnetic contact is installed toa far away from the dosing of the door the
buzzer beeps When dosing.
The use of this contaot requlres that you learn the time of dosing of the door.
