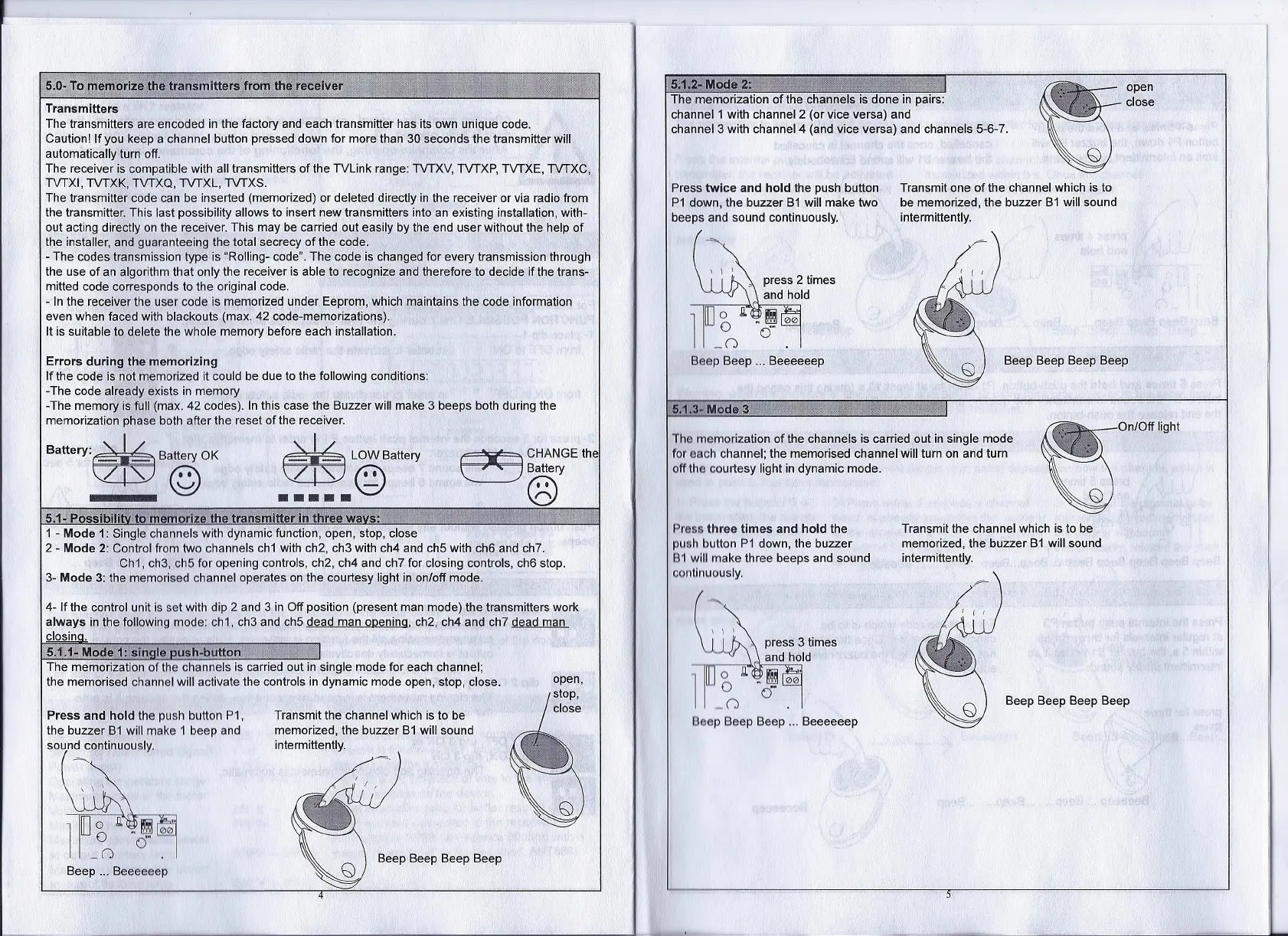

Transmitters
The transmitters are encoded in the factory and each transmitter has its own unique code.
Caution! If you keep a channel button pressed down for more than 30'seconds the transmitter wil!
automatically turn oft.
The receiver is compatible with all transmitters of the TVLink range: TVTXV, TVTXP, TVTXE, rvrXC,
TVTXI, TVTXK, TVTXQ, TVTXL, TVTXS.
The transmitter code can be inserted (memorized) or deleted directly in the receiver or via radio from
the transmitter. This last possibility allows to insert new transmitters into an existing installation, with-
out acting directly on the receiver. This may be carried out easily by the end user without the help of
the instalIer, and guaranteeing the total secrecy of the code.
- The cocles transmission type is "Rolling- code". The code is changed for every transmission 'through
the use of an algorithm that only the receiver is able to recognize and therefore to decide if the trans-
mitted code corresponds to the original code.
- In the receiver the user code is memorized under Eeprom, which maintains the code information
even when faced with blackouts (max. 42 code-memorizations).
It is suitable to delete the whole memory before each installation. ,
Errors durlnq the memorizing
lf
the code is not memorized it could be due to the following conditions:
-The code already exists in memory
-The memory is full ~max. 42 codes). In this case the Buzzer wil! make 3 beeps both during the
rnernorization phase both after the reset of the receiver.
B_""~
Battery
OK ~ LOWB,
tte ~
.©
ê
•••••
~ CHANGE thel
~Battery
®
Ilt•••
~.tt,;.mêmG~ïiê··th'éj!t~illill:l:ftlmi_R:lwäl
illili
1 - Mode 1: Single channels with dynamic function, open, stop, Close
2 - Mode 2: Control from two channels ch1 with ch2, ch3 with ch4 and ch5 with ch6 and ch7.
Ch1, ch3, ch5 for opening controls, ch2, ch4 and ch7 for closing controls, ch6 stop.
3- Mode 3: the memorised channel operates on the courtesy light in on/oft mode.
4- If the control unit is set with dip 2 and 3 in Off position (present man mode) the transmitters work
always in the following mode: eh1, ch3 and ch5 dead man opening, ch2, eh14and eh7 dead man
nale
IDl!Ish·buttQt\
The memorization of the ehannels is carried out in single mode for each channel;
the memorised ehannel will activate the controls in dynamic mode open, stop, close.
Press and hol'd the push button P1,
the buzzer B1 will make 1 beep and
sound continuously.
Transmit the channel which is to be
memorized, the buzzer B1 wil! sound
intermittently.
Beep Beep Beep Beep
The memorization of the channels is done in pairs:
channel1 with channel 2 (or vice versa) and
channel 3 with channel4 (and vice versa) and channels 5-6-7.
Press twiee and hold the push button
P1 down, the buzzer B1 wil! make two
beeps and sound continuously.
5.1.3- M:Q
open
close
Transmit one of the channel which is to
be memorized, the buzzer B1 will sound
intermittently.
The memorization of the ehannels is carried out in single mode
for each channel; the memorised ehannel wil! turn on and turn
oft the courtesy light in dynamic mode .
Press three times and hold the
push button P1 down, the buzzer
B1 wlll make three beeps and sound
contlnuously.
o
o
_n
ep Beep Beep ... Beeeeeep
Beep Beep Beep Beep
On/Oft light
Transmit the channel which is to be
memorized, the buzzer B1 will sound
intermittently.
Beep Beep Beep Beep
