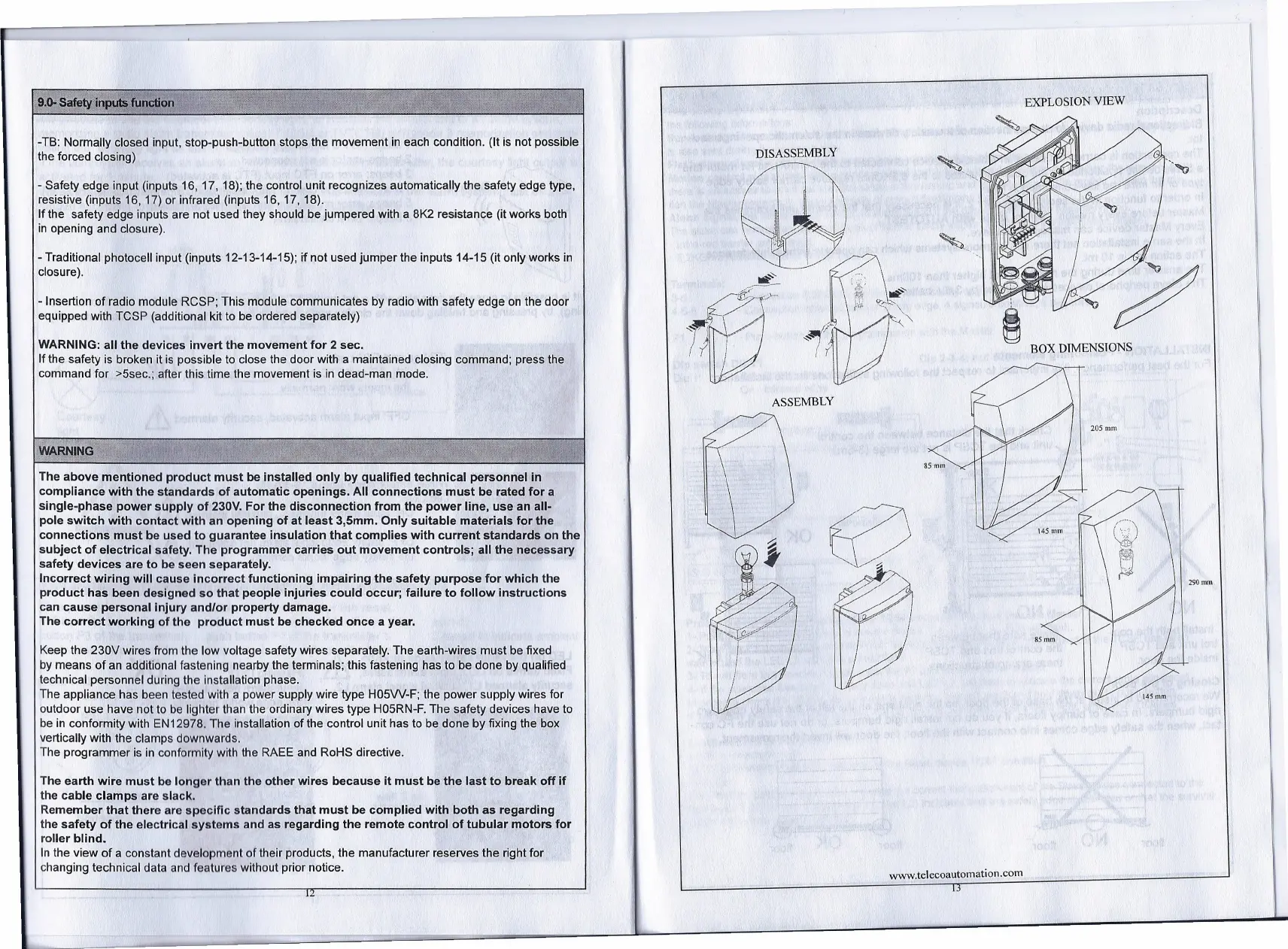

-TB: Normally closed input, stop-push-button stops the movement in each condition. (It is not possible
the forced closing)
- Safety edge input (inputs 16, 17, 18); the control unit recognizes automatically the safety edge type,
resistive (inputs 16,17) or infrared (inputs 16, 17, 18).
If the safety edge inputs are not used they should be jumpered with a 8K2 resistance (it works both
in opening and closure).
- Traditional photocell input (inputs 12-13-14-15); if not used jumper the inputs 14-15 (it only works in
closure).
- Insertion of radio module RCSP; This module communicates by radio with safety edge on the door
equipped with TCSP (additional kit to be ordered separately)
WARNING: all the devices invert the movement for 2 sec.
If the safety is braken it is possible to close the door with a maintained closing command; press the
command for >5sec.; after this time the movement is in dead-man mode.
The above mentioned product must be installed only by qualified technical personnel in
compliance with the standards of automatic openings. AII connections must be rated for a
single-phase power supply of 230V. For the disconnection from the power line, use an all-
pole switch with contact with an opening of at least 3,5mm. Only suitable materials for the
connections must be used to guarantee insulation that complies with current standards on the
subject of electrical safety. The programmer carries out movement controls; all the necessary
safety devices are to be seen separately.
Incorrect wiring wiJl cause incorrect functioning impairing the safety purpose for which the
product has been designed
50
th at people injuries could occur; failure to follow instructions
can cause personal injury and/or property damage.
The correct working of the product must be checked once a year.
Keep the 230V wires
fram
the low voltage safety wires separately. The earth-wires must be fixed
by means of an additional fastening nearby the terminals; this fastening has to be done by qualified
technical personnel during the installation phase.
The appliance has been tested with a power supply wire type H05W-F; the power supply wires for
outdoor use have not to be lighter than the ordinary wires type H05RN-F. The safety devices have to
be in conformity with EN12978. The installation of the control unit has to be do ne by fixing the box
vertically with the clamps downwards.
The pragrammer is in conformity with the RAEE and RoHS directive.
The earth wire must be longer than the other wires because it must be the last to break oft if
the ca bie clamps are slack.
Remember that there are specIfic standards that must be complied with both as regarding
the safety of the electrical systems and as regarding the remote control of tubular motors for
roller blind.
In the view of a constant development of their praducts, the manufacturer reserves the right for
changing technical data and features without prior notice.
DISASSEMBLY
w;j'
r~r
ASSEMBLY
••
~\L
./(/\
\\l \
tl~
~.J~
'f:
À~'
.>
6
/
-:
'~
~
EXPLOSION VIEW
,
'., -c
.:
BOX DTMENSlONS
85mm
www.telecoautomation.com
"'""
290
rnm
To Next Page
