ME910C1 HW User Guide
1VV0301351 Rev.8 Page 27 of 99 2018-09-28

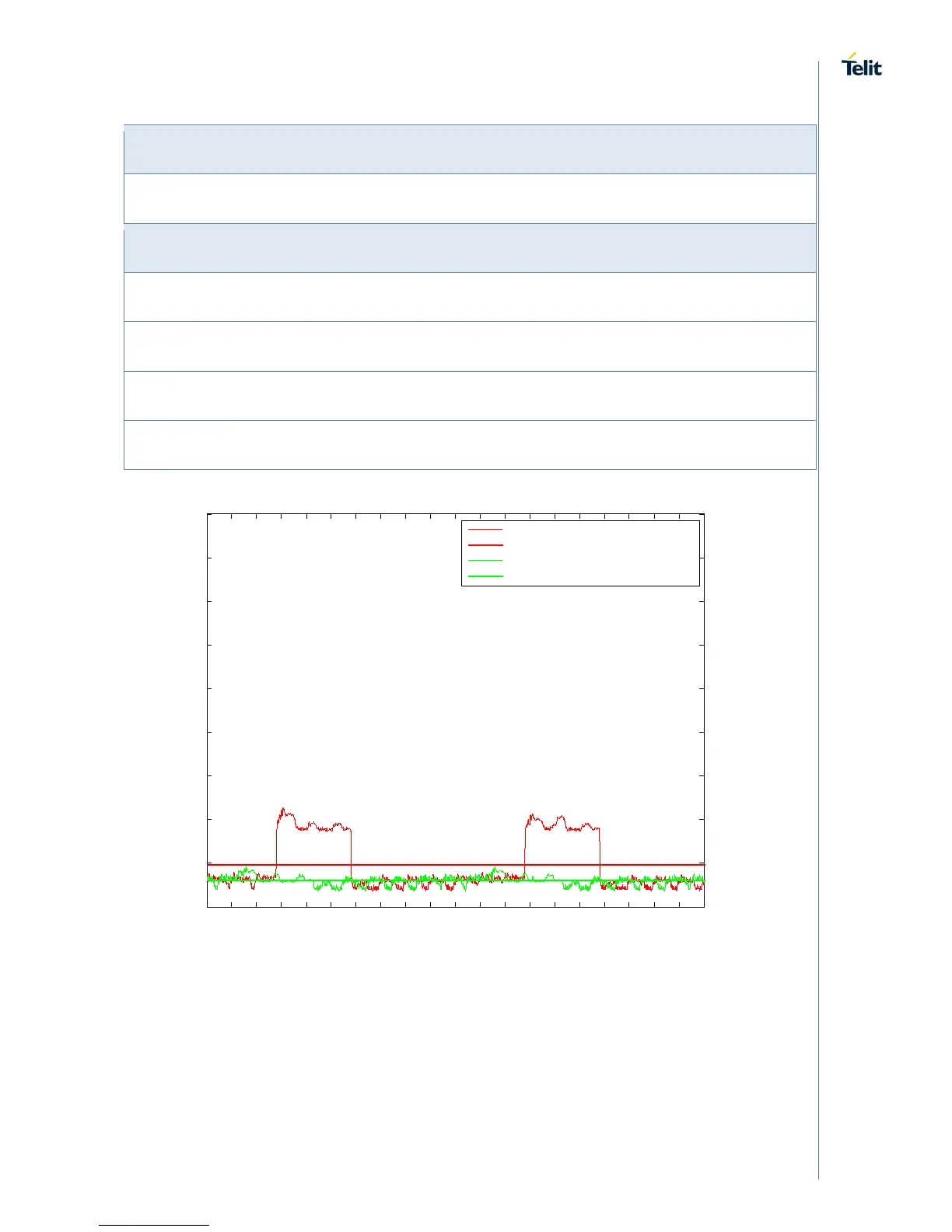

Current consumption profile of Vbatt + Vbatt_PA in LTE CAT M1 mode with max thought-
put configuration. LTE NB1 mode has a similar current consumption profile.
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
0
200
400
600
800
1000
1200
1400
1600
1800
Current Profile at Max Power (23 dBm)
Average Value at Max Power
Current Profile at Low Power (<0 dBm)
Average Value at Low Power
PSM Mode
AT+CPSMS=1 0.008mA No current source or sink by any connected pin
GPS
GNSS 29 mA GNSS Standalone 1Hz Acquisition ( Non-Dpo)
GNSS 30 mA GNSS Standalone 1Hz Tracking ( Non-DPO)
GPS 28 mA GPS Standalone 1Hz Acquisition ( Non-Dpo)
GPS 29 mA GPS Standalone 1Hz Tracking ( Non-DPO)
