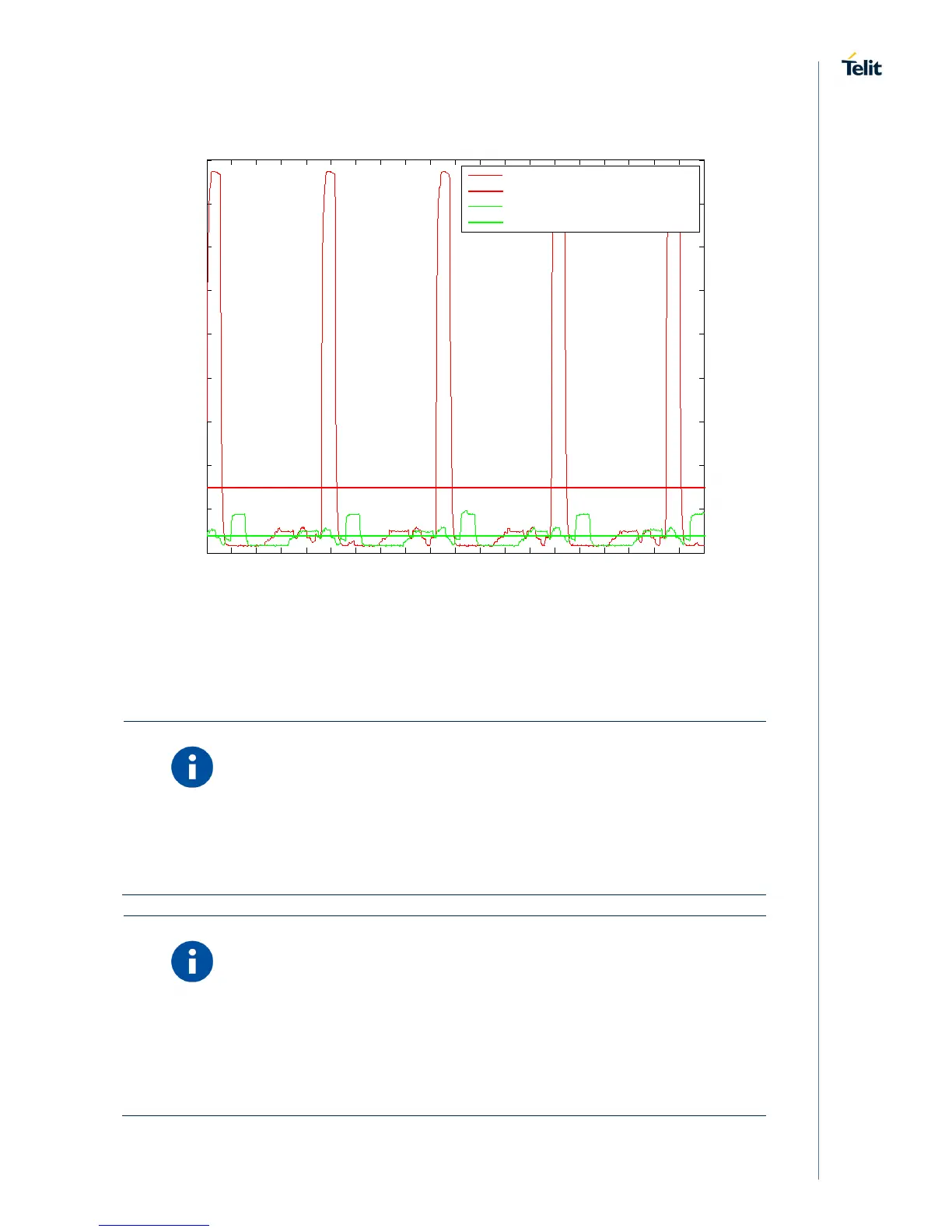

Current consumption profile of Vbatt + Vbatt_PA in GPRS mode with 1TX+1RX
configuration
NOTE: The reported LTE CAT M1 values are an average among all
the product variants and bands for each network wireless technology.
The support of specific network wireless technology depends on
product variant configuration.
0
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
0
200
400
600
800
1000
1200
1400
1600
1800
Current Profile at Max Power (33 dBm)
Average Value at Max Power
Current Profile at Low Power (< 0 dBm)
Average Value at Low Power
NOTE: The electrical design for the Power supply should be made
ensuring it will be capable of a peak current output of at least:
0.6 A for LTE mode (3.80V supply).
2A for GPRS mode (3.80V supply).
